214 Upgrade and Maintenance Manual
TX1310 M1
System board and components

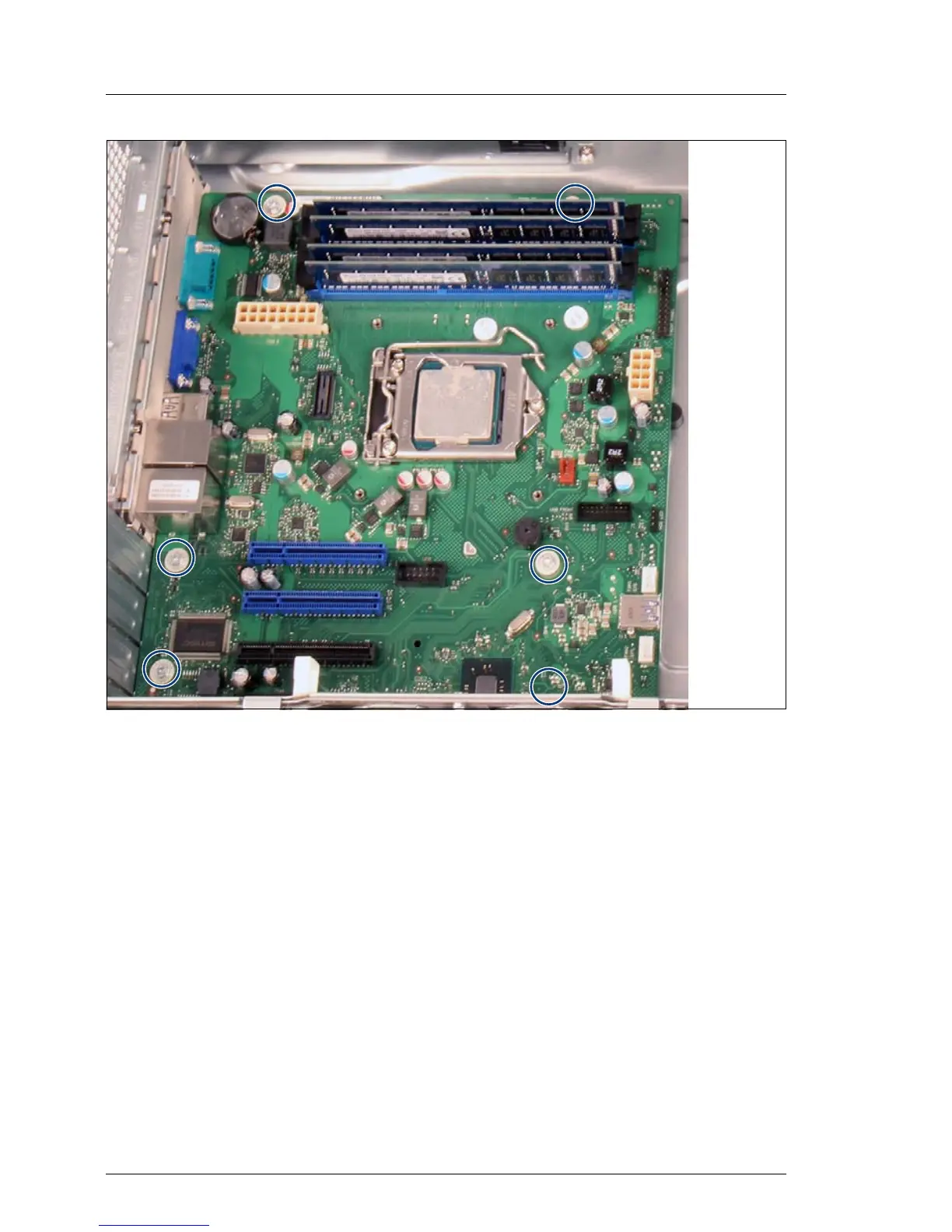

Figure 158: Securing the system board
Ê Secure the system board with six screws (see circles).
I Screw torque: 0.6 Nm (not applicable for the Japanese market)
Tighten the screws in a cross diagonal pattern.
