TX1310 M1
Upgrade and Maintenance Manual 45
Basic hardware procedures

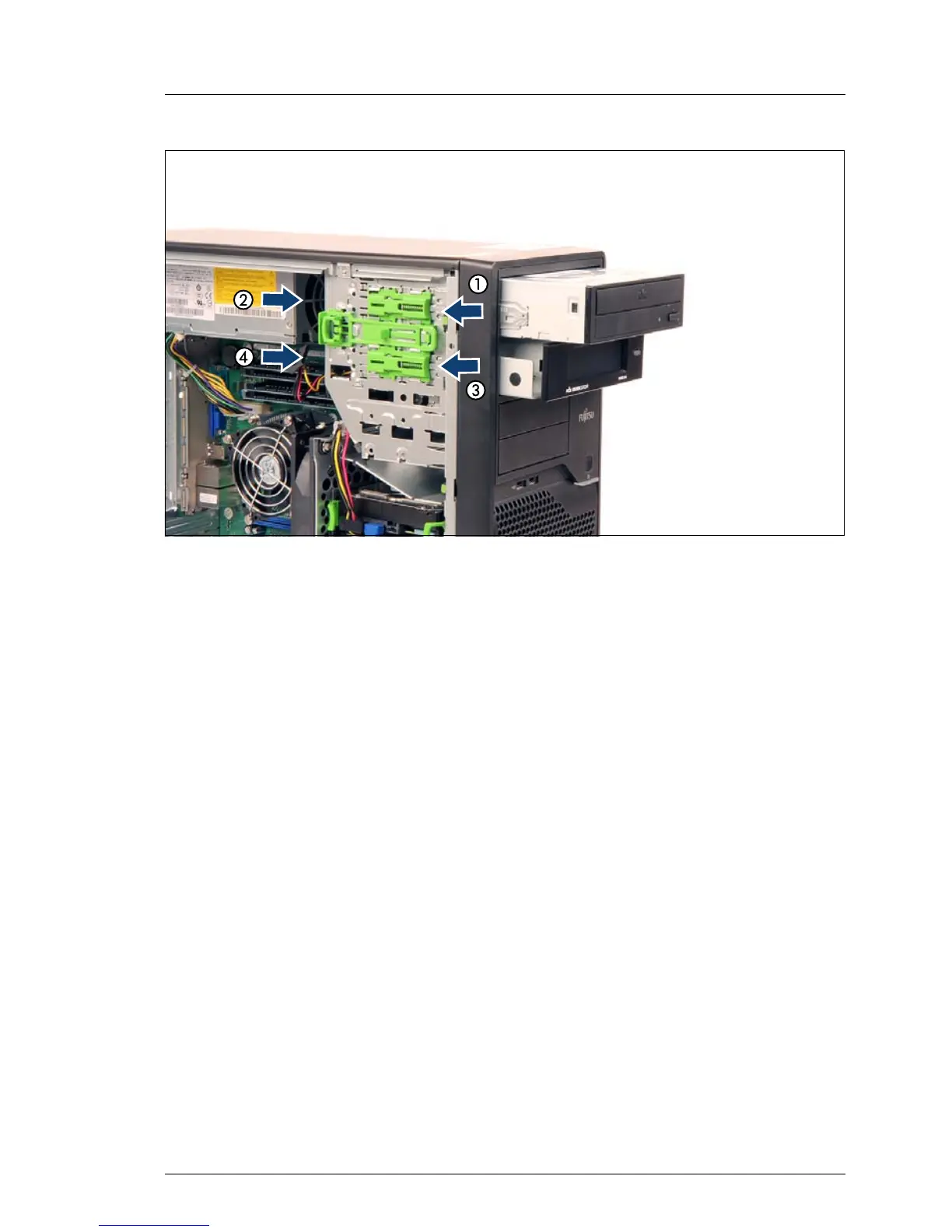

Figure 7: Removing the optical disk drive and the backup drive
Ê Press the locking latch in the direction of the arrow (1) and press out the
optical disk drive from behind (2).
Ê Remove the optical disk drive out of its bay.
Ê Press the locking latch in the direction of the arrow (3) and press out the
backup drive from behind (4).
Ê Remove the backup drive out of its bay.
