TX1310 M1
Upgrade and Maintenance Manual 57
Basic hardware procedures

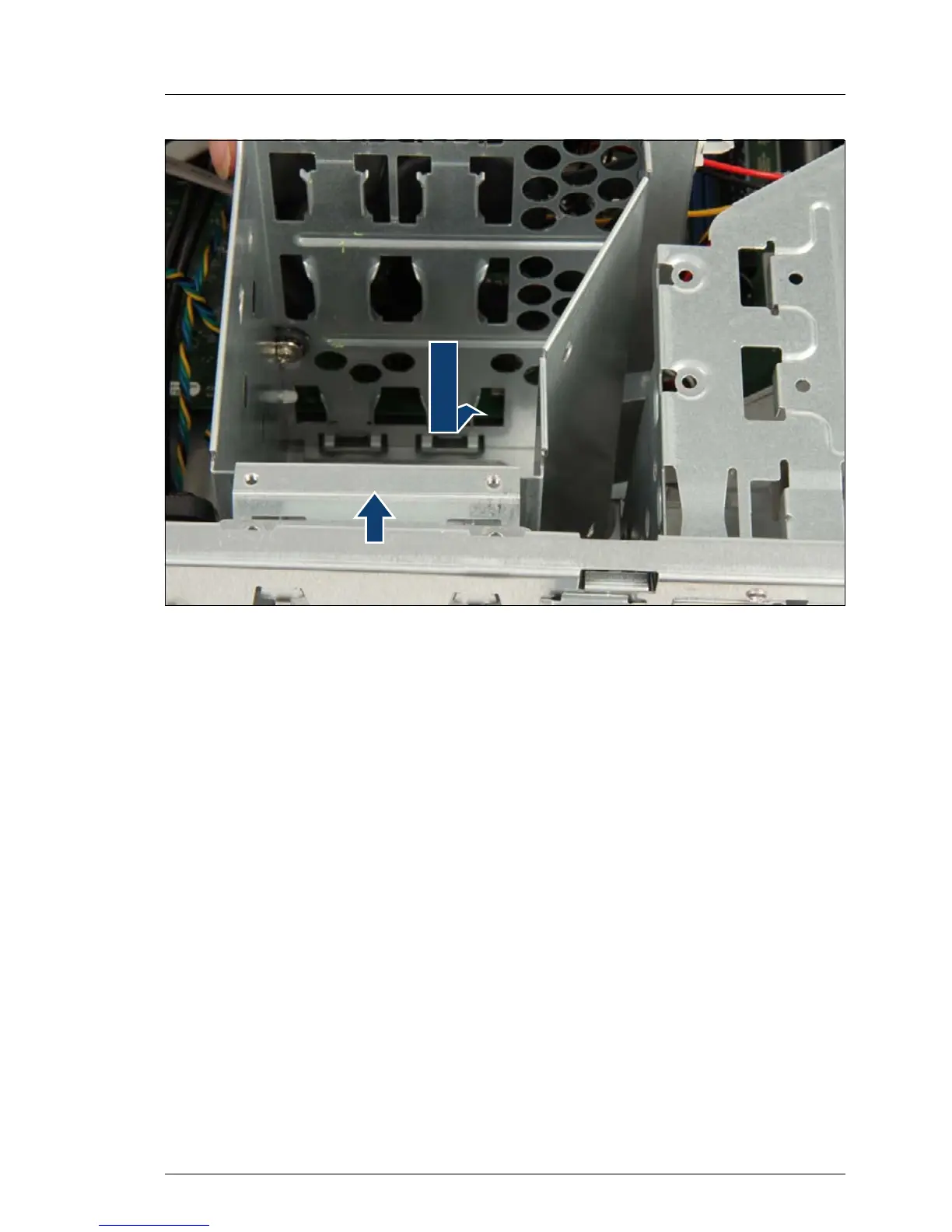

Figure 18: Lifting up the HDD cage
Ê Push down the HDD cage to release it (1).
Ê Push the HDD cage inwards (2).
Ê Carefully lift up the HDD cage (3).
I First, disconnect the fan cable which is located under the fan before you
lift up the HDD cage out of the chassis.
