Chapter 9: Image Management
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 9-4
Operator Manual © 2008 General Electric Company. All rights reserved.

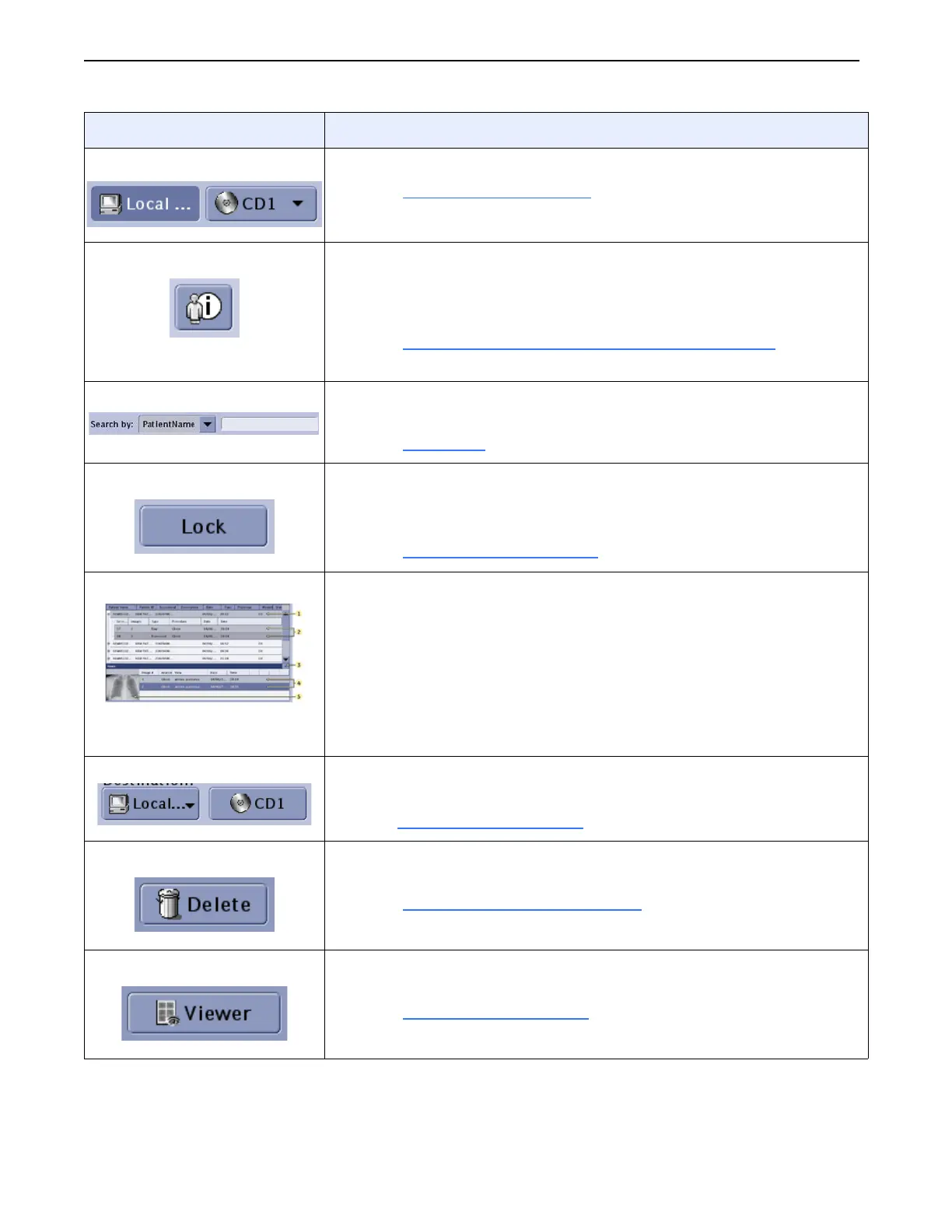

source locations Selects the source of images to view (e.g., the local unit or a CD).
Refer to Open Exams and Images
(p. 9-8) for more information.
[PATIENT INFORMATION] Shows the Patient Information screen for the selected procedure.
NOTE: Patient Information cannot be edited once an exam has
started.
Refer to Chapter 5:
Worklist-Add / Edit Patient Information (p. 5-15)
for more information.
Search by Searches for exams by sorting the selected the column (shown in the
drop-down list) and searches for text entered into the text box.
Refer to Search List
(p. 9-7) for more information.
[LOCK] or [UNLOCK] Locks the selected exams from deletion. If a locked exam is selected,
the button name changes to [UNLOCK].
[UNLOCK] removes the lock from the selected exams.
Refer to Lock Exams from Deletion
(p. 9-13) for more information.
Exam, series, and images list Lists the images saved in the local database categorized by exams
and series. The following information is displayed:
• Exams - the exams saved in the local database
• Series detail - the series for the selected exam
• Image list - the images for the selected series
• Image preview - a representative thumbnail of the selected image.
Figure 9-1 shows how the information is organized.
Destination Selects where images are to be copied or saved. The first button
switches between the local unit and any configured network hosts.
Refer to Copy Exams and Images
(p. 9-8) for more information.
[DELETE] Deletes the selected exams, series, or images from the local
database.
Refer to Delete Exams, Series, or Images
(p. 9-12) for more
information.
[VIEWER] Opens the Image Viewer screen and shows the images in the
selected series. Images may be adjusted on the Image Viewer screen.
Refer to Chapter 8:
Image Viewer for more information.
