Chapter 6: Image Acquisition
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 6-3
Operator Manual © 2008 General Electric Company. All rights reserved.

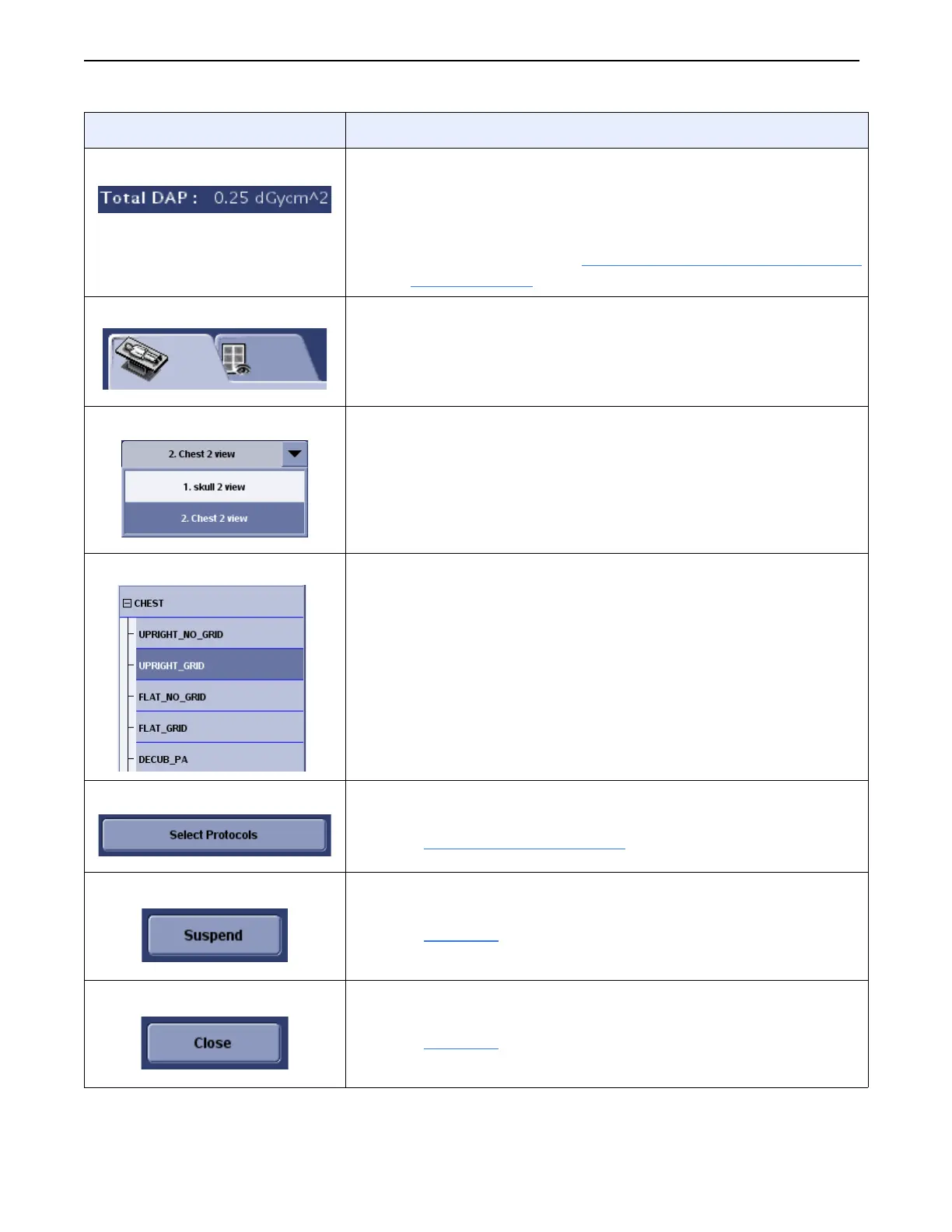

Total DAP:
Displays the entrance dose estimate multiplied by the field-of-view
area at the corresponding distance from receptor after an exposure
is taken.
NOTE: DAP is only displayed if the optional DAP meter is connected
to the system. Refer to Chapter 3:
System Overview-Options
and Accessories (p. 3-21) for more information.
screen switch tab Switches between the Acquisition and Viewer screens.
NOTE: When acquiring multiple images or if you need to retake an
image, you must switch back to the Acquisition screen in
order to record the exposure.
exam If multiple exams were selected from the Worklist, switches
between exams for protocol selection, technique adjustment, and
acquisition.
This drop-down list does not appear if a single exam was selected,
or if the exam was initiated with the Emergency Exam or Cassette
Exam buttons on the Worklist.
protocol list Lists the available views for the exam and shows which view is
currently active.
[SELECT PROTOCOLS] Brings up the Select Protocols screen to add, remove, or change
protocols.
Refer to Select or Change Protocols
(p. 6-10) for more information.
[SUSPEND] Ends the exam with the intent of continuing at a later time. Does
not initiate auto send or auto print, if enabled.
Refer to End Exam
(p. 6-16) for more information.
[CLOSE] Closes the procedure. If enabled, [CLOSE] sends billing information
to the PACS system, auto sends, and auto prints acquired images.
Refer to End Exam
(p. 6-16) for more information.
