GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
4-22 Section 4-6 - Mechanical Function Checks
Section 4-6
Mechanical Function Checks
4-6-1 Operator I/O Movement

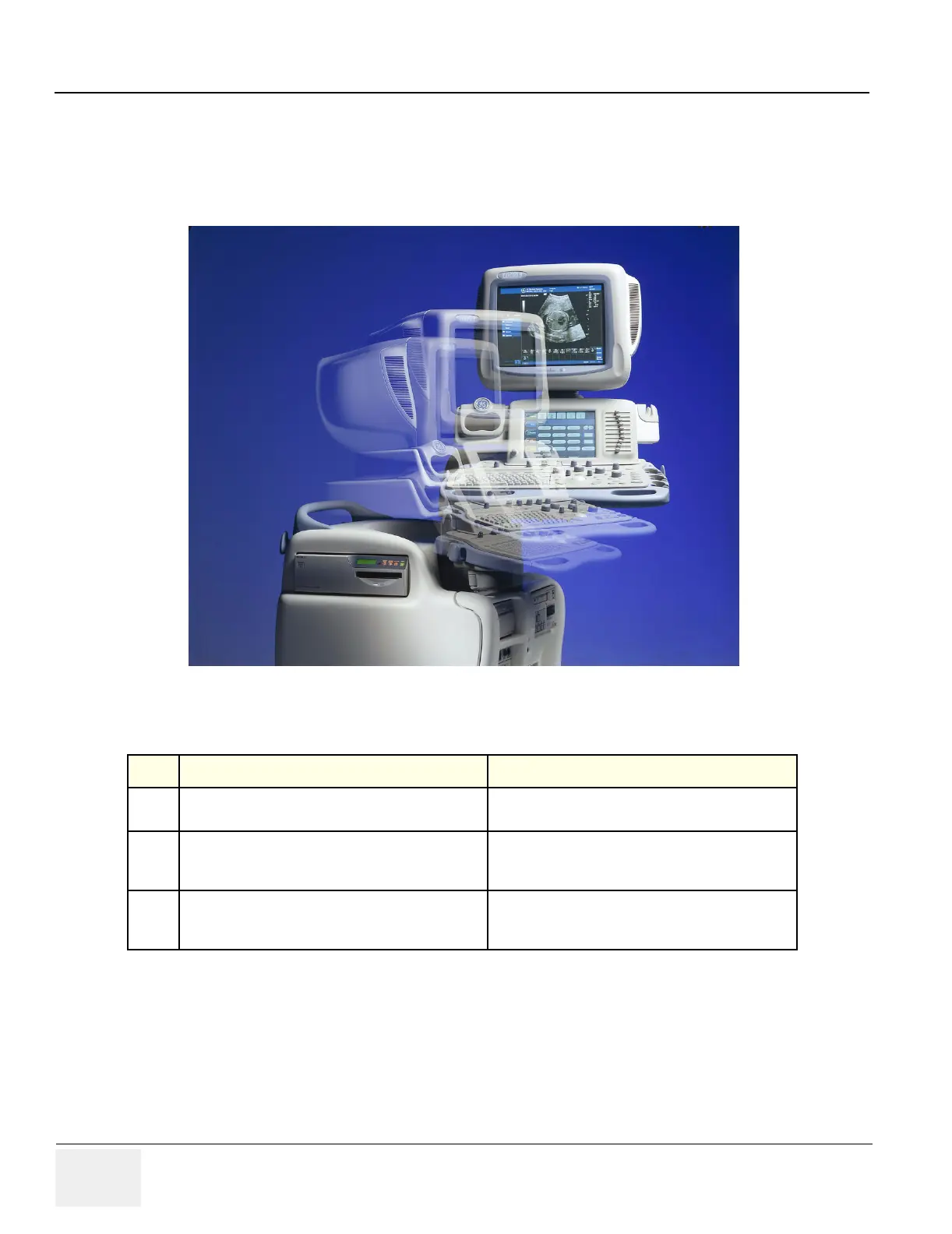

Figure 4-18
Step Task Expected Result(s)
1. Pull handle up under the platform towards you to
release horizontal lock
It is possible to maneuver the Display Platform
horizontally at present level of height
2.
Pull handle at left hand grip towards you to release
the Vertical Lock
It is possible to maneuver the Display Platform up and
down (between the vertical end stops) as long as you
pull the handle towards you
3.
Pull both handles towards you to release both
Vertical and Horizontal locks
It is possible to maneuver the Display Platform both
horizontally and vertically as long as you keep pulling
these handles towards you
Table 4-8 Display Platform Maneuverability Checks
