GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-38 Section 8-6 - BEP CD-RW Drive Replacement Procedure (BEP 2.x and above only)
8-6-6 CD-RW Drive Replacement Procedure
5.) Connect the cover fan power cable and replace the side cover from the BEP.

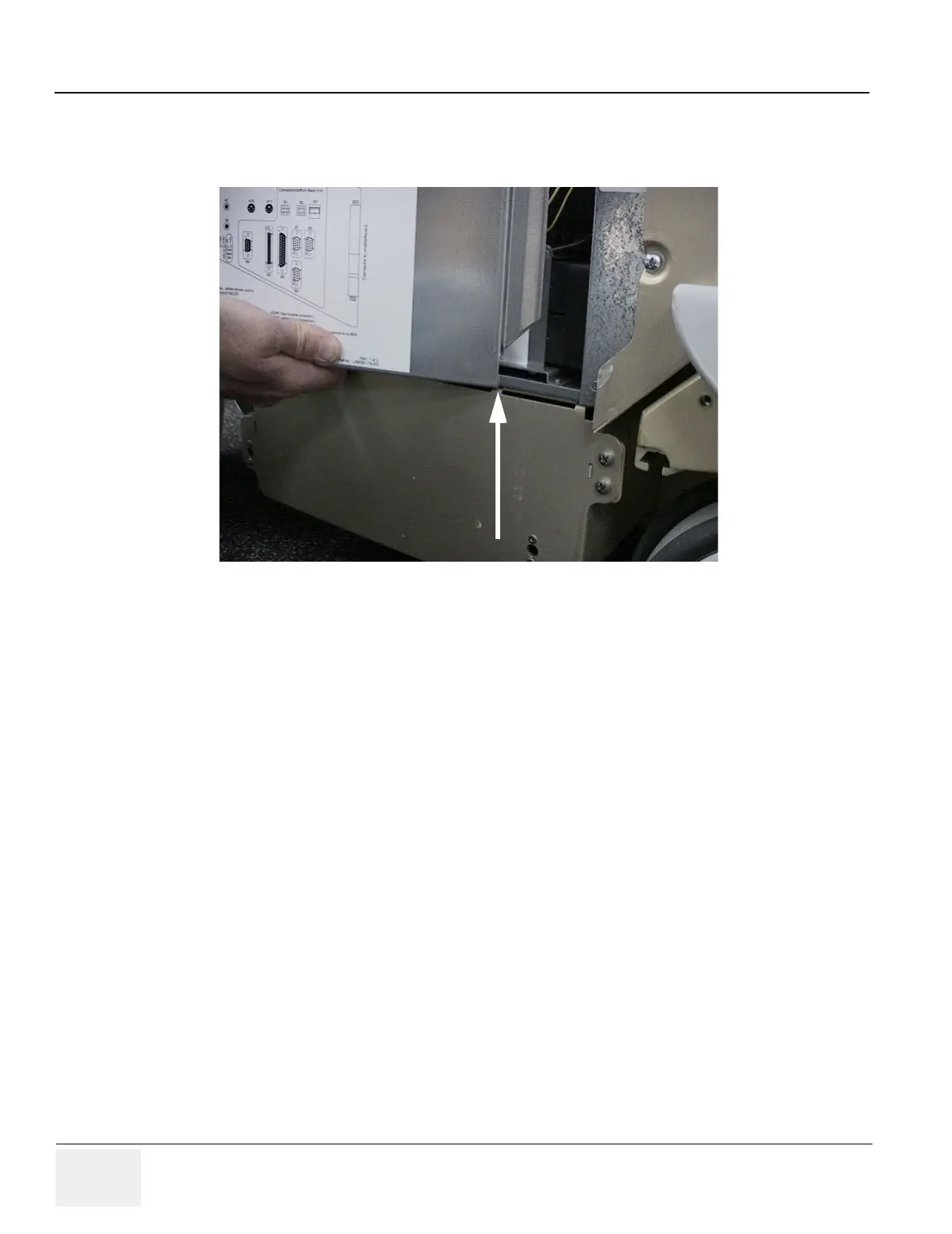

NOTE: When replacing the BEP Cover, ensure that you start it at the bottom to get the cover lip
between the BEP chassis and AC transformer cover. Slide it forward and secure it.
6.) Replace the front cover as shown in Section 8-2-5 on page 8-9.
7.) Replace the left- and/or right-side covers as shown in Section 8-2-2 on page 8-5.
8.) If required, Power On/Boot-up the system as described in Section 4-3-1 on page 4-2.
9.) Check CD-RW operation.
Figure 8-38 BEP Cover Installation Tip
To Next Page
