8-47-6 Differences in Replacing the Digital Color Printers
The major differences in the replacement of the Digital Color Printers is the rear panel cabling.
For the Sony UPD-50 there is the power cable, USB cable from USB#5 (C20) and the USB to SCSI
Adapter.
Dip switches on the back of the UPD-50 are for SCSI termintaion and SCSI ID.
- SCSI termination is set to ON
- SCSI ID should be set to OFF/OFF/ON (SCSI ID #1). SCSI ID can be set to almost any
number. Typically you avoid SCSI ID 0 which is usually the SCSI Controller.
The smaller Sony UPD-21 has only Power and the USB connection from USB#5 (C20).

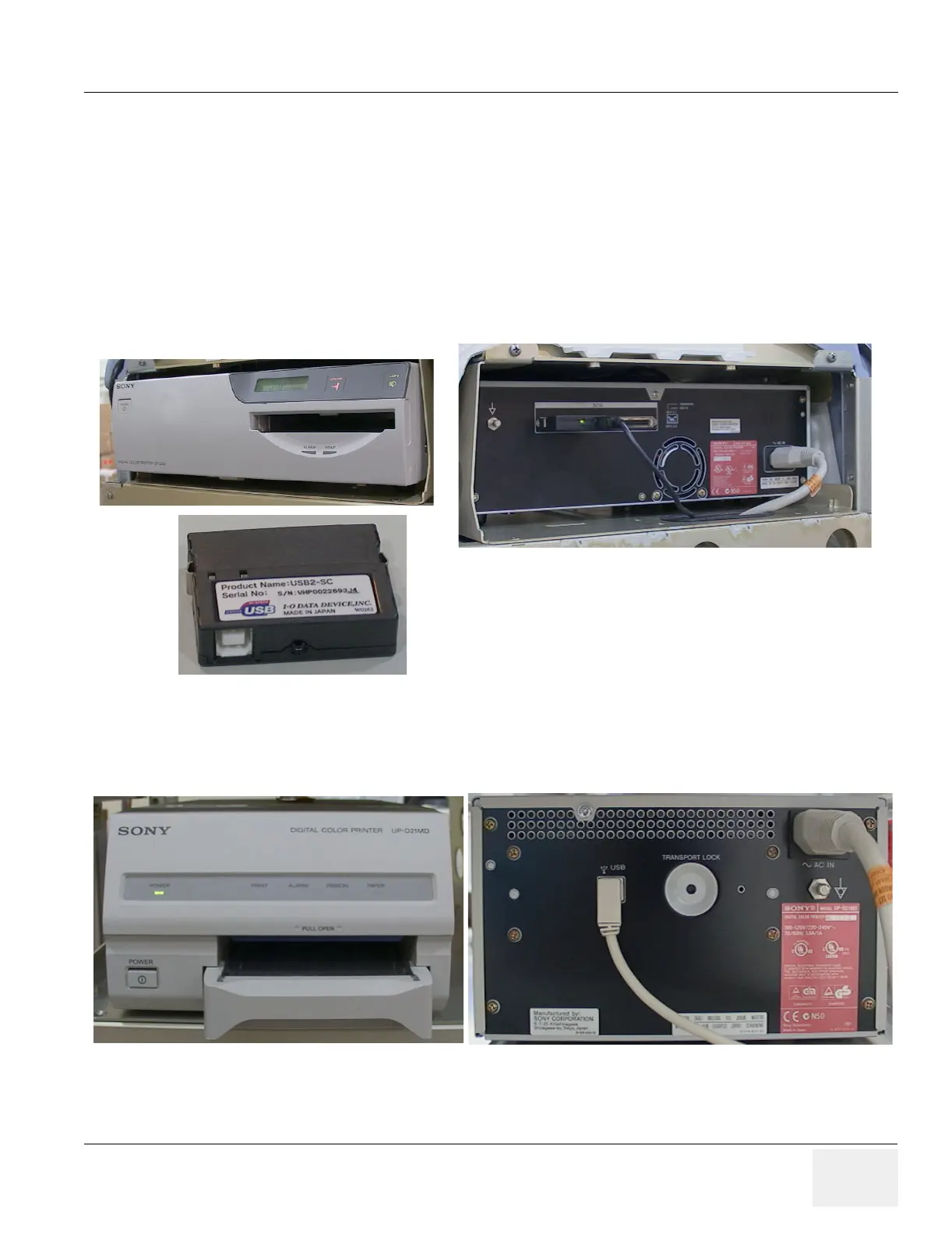

Figure 8-174 Sony UP-D50 Digital Color Printer
Figure 8-175 Sony UP-D21 Digital Color Printer
