5-50 Section 5-12 - Modem
Section 5-12
Modem
5-12-1 General Description
Multi-Tech global modem. The modem is a standard modem that connects to an analog phone line.
5-12-2 Location in the Unit
5-12-3 Inputs/Outputs
• DC Voltage from Modem Power (AC/DC Converter)
• RS232 from Backend Processor via Internal I/O and External I/O
• Analog Phone line via External I/O
5-12-4 Fuses
None
5-12-5 Jumpers and Dip-switches
None
5-12-6 LEDs
The Modem has 10 LEDs on its front.

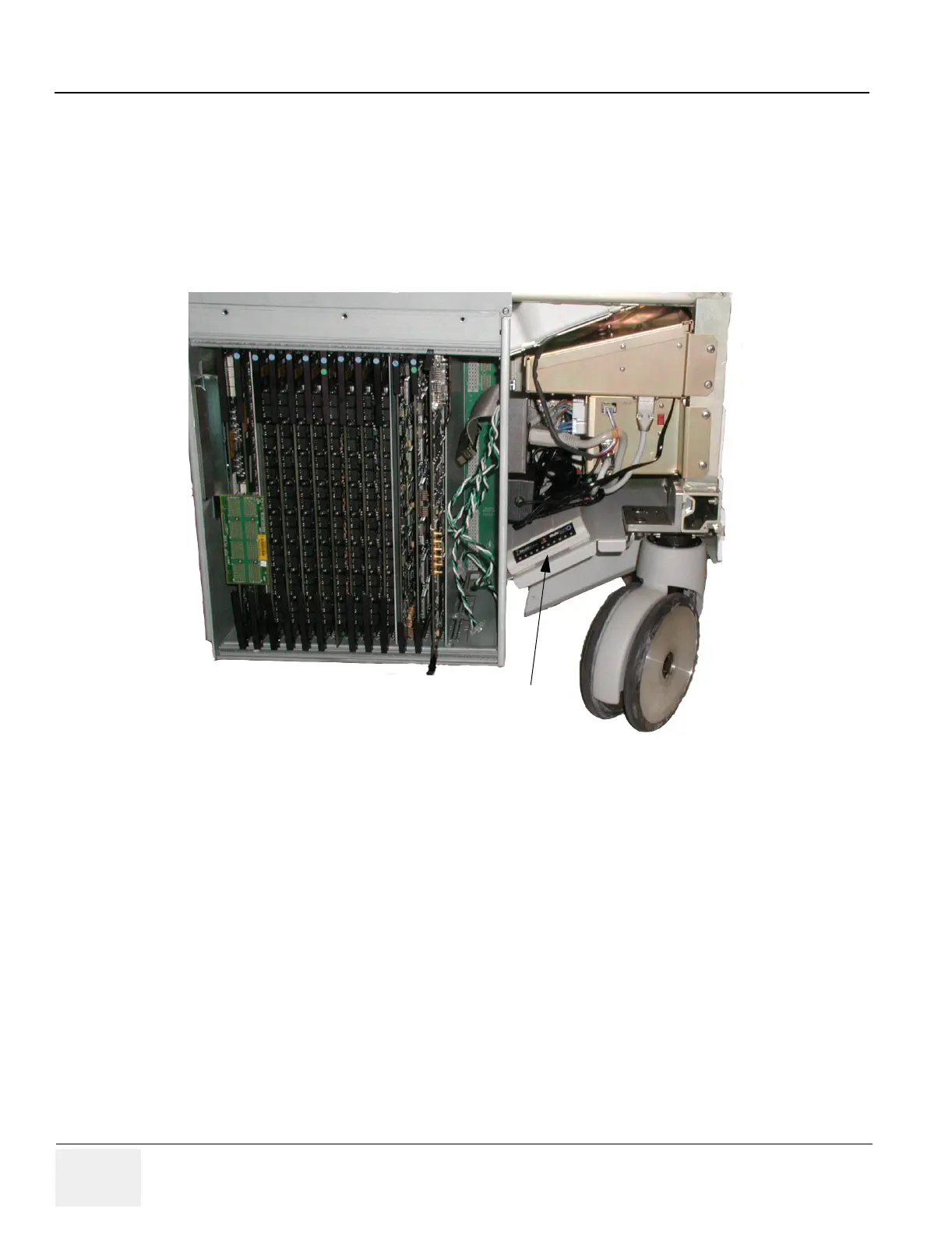

Figure 5-36 Modem: Location in Unit
Global Modem
