9-36 Section 9-15 - Power Distribution
Section 9-15
Power Distribution

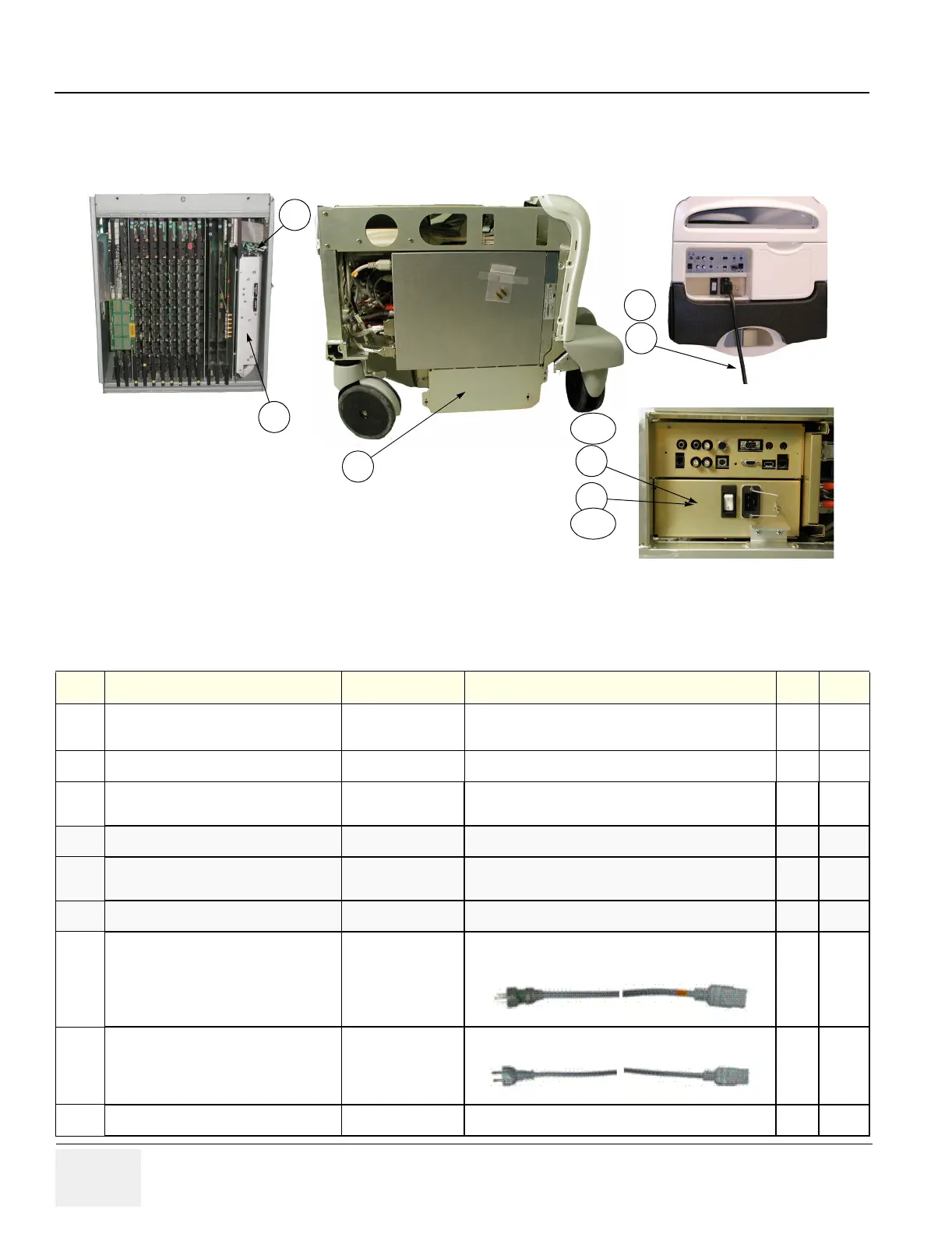

Figure 9-21 Power Distribution
Table 9-18 Power Distribution
Item Part Name Part Number Description Qty FRU
601
Card Rack Power Supply PWA
Assembly (FEPS)
2260203 Power Supplies are mounted on the circuit board 1 1
602
AC Transformer Assembly
FB200581 - Same as Vivid 7 - 12
603
AC CTRL ASSY, 100-120 V
FC200079
100-120 VAC Systems - Same as Vivid 7
Obsolete Use FC200403
1N
603A
AC CTRL ASSY, 100-120 V
FC200403 100-120 VAC Systems - Same as Vivid 7 1 1
604
AC CTRL ASSY, 220-240 V
FC200081
220-240 VAC Systems - Same as Vivid 7
Obsolete Use FC200404
1 N
604A
AC CTRL ASSY, 220-240 V
FC200404 220-240 VAC Systems - Same as Vivid 7 1 1
606
Power Cord 110Vac
2286301
USA and Japan
11
607
Power Cord 220-240 Vac
2218615 1 1
608
AC Power Harness
2315960 Line Filter and Power Harness to FEPS 1 1
601
602
603
604
606
607
608
603A
604A
