8-154 Section 8-37 - Front Caster Replacement Procedure
8-37-4 Front Caster Removal Procedure
10.)Remove the lock pin that secures the balljoint.
11.)Pull balljoint apart.
.
12.)Unscrew four (4x) screws.
13.)Remove the Caster.

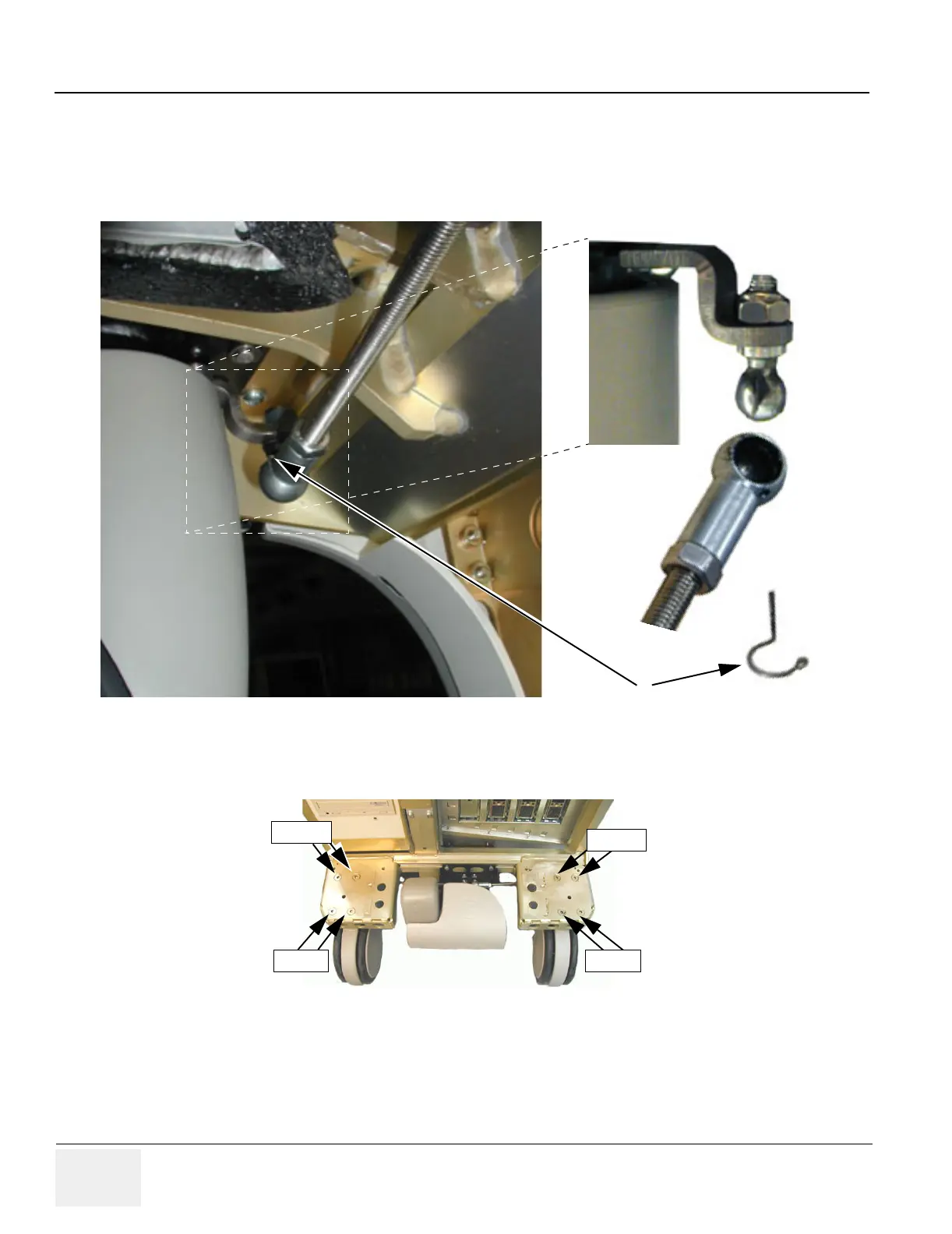

Figure 8-162 Front Caster Ball Joint
Figure 8-163 Caster fastening (both Casters shown)
Lock pin
Screws
Screws
Screws
Screws
