GE LOGIQ 9 - Page 451

GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
Chapter 8 Replacement Procedures 8-153
8-37-3 Preparations (cont’d)
9.) Put the Wooden Wedge under the Card Rack. This will stabilize the System with the right Front
Wheel free from the floor.
.

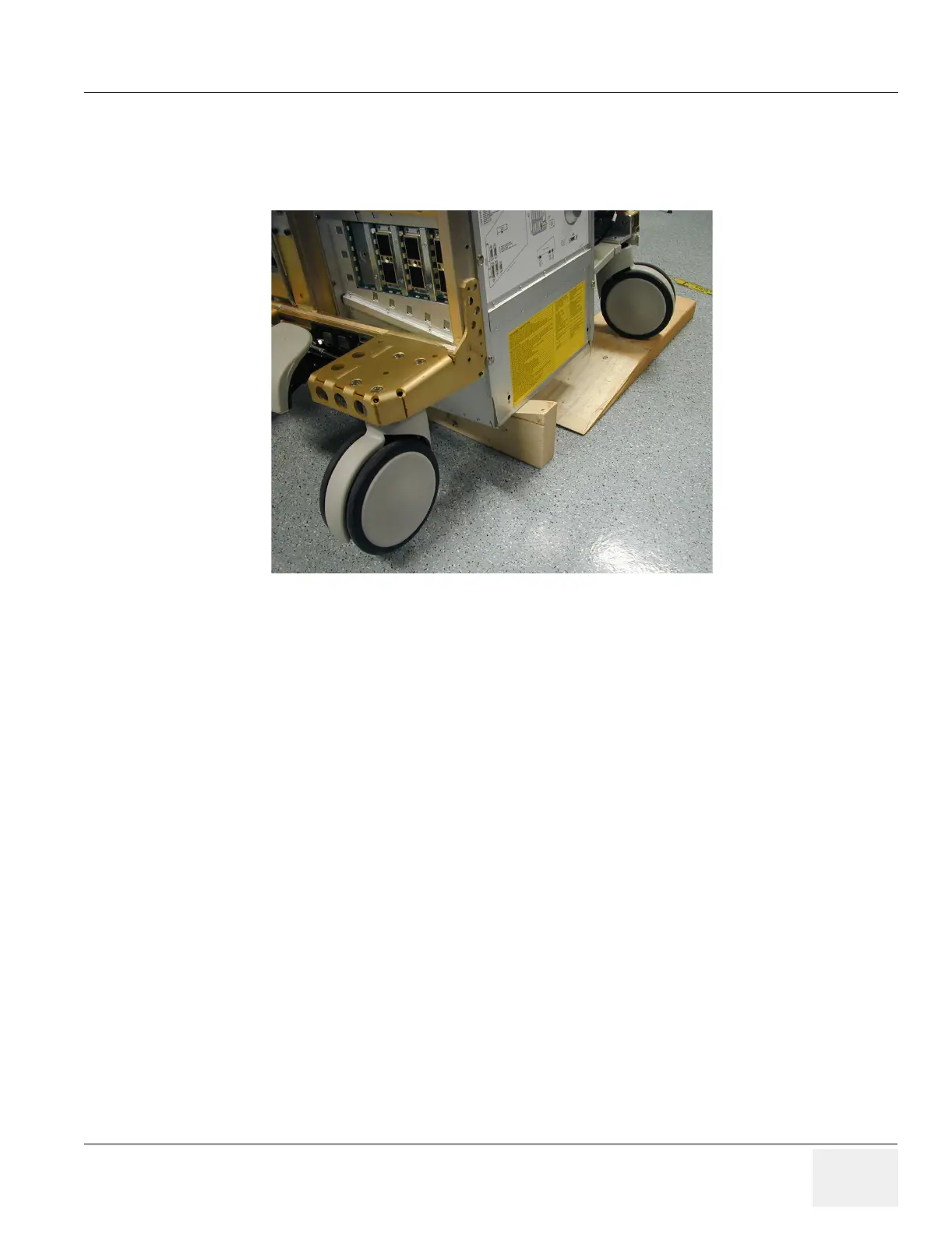

Figure 8-161 System stabilized with front wheel free from the floor
