8-104 Section 8-24 - Release Lock Assembly Replacement Procedure
Section 8-24
Release Lock Assembly Replacement Procedure
8-24-1 Manpower
One person, 1 hour
8-24-2 Tools
• Hexagon key 2,5 and 3 mm
• Phillips screwdriver size 2
•Socket 8 mm
8-24-3 Preparations
1.) Shut down the system as described in Power Off / Shutdown on page 4-3.
2.) Remove Operator Panel as described in Operator Panel Removal Procedure on page 8-112.
3.) Remove XY- Handle as described in XY-Release Handle Removal Procedure on page 8-101.

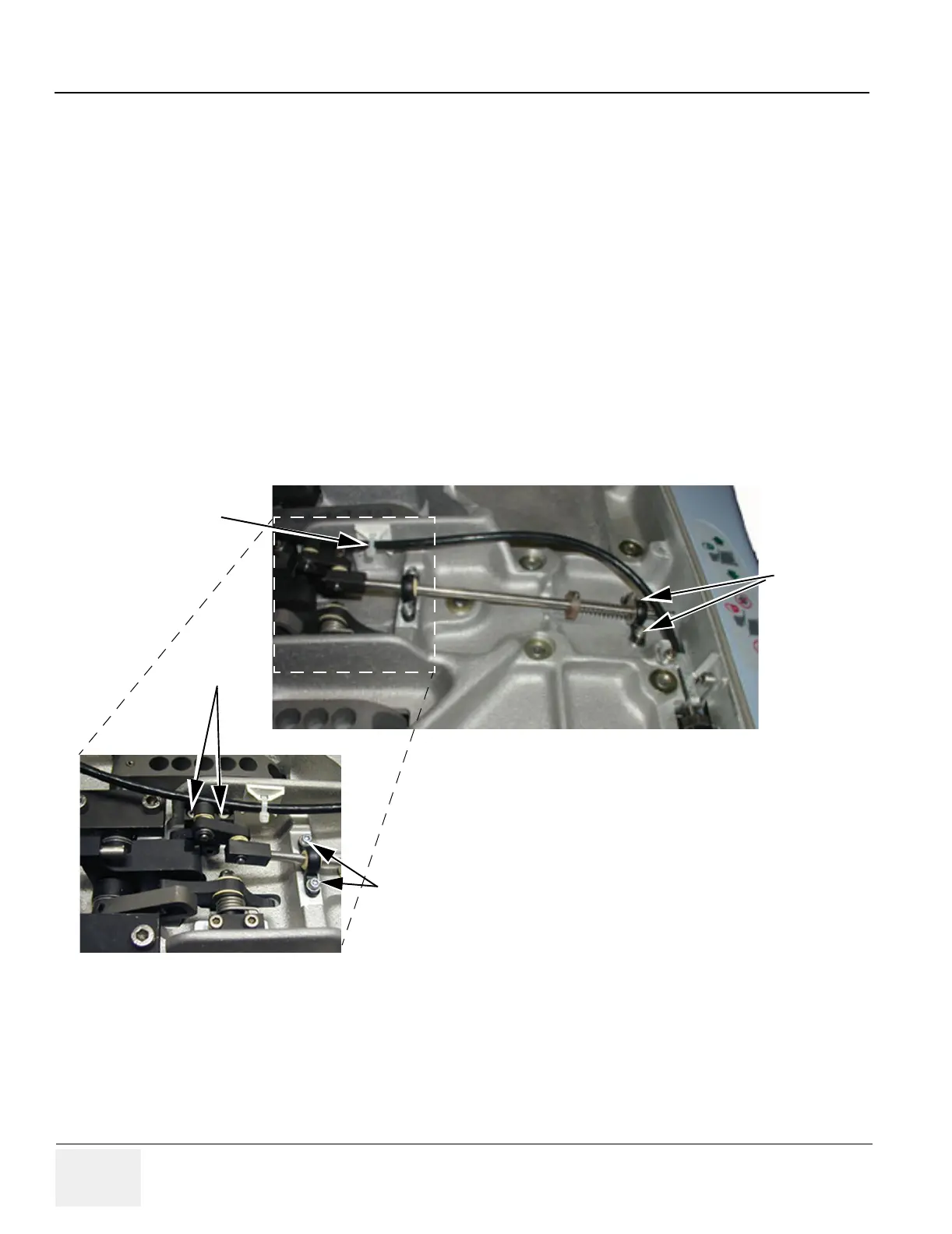

Figure 8-114 Release Lock Assembly
Strap
Screws
Screws
Screws
