GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
Chapter 8 Replacement Procedures 8-95
Section 8-19
Loudspeaker Assembly Replacement
8-19-1 Man Power
1 person .5 hours plus travel
8-19-2 Tools
Phillips screwdriver
8-19-3 Preparations
1.) Power Off/Shutdown the system as described in Power Off / Shutdown on page 4-3.
2.) .Remove the Monitor cover: refer to Figure 8-105and Figure 8-106.
a.) Remove the two top screw caps (covers)
b.) Remove the top two screws.
c.) Tilt the back of the monitor up as much as possible and position the back of the monitor over
the top tray well.
d.) Using a stubby screwdriver remove the two screws in the bottom of the cover.

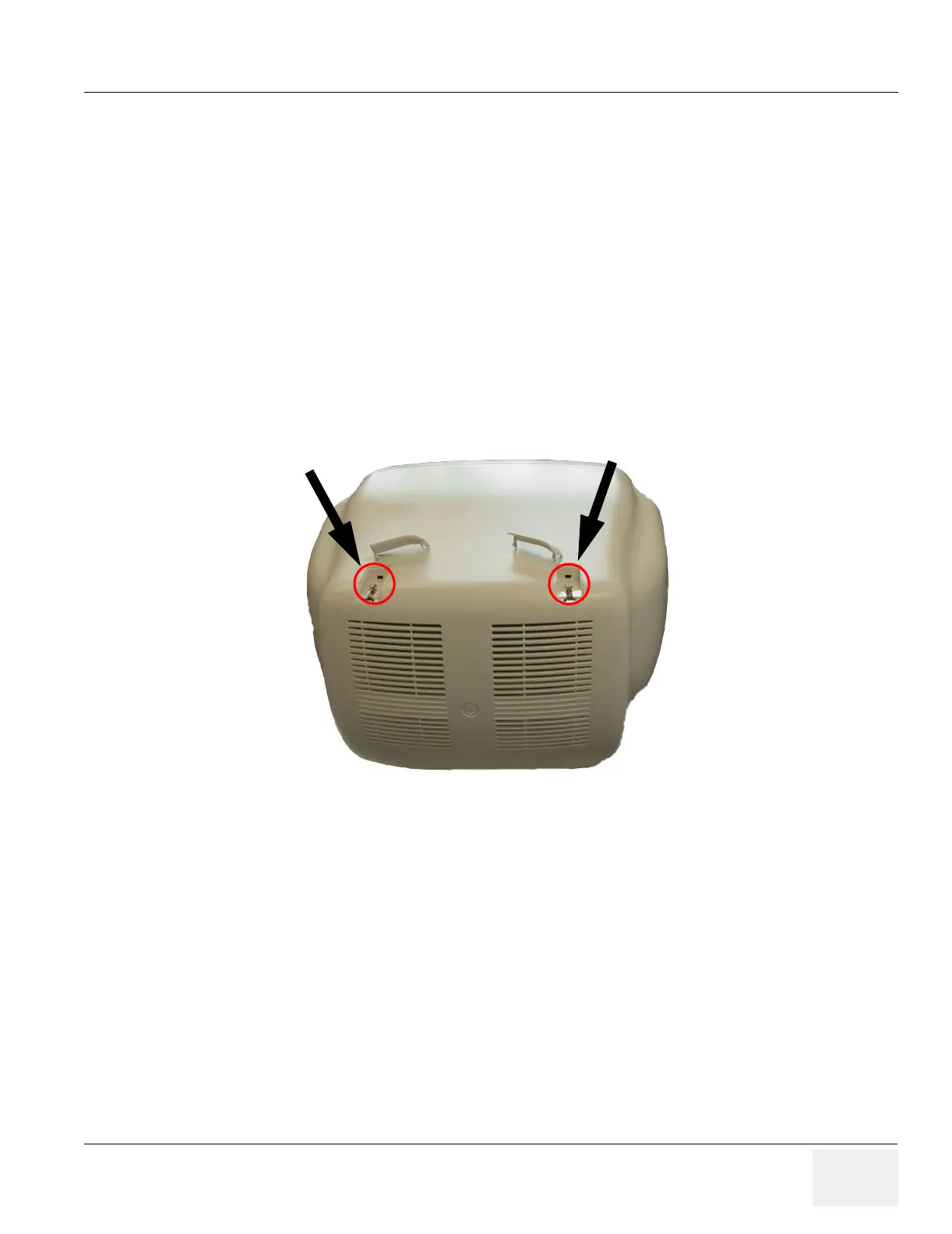

Figure 8-105 Monitor Cover Top Screws
