GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-96 Section 8-19 - Loudspeaker Assembly Replacement
e.) Slide the cover back and off of the monitor chassis.
NOTE: The two speaker grills fit loosely and may come off with the cover or remain with the monitor
chassis.
8-19-4 Loudspeaker Removal Procedure
1.) Unplug the speaker cable from the back of the monitor chassis.
2.) Remove the two bottom mounting screws from the speaker assembly.
3.) Support the speaker assembly and remove the two top mounting screws.

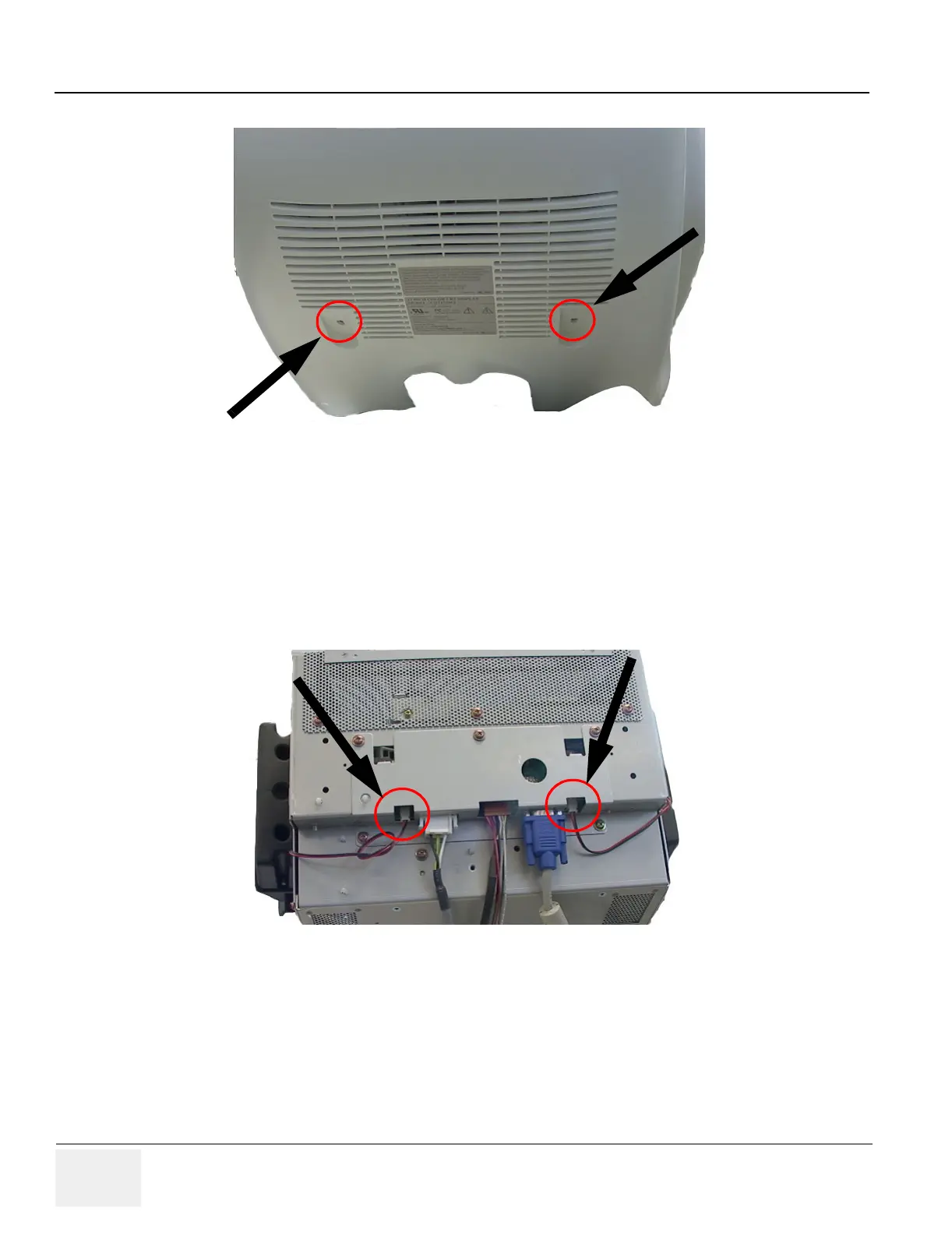

Figure 8-106 Bottom Cover Screws
Figure 8-107 Speaker Connections
To Next Page
