GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
Chapter 8 Replacement Procedures 8-177
8-50-2 Microphone/Transmitter Assembly
8-50-2-1 Assemble Transmitter
1.) Screw the antenna into the antenna jack on the transmitter.
2.) Put a fully Charged Battery into the Transmitter
a.) Open the battery door by sliding
b.) To remove a discharged battery , Hold the transmitter with one hand so that your thumb or
finge can catch the battery.
c.) User the other hand to pull on the red lever and let gravity pull the battery out and fall to your
thumb.
d.) Push the new battery in, make sure it is installed with the correct orientation of + and -
e.) Close the door and slide to lock.

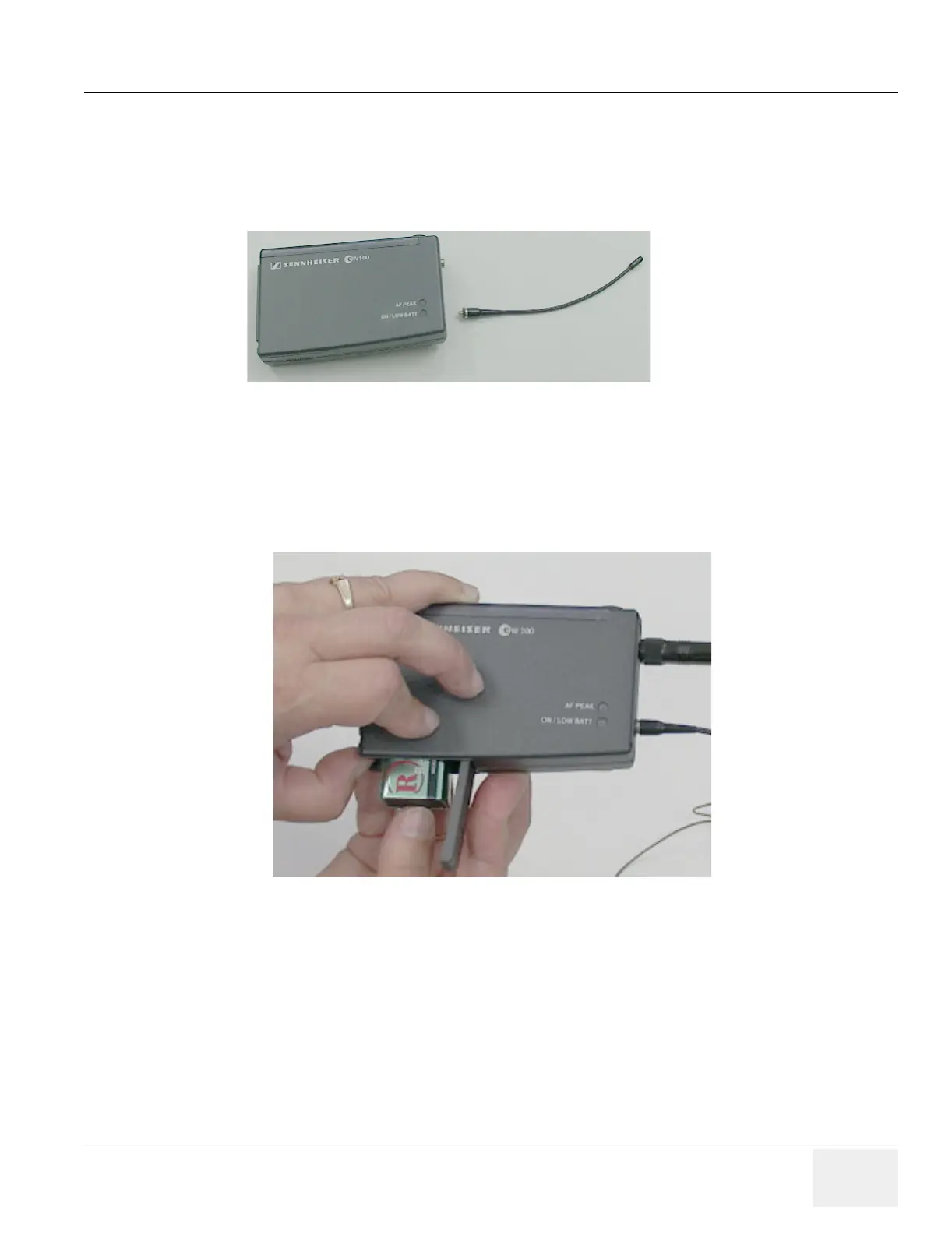

Figure 8-184 Transmitter and Microphone
Figure 8-185 Changing the Battery
Transmitter with antenna
