7-64 Section 7-12 - Troubleshooting Trees
7-12-10 Unable to Record to VCR

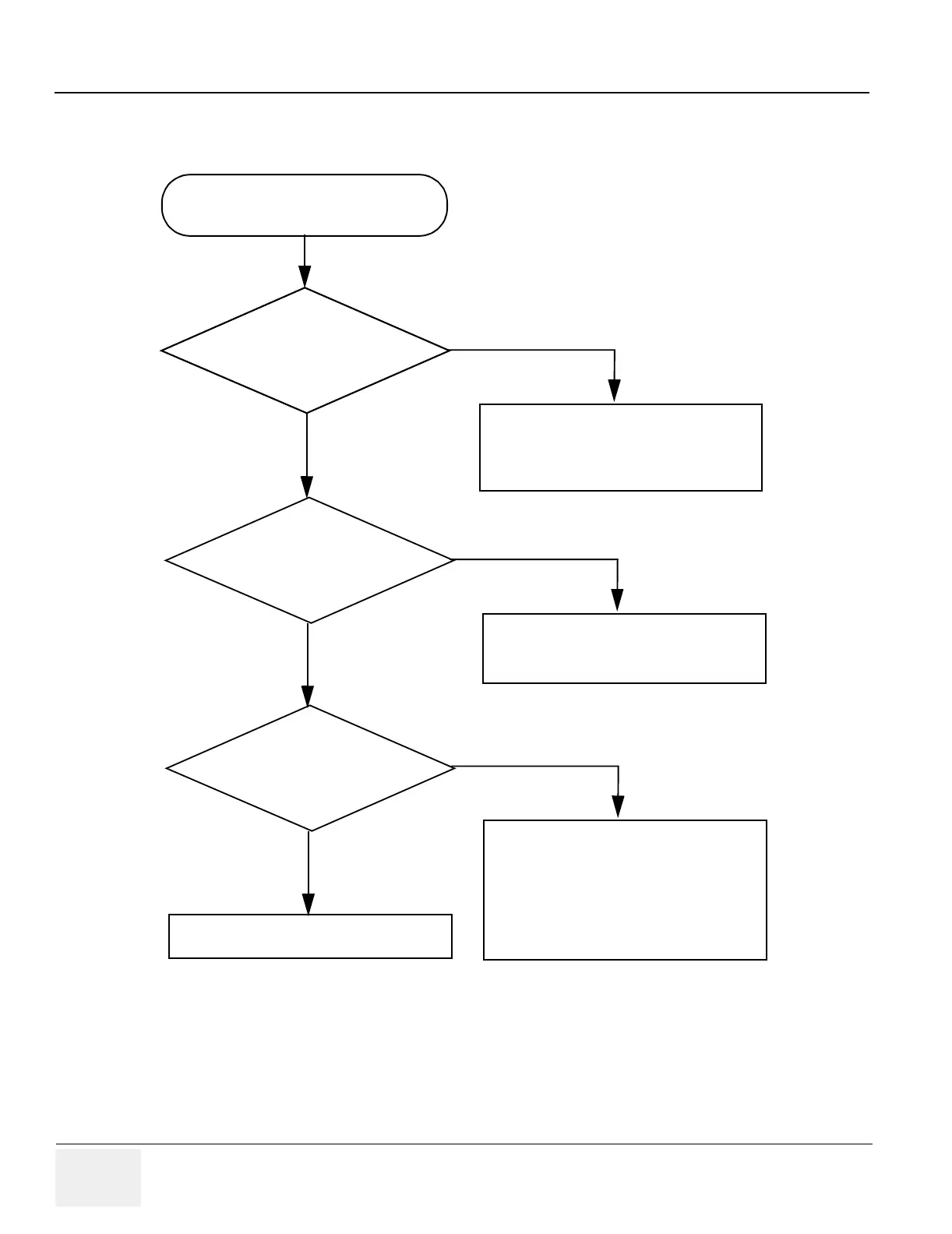

Figure 7-54 VCR Troubleshooting
Unable to record to VCR!
Check that all signal, and power
supply cable connections to the VCR
unit are OK.
YES
NO
Is the VCR properly
connected?
Is the VCR tape put into
the device?
Put the tape into the device and
rewind it.
NO
YES
Replace VCR.
Is recording unable even
by manual operation?
YES
- Check the signal cable connections
between VCR and Internal I/O.
- Check the cables between BEP and
Internal I/O
NO
To Next Page
