8-158 Section 8-39 - Brake Pedal Replacement Procedure
Section 8-39
Brake Pedal Replacement Procedure
8-39-1 Manpower
One person, 15 minutes
8-39-2 Tools
Torx screwdriver T-20
8-39-3 Brake Pedal Replacement Procedure
1.) Unscrew 4 screws under the pedal.
2.) Replace the pedal with a new one.
3.) Fasten 4 screws.
Section 8-40
Direction Lock Pedal Replacement Procedure
8-40-1 Manpower
One person, 15 minutes
8-40-2 Tools
Torx screwdriver T-20
8-40-3 Direction Lock Replacement Procedure
1.) Unscrew 4 screws, 3 under and 1 at the left side of the pedal.
2.) Replace the pedal with a new one.
3.) Fasten 4 screws.

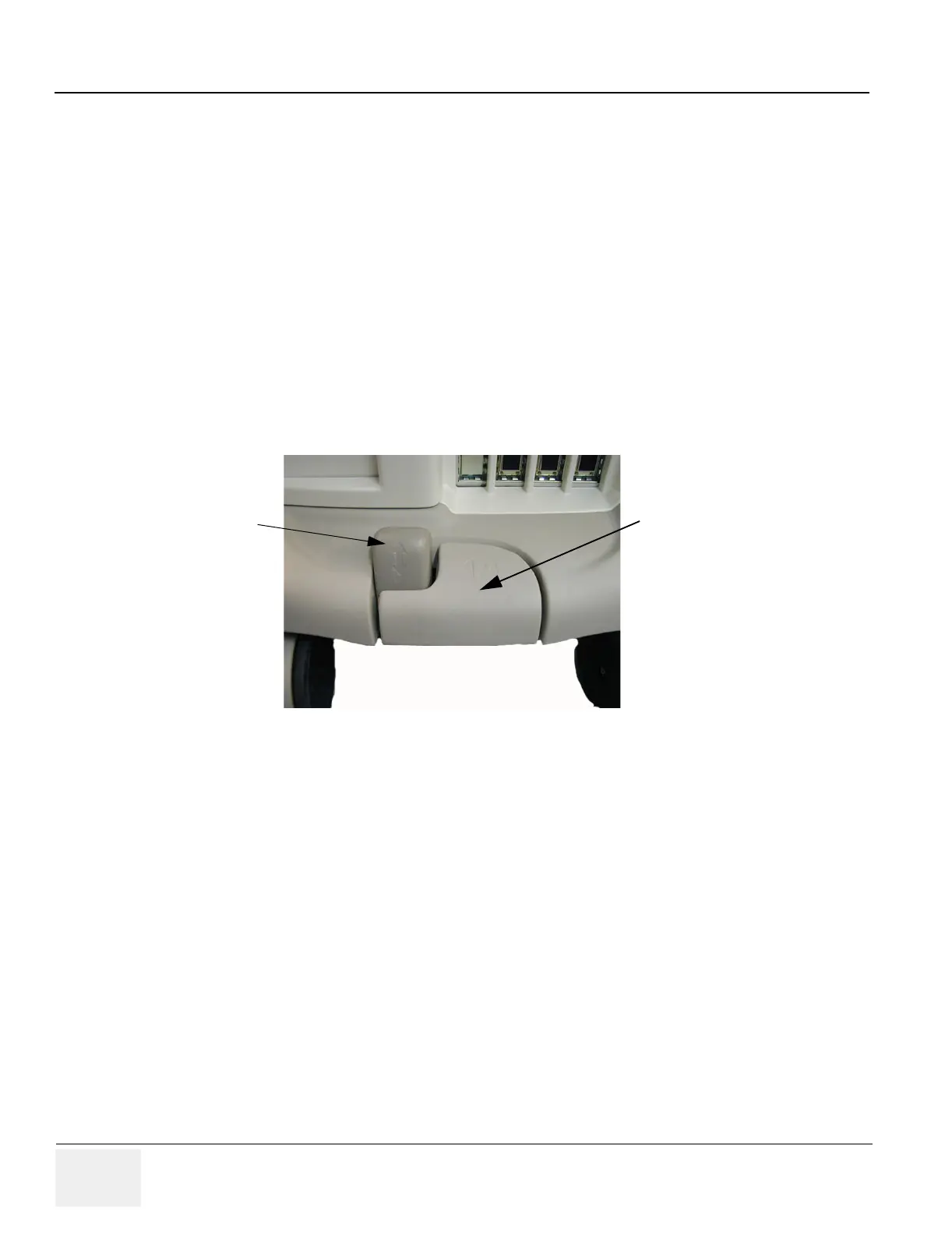

Figure 8-165 Brake Pedal
Brake Pedal
Direction Lock Pedal
