GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
7-22 Section 7-7 - Acquisition Diagnostics
7-7-4 Diagnostic Groups
NOTE: In the simplified block diagrams for the Diagnostic Groups, all unused system components (boards or
signals) are ghosted (drawn in gray).
7-7-4-1 Board-Level SCB Diagnostics
All Board-Level SCB Diags: For this board-level Diagnostic Group, the setup simply includes the
SCB and the Host.
NOTE: The basic wellness of the i960 Intelligent I/O processor is tested indirectly via system start-up
and the diagnostics listed below.

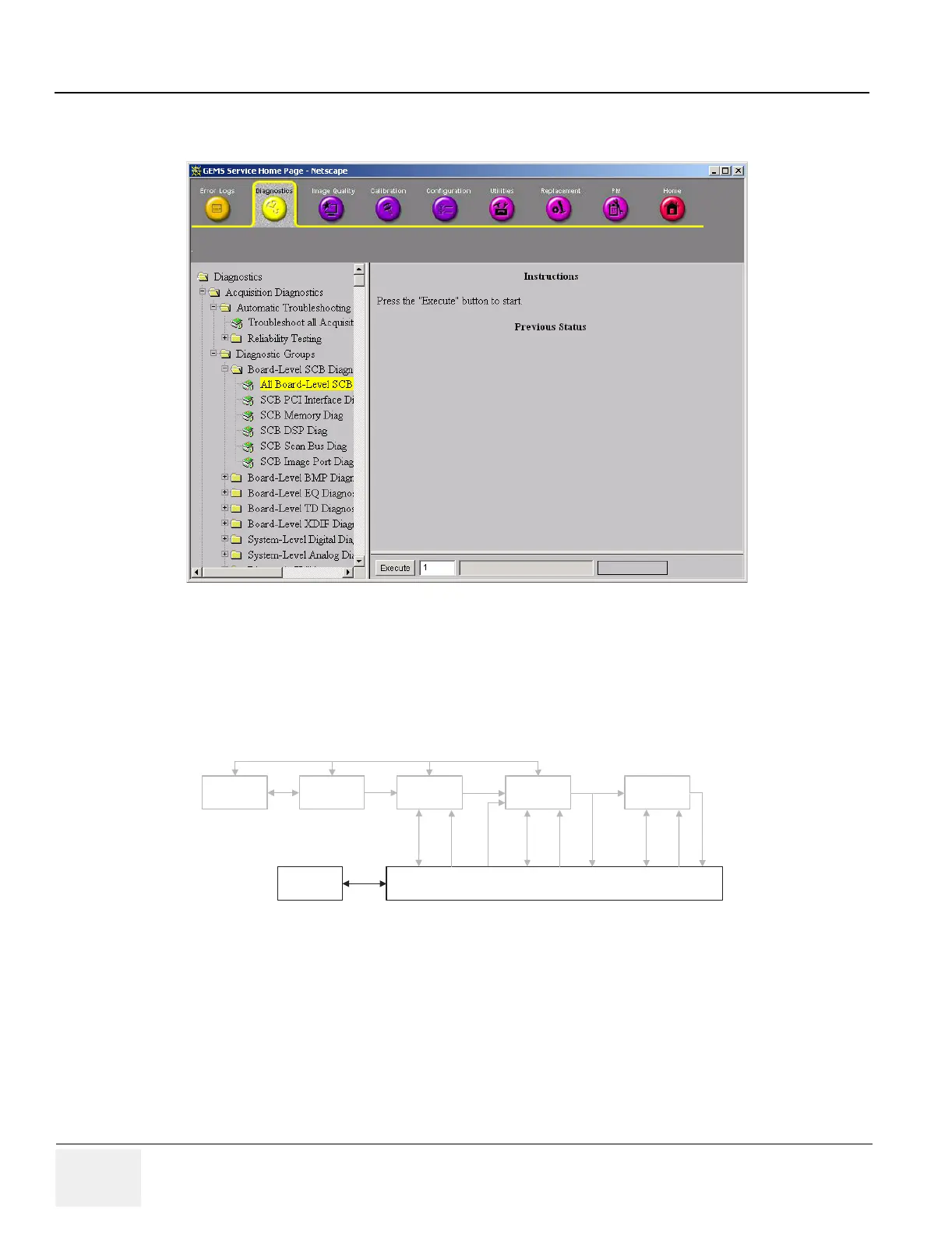

Figure 7-20 Diagnostic Group Selections - SCB Tests
Figure 7-21 Board-Level SCB Block Diagram
XDIF/RF TD s EQ BMP
Scan Control Board
Host
PCI
PCI
PCI
IQ,
RxSYNC
BM
IQ
IIC
RF
Probe
RF
TD
CTRL
TxSYNC
RxSYNC
TxSYNC
TxSYNC
