GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
6-8 Section 6-5 - Z-Release Cable and Gas Spring Adjustment
6-5-4-2 Cable Adjustment
1.) From underneath the handle use a 10mm open-end (small “ignition” style) wrench to screw in the
cable adjustment screw to tighten the Z-release cable.
2.) If you cannot remove enough of the play in the cable using this adjustment, see Cable Adjustment
at Gas Spring on page 6-8
6-5-5 Cable Adjustment at Gas Spring
6-5-5-1 Preparations
1.) If not already performed, Power Off / Shutdown the scanner as described in Section 4-3-2 “Power
Off / Shutdown” on page 4-3.
2.) Remove the right- and left-side covers of the scanner as described in Section 8-2-2 “Side Covers
(with Bumper) Replacement Procedure” on page 8-5.
3.) Remove the front cover of the scanner as described in Section 8-2-5 “Front Cover Replacement
Procedure” on page 8-9.
4.) Remove the black-and-white printer.
5.) Remove the VCR.
NOTE: The height of the printer and VCR make them difficult to remove without first removing the front cover.

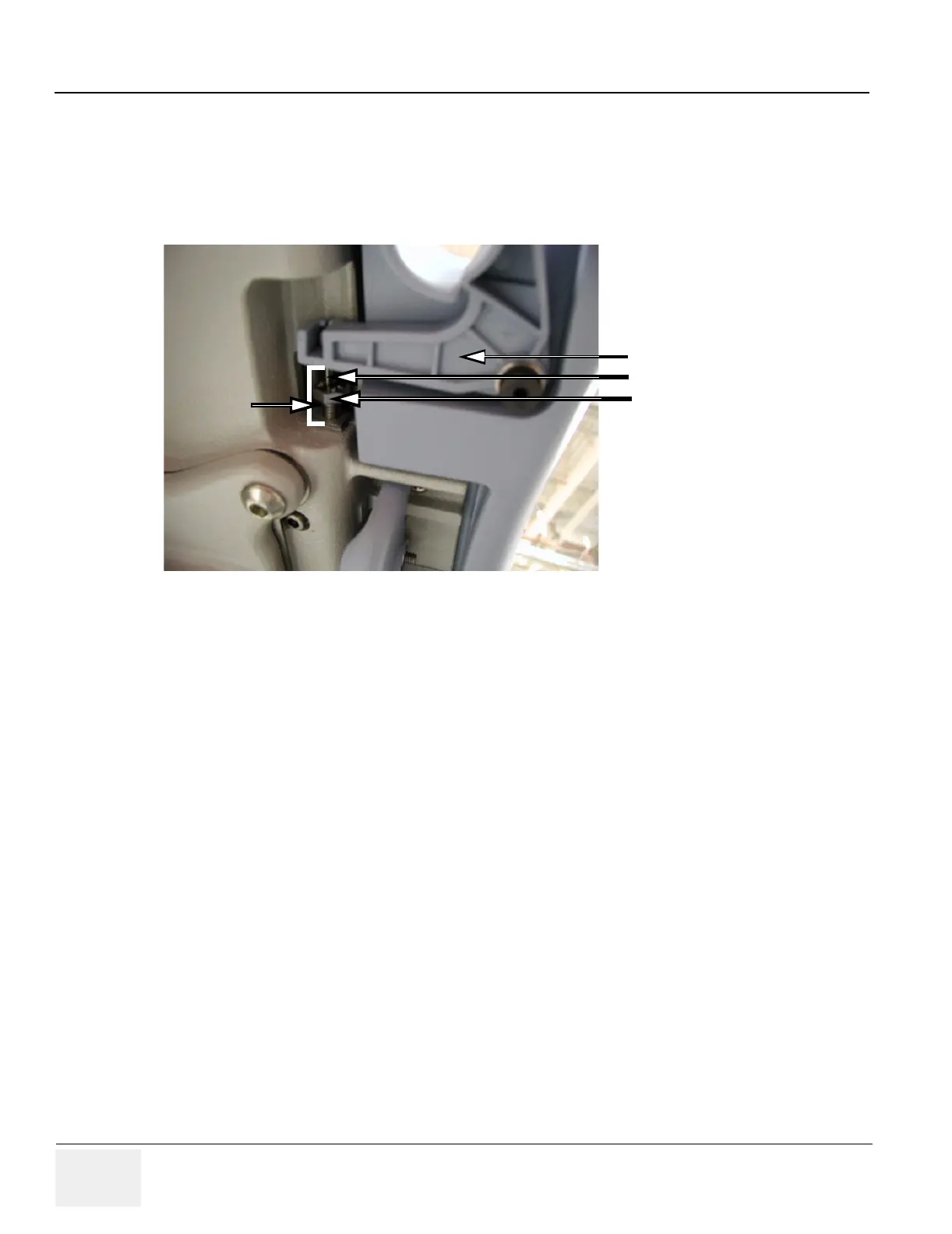

Figure 6-5 Z-Release Cable Adjustment Screw
Underside of Z-Release Lever
Z-Release Cable
Cable Adjustment Screw
Underside of Screw Head
Halfway Between Casting
and Un-squeezed Lever
To Next Page
