GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
Chapter 6 Service Adjustments 6-11
6-5-7 Emergency Release Procedure
When the operator panel is at or near its highest position it is possible to see the gas spring mechanism
with the Black and White Printer or the VCR removed. If the operator panel is stuck in the down position,
it is not possible to see the gas spring mechanism as it is down behind the card rack. To avoid removing
the Card Rack to make adjustments, try this procedure to raise the operator panel.
1.) Using 3mm Allen Wrench, remove the shoulder bolt holding the release lever on the handle.
2.) Tilt the release lever down and pull on the cable as shown in the figure below. This will give
unlimited travel and hopefully release the gas spring. Push up on the operator panel while you are
pulling on the cable.
3.) If you have no cable to pull (cable broken) or you are unable to release the gas spring in this
manner, you must remove the Card Rack to gain access to the gas spring mechanism.
6-5-8 Procedure Completion
1.) Install the VCR.
2.) Install the Black-and-White printer.
3.) Replace the front cover as described in Section 8-2-5 “Front Cover Replacement Procedure” on
page 8-9.
4.) Replace the side covers as described in Section 8-2-2 “Side Covers (with Bumper) Replacement
Procedure” on page 8-5.
5.) If required, Power On / Bootup the scanner as described in Section 4-3-1 “Power On / Boot Up” on
page 4-2.
Select the movie camera icon to view the video of the emergency
release procedure.
1 minute and 58 seconds
CAUTION
Do NOT use excessive force!

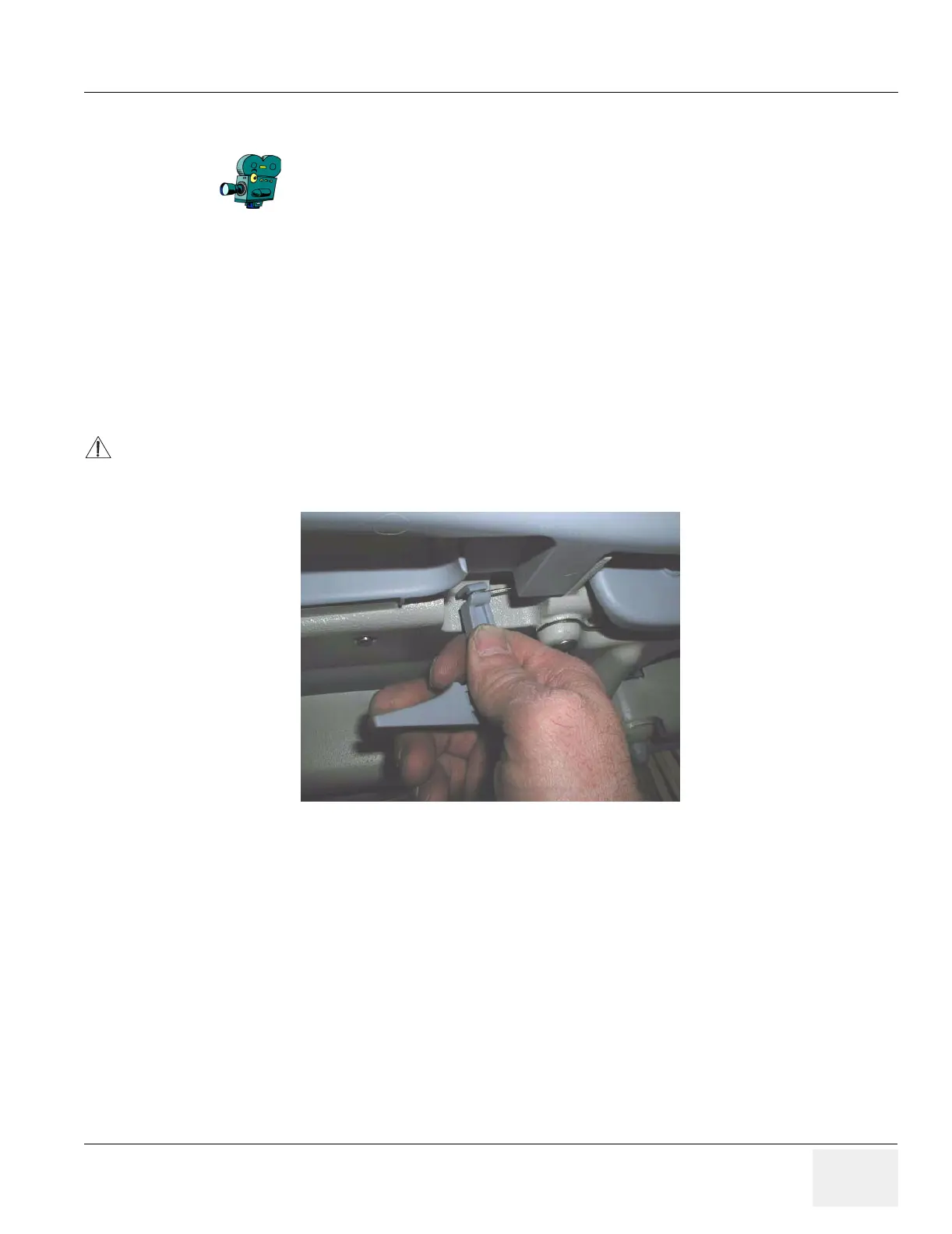

Figure 6-8 Release Lever
