GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
Chapter 8 Replacement Procedures 8-151
Section 8-37
Front Caster Replacement Procedure
8-37-1 Manpower
1 person, 30 minutes
8-37-2 Tools
Torx screwdriver T-20
Open End wrenches, 10 and 134 mm
5 mm hexagon key
Bevel Edged Board and Wooden Wedge (included in package with replacement Casters)
8-37-3 Preparations
1.) Power Down/Shutdown the system as described in Section 4-3-2 on page 4-3.
2.) Remove the Front Bumper as described on Section 8-2-7 on page 8-11.
3.) Turn Front Casters as shown in Figure 8-159.
4.) Activate Direction Lock.
5.) Put the Bevel Edged Board on the floor.
6.) Pull the system backwards up the board incline.

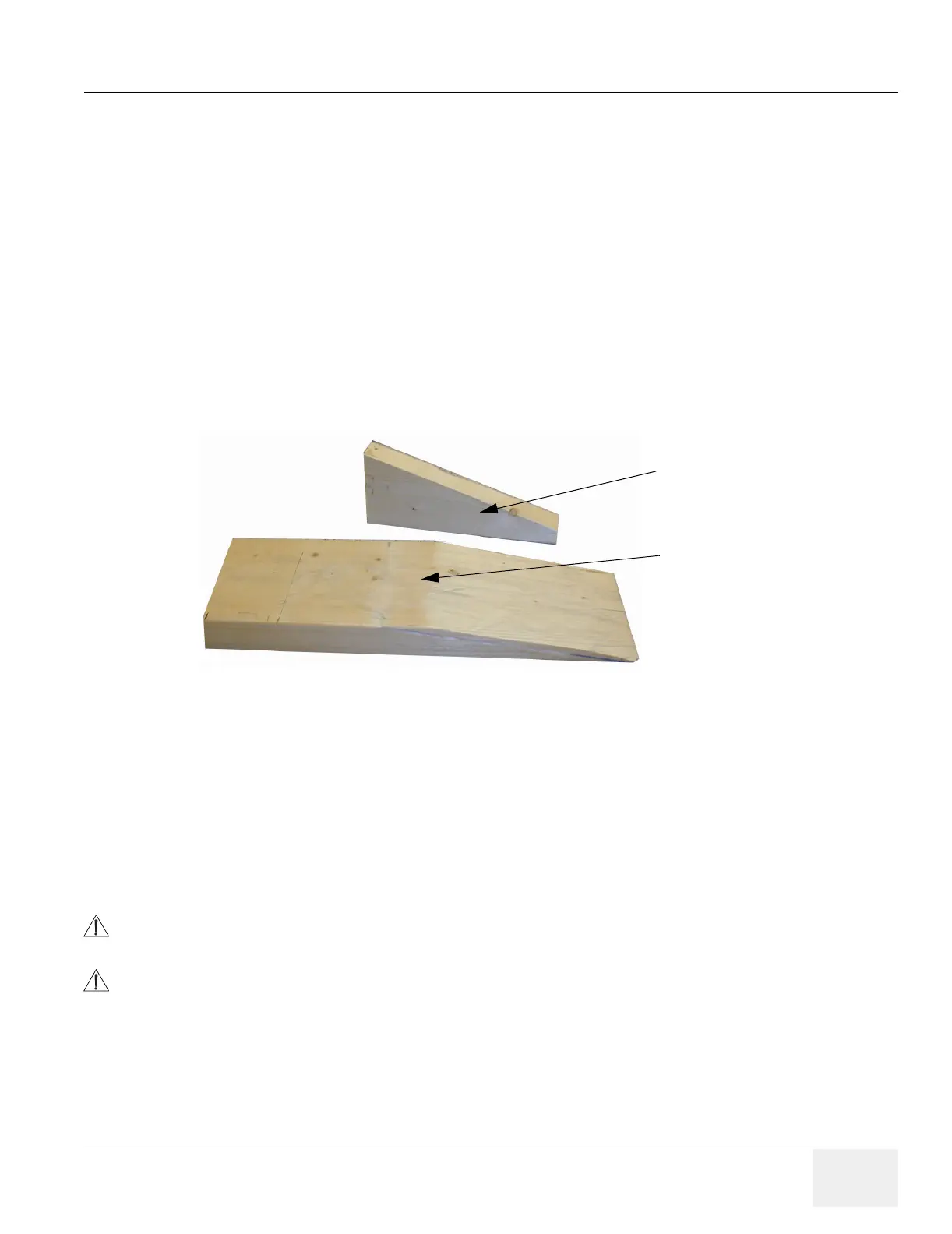

Figure 8-158 Bevel Edged Board and Wooden Wedge.
WARNINGWARNING
Prior to elevating scanner, verify that the floating keyboard is locked in its lowest
position.
WARNINGWARNING
Use extreme caution as long as VIVID 7 is un-stable, not resting on all four Casters.
Wooden Wedge
Bevel Edged Board
To Next Page
