GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-168 Section 8-47 - Color Video Printer Replacement Procedure
8-47-5 Mounting Procedure
1.) Slide the new printer in place and connect up the cables.
2.) Position the printer and fasten the two straps to secure it in place.
3.) Boot up and test the system.
4.) Ensure that the print keys still function as they did before.
5.) Replace the covers. (click here to view the cover installation video)

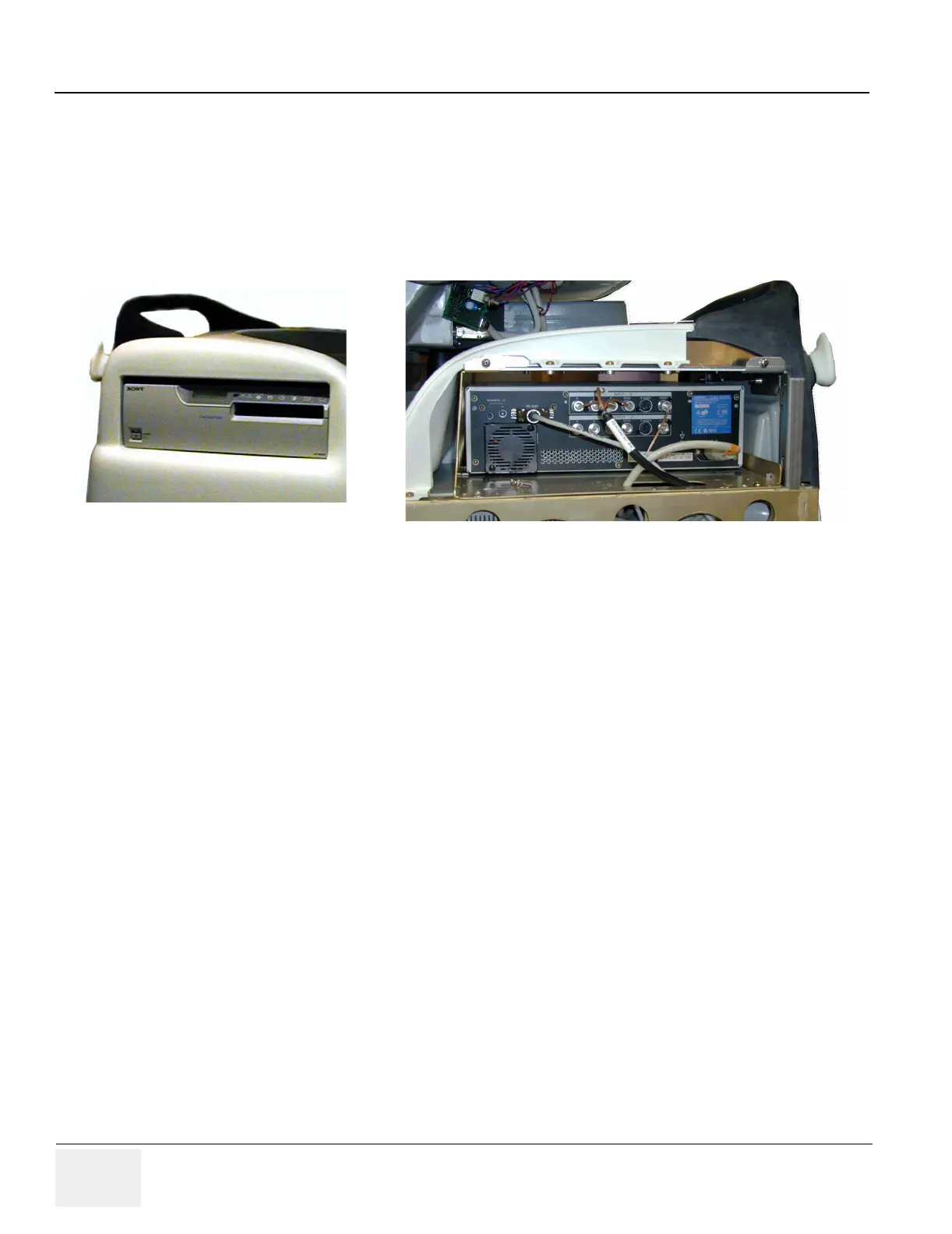

Figure 8-173 Front and Rear view of Color Video Printer in System
