GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-120 Section 8-30 - Trackball Assembly Replacement Procedure
Section 8-30
Trackball Assembly Replacement Procedure
8-30-1 Manpower
One person, 1 hour 30 minutes
8-30-2 Tools
• Phillips screwdriver size 1
• Socket 2,5 mm
8-30-3 Preparations
1.) Shut down the system as described in Section 4-3-2 on page 4-3.
2.) Remove the Operator Panel as described in Section Section 8-27 on page 8-111.
3.) Put the panel upside down on a soft cushion.

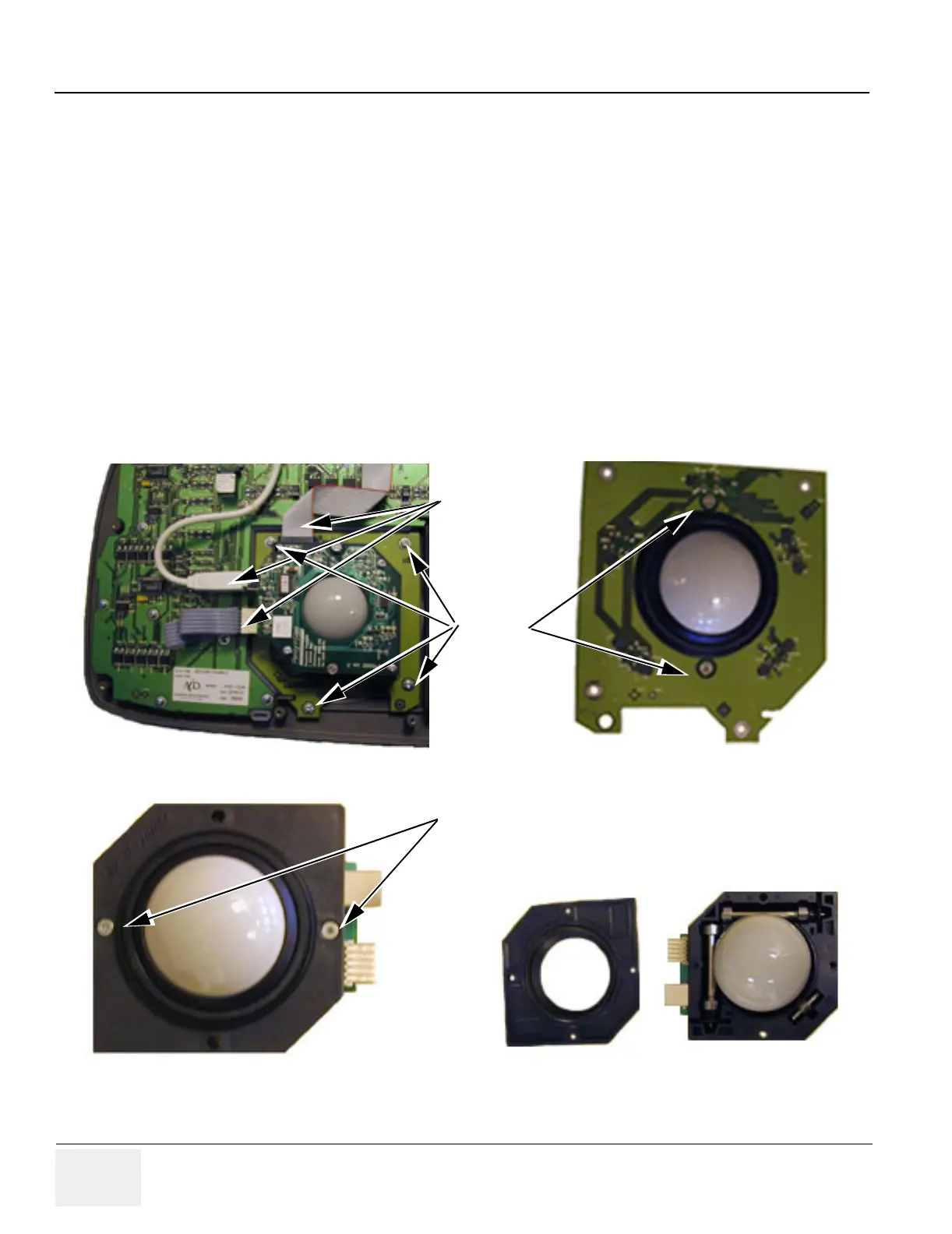

Figure 8-130 Trackball
Trackball assembly
Screws
Trackball unit
Connectors
Trackball housing
Screws
Operator Panel with Trackball assembly
To Next Page
