Chapter 7 Diagnostics/Troubleshooting 7-43
7-10-4 Front Panel Light Tests
From the ScFpApiTest screen, the front panel indicator light function can be tested.
1.) In the LED section of the dialog box, under Indicator, select High.
2.) Click on SET ALL
. All lights on the front panel that are capable should turn green.
3.) In the LED section of the dialog box, under Indicator, select Off.
4.) Click on SET ALL
. All lights on the front panel that are capable should turn off.
From the ScFpApiTest screen the front panel backlight function can be tested.
1.) In the LED section of the dialog box, under Backlight, select High.
2.) Click on SET ALL
. All lights on the front panel that are capable should turn amber (yellow).
3.) In the LED section of the dialog box, under Backlight, select Off.
4.) Click on SET ALL
. All lights on the front panel that are capable should turn off.
7-10-5 Ending the Program
When testing is complete you must close out of Windows, shutdown the system and reboot the
Ultrasound Scanner to return to the applications scanning mode.
7-10-6 Console Troubleshooting Aids
For more information on troubleshooting console problems with audio, microphone, power and control,
refer to Section 5-5 "Operator Console Control PWA" on page 5-31.

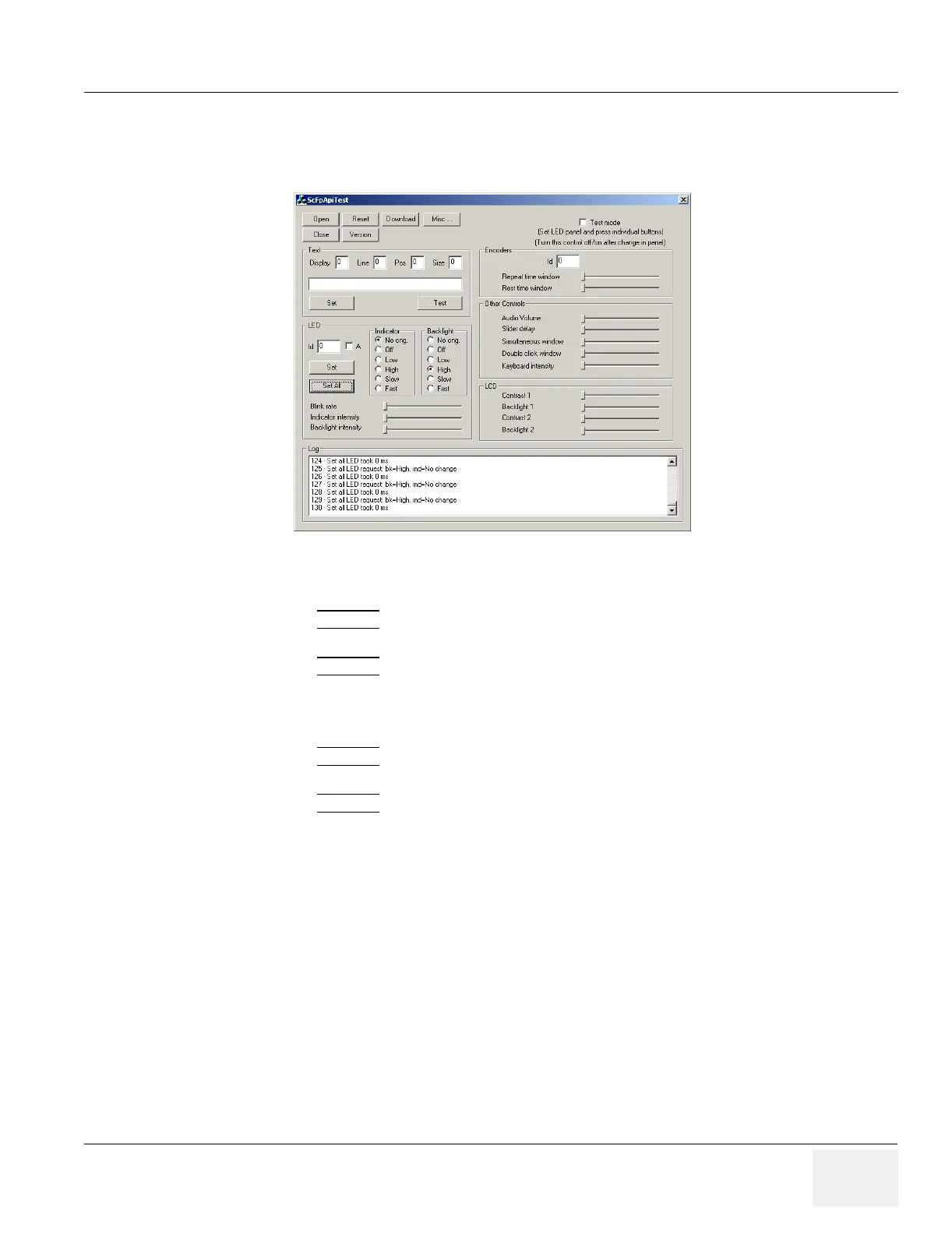

Figure 7-41
