Chapter 7 Diagnostics/Troubleshooting 7-13
Section 7-6
Diagnostics
As described in Chapter 5 - Components and Functions (Theory), the service platform uses a web-
based user interface (UI) to provide access to common service components. A service dongle (part
number 066E0703) is required to access areas proprietary to GE.
The Diagnostic home page displays a listing of test categories consisting of Acquisition Diagnostics, I/
O Devices and Common Diagnostics. Expand the desired main category to select groups or individual
tests.

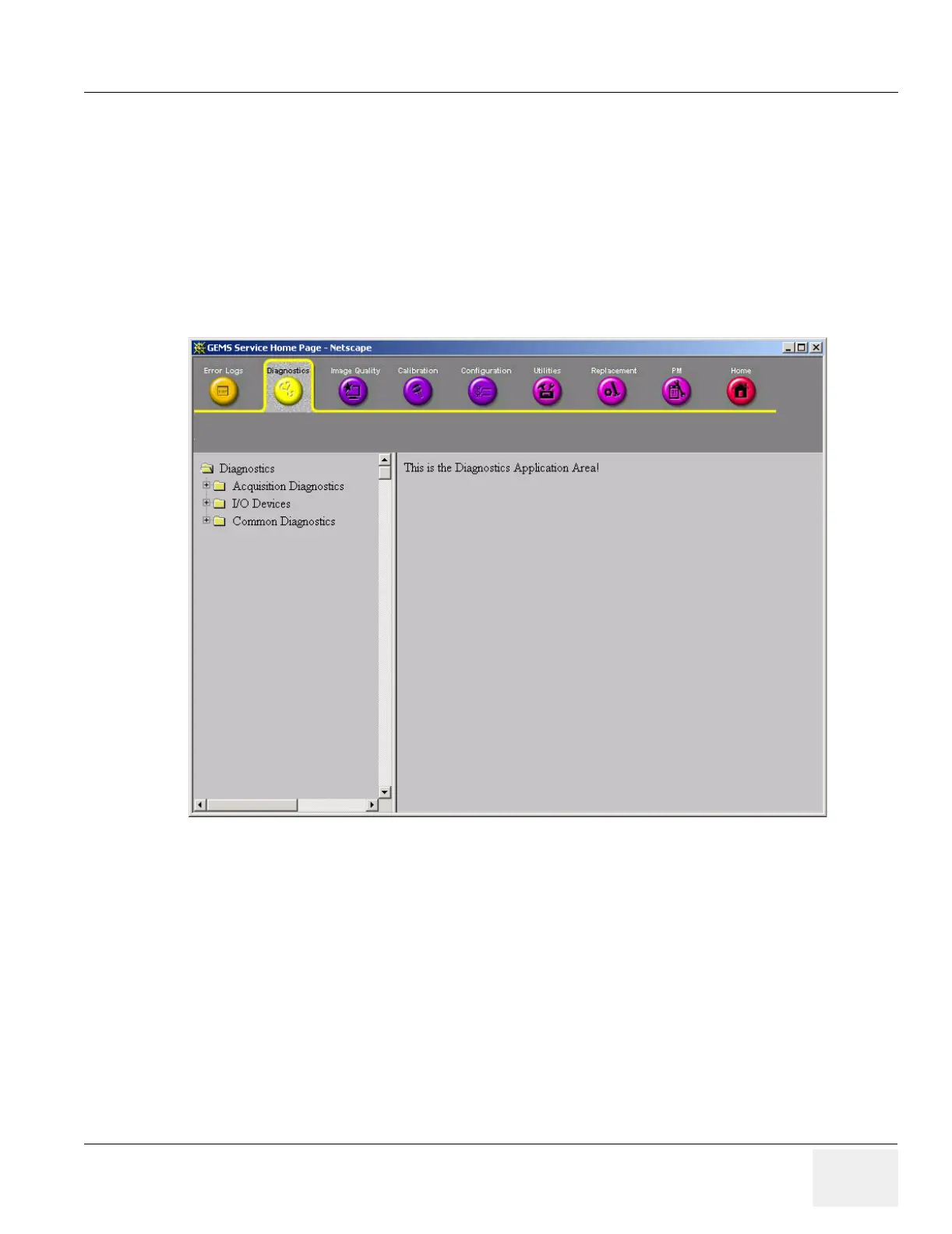

Figure 7-13 Global Service User Interface Diagnostic Screen
