GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
7-32 Section 7-7 - Acquisition Diagnostics
7-7-4-8System-Level Analog Diagnostics (cont’d)

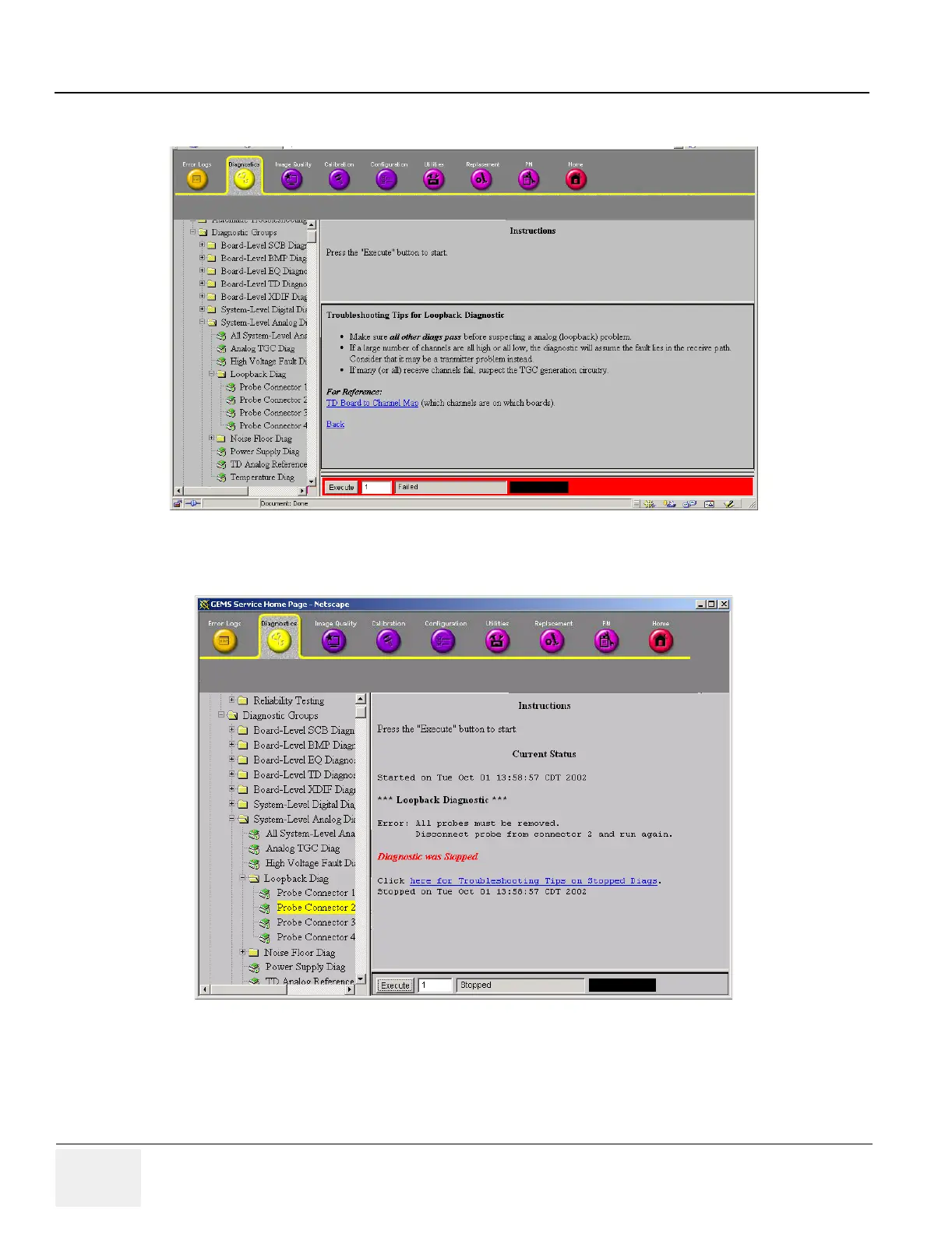

Figure 7-34 Example: Loopback Troubleshooting Hints
Figure 7-35 Example Loopback Test with Probe Attached
