GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
Chapter 8 Replacement Procedures 8-109
5.) Disconnect the Video Cable from the Upper Operator Panel.
6.) Mark and disconnect the remaining wires to remove the Upper Operator Panel from the scanner.
The wires consist of:
a.) Video Cable
b.) Bundle
c.) Five ribbon cables (A-E)
d.) Two small wires

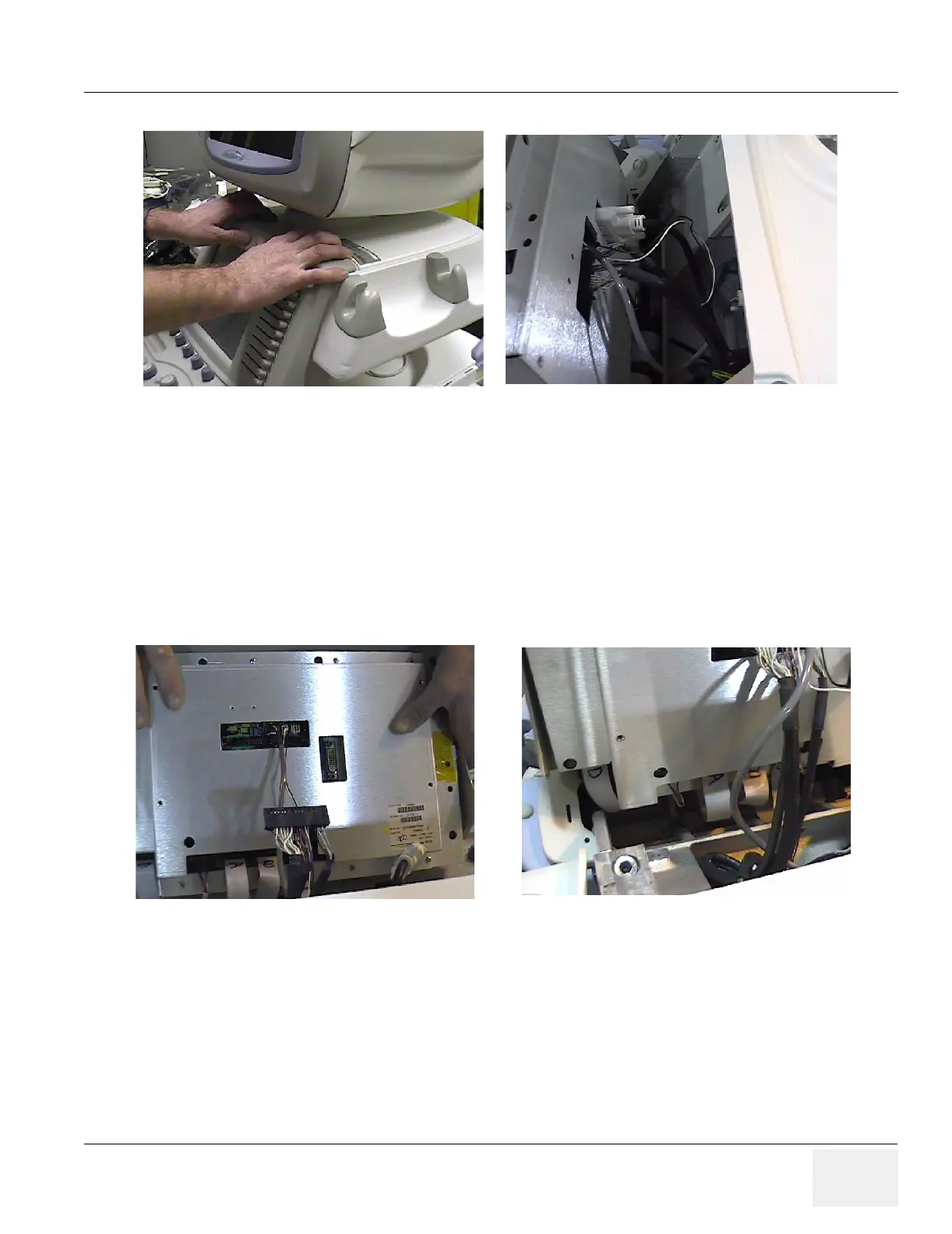

Figure 8-119
Figure 8-120 Steps 7 and 7c
Step 5
Step 6
a
b
c
d
Step 7c
A
B
C
D and E
Step 7
To Next Page
