GE LOGIQ 9 User Manual

GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
9-28 Section 9-14 - Interconnect Cables

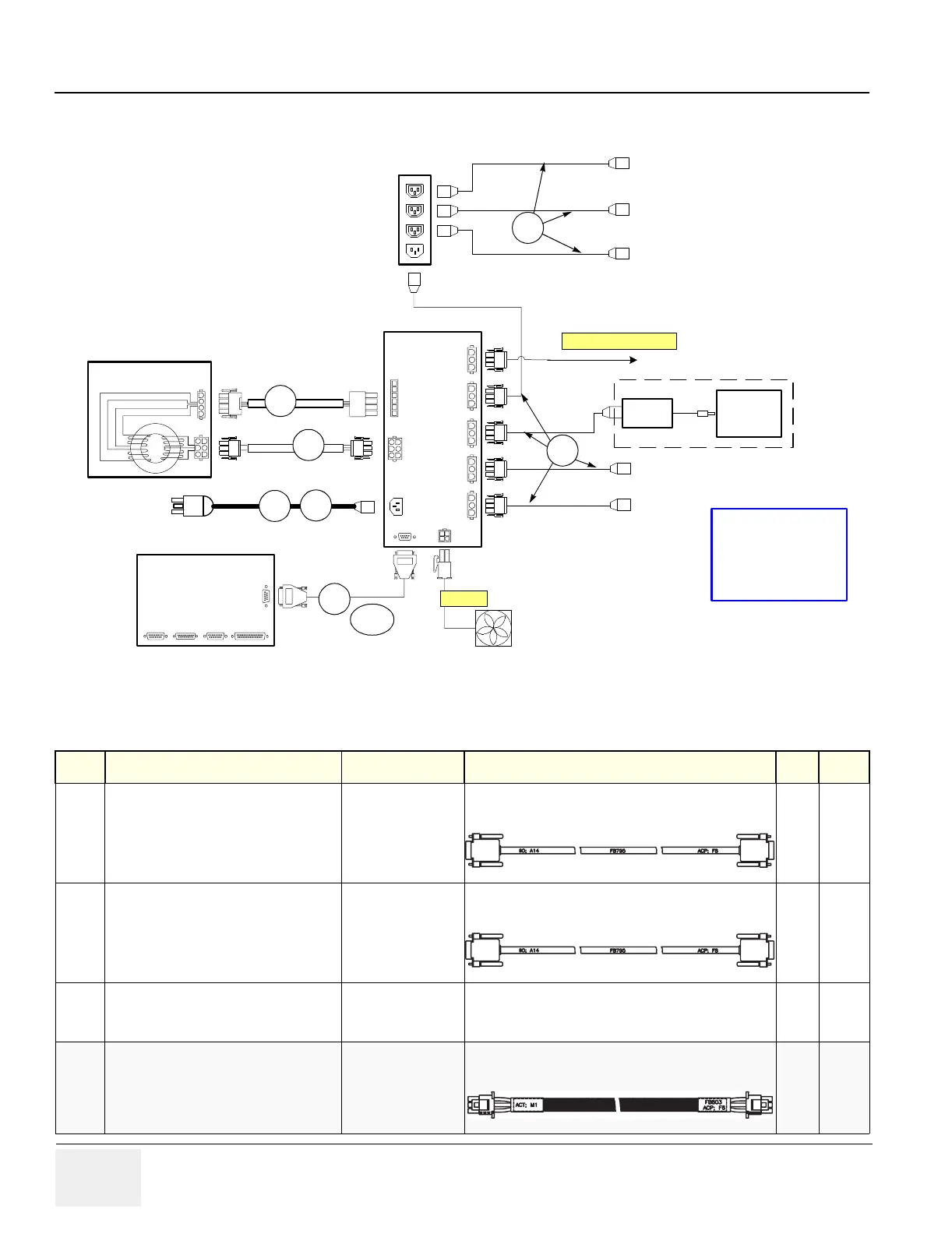

Figure 9-17 AC Distribution Cable Diagram
Table 9-16 AC Distribution Cables
Item Part Name Part Number Description Qty FRU
507
Fan Speed Control Cable
FB200795
#7 - IIO-A15 to ACP-F8
11
507A
Fan Speed Control Cable if EQ4 PWA
(2260210) is Rev K or earlier
2333827
#7 - IIO-A15 to ACP-F8
11
513
AC-Distribution Cable Kit
FB200802
Includes FB200802-1, FB200802-2, FB200802-3 &
FB200802-4 1 1
514
AC Mains 1 Cable
FB200803
#14 - ACT-M1 to ACP-F6 - Same as Vivid 7 -
1 1
P5
AC
DISTRIBUTION
BOX
XFMR BOX
P6
P100
P101
P7
P8
P9
P10
P11
Part of Main Cable
To Op Panel
To Color Printer
To VCR
To BW Printer
To FEP
Card Rack
To BEP
INTERNAL I/O
Fan
A13 A16 A15 A12
A14
AC CONTROL
BOX
AC
Adapter
Modem
Optional Global
Modem
Assembly #475
To add a modem to a
system that does not
have one, you must
order the Global
Modem Assembly and
Cable Kit 2368850
AC Outlet
507
507A
514
515
540
541
542
513
#500
