Chapter 9 Renewal Parts 9-33

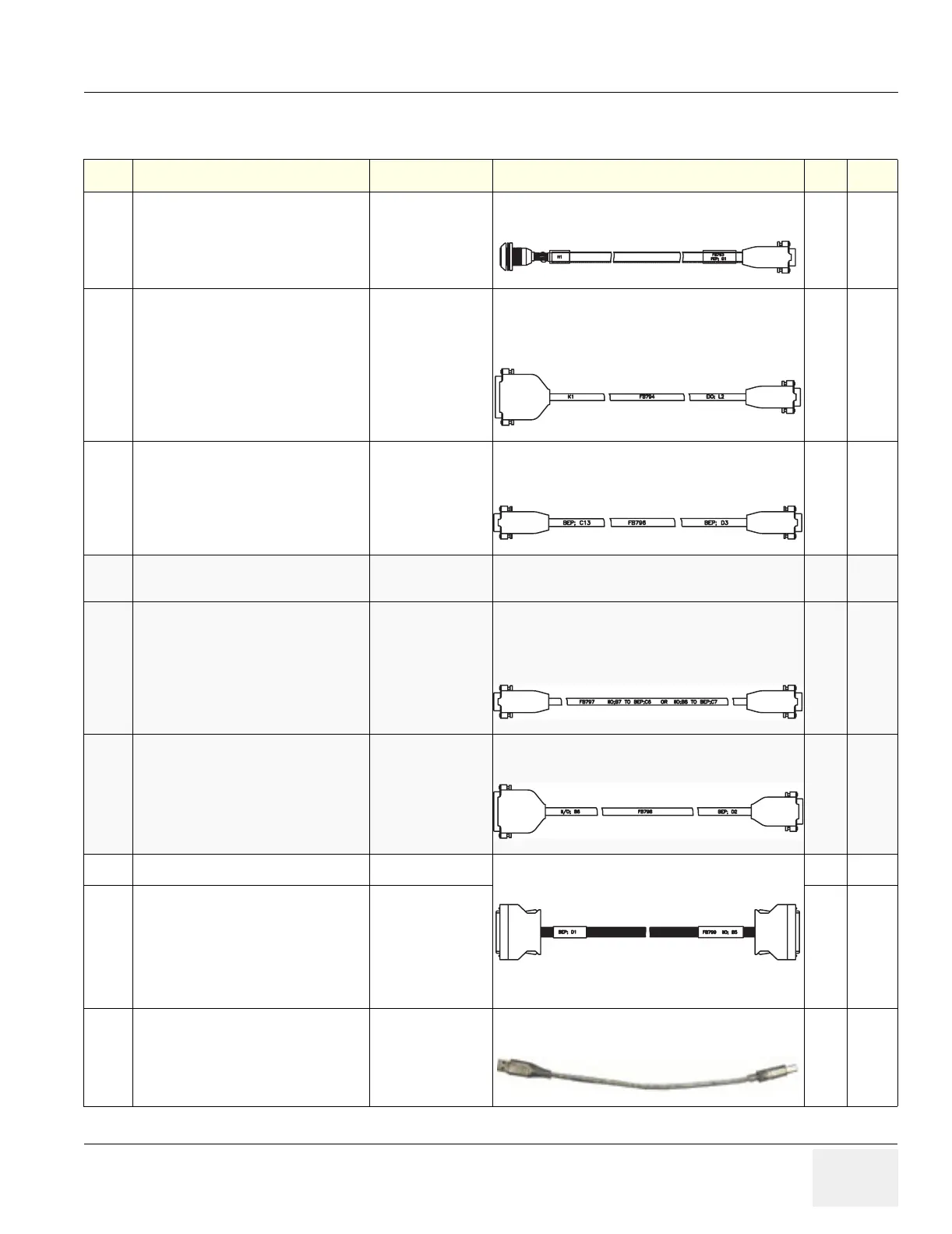

Table 9-17 Internal I/O Cables
Item Part Name Part Number Description Qty FRU
505
Doppler Cable
FB200793
From Front Panel to Front End Processor - #5
11
506
Standard Modem Cable
FB200794
From Modem to External I/O - #6
Packaged with FB200802-1 (modem power cable)
and used with Modem Option kit
11
508
Monitor Cable Standard
FB200796
BEP AGP Video to PCVIC Card SVGA - #8 - BEP-
C13 to BEP-D3 - Same as Vivid 7 -
11
508A
Digital Video Interface Cable
2354056
Interface from AGP Slot ADD card to DGVIC
BEP 2.1
1 1
509
RS232 Com 1/2 Cable
FB200797
#9 - IIO-B7 to BEP-C6 or IIO-B8 to BEP-C7
Used with 2364642 in BEP 2.x Systems
- Same as Vivid 7 -
2 1
510
Internal I/O-PC2IO Power/Control
Cable
FB200798
#10 - IIO-B6 to BEP-D2 - Same as Vivid 7 -
1 1
511
Internal I/O-PC2IO Signals Cable
FB200799
#11 - Obsolete Use FC200286-
#11A BEP D1 to IIO B5 Same as Vivid 7 -
Improved flex and length
1N
511A
Internal I/O-PC2IO Signals Cable
FC200286 1 1
518
USB A-B Cable
070D2802
#18 - Same as Vivid 7 -
