Note:
* The UNI-DIR Black 1 Right should always be set at Zero.
6 Enter the corresponding number into the field in the UNI-DIR section on the left side
of the web page. For example, if CL aligns best at –5, that number should be added to
the current values in the Cyan Left field. For instance if the current value in the field is
-2, add the new value (-5) to it, and enter -7 in Cyan Left field. Continue to enter the
new alignment values for all of the color print heads, Left and Right in the UNI-DIR
columns.
7 Click the Save Settings button to accept the values.
8 Reprint the job and make adjustments to values on Head Calibration page until all the
unidirectional box prints show best alignment position to be at zero position (center of
box), +/- 1.
To calibrate 360 bidirectional printing

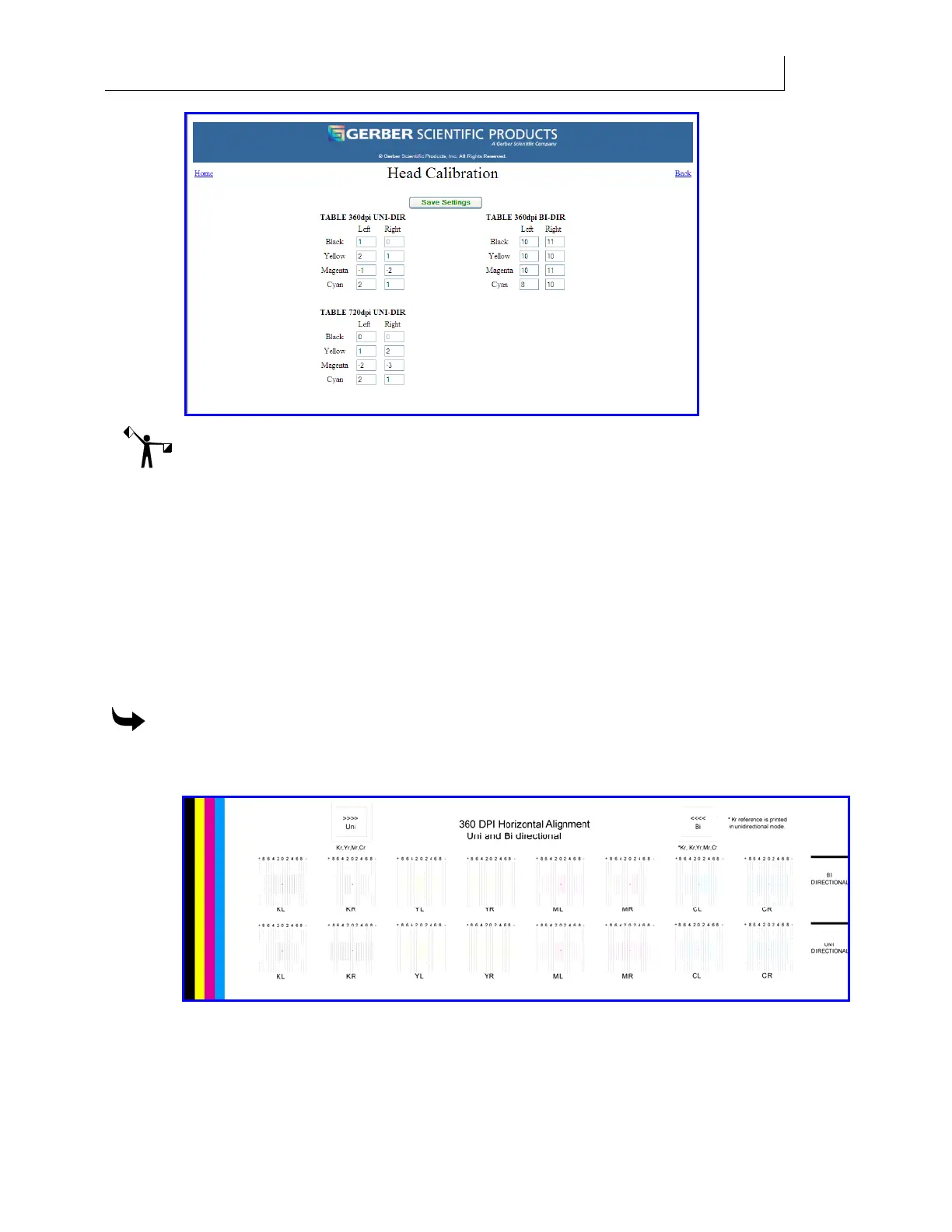

The image below is used for the bidirectional and unidirectional calibration. For this
particular calibration procedure please use the top row labeled BIDIRECTIONAL.
1 Evaluate the bidirectional section of the job only if the unidirectional job is within
specifications. If not, reprint the job after unidirectional calibration.
