CHAPTER 7
152
Gerber Solara ion Web Pages
4/29/10 Rev G
2 Examine the print. For each color, select the line (-10 through 10) that are best aligned
to the black line underneath it.
3 Open the web browser on the computer connected to the printer and enter the IP
address of the Gerber Solara ion printer to open the Gerber Solara ion Home web
page.

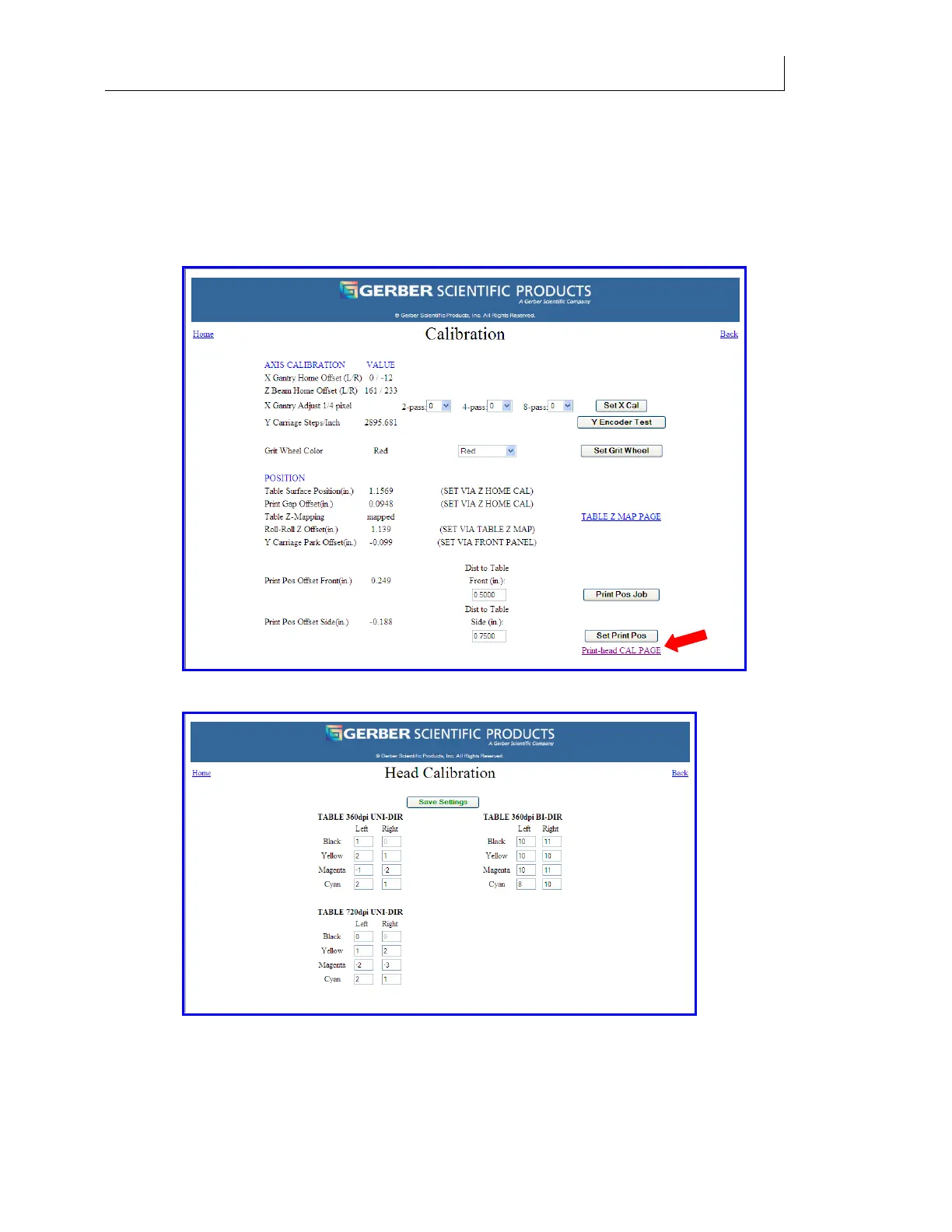

4 Click the Calibration link on the Home page to open the Calibration web page.
5 Click the Print head CAL PAGE button to open the Head Calibration web page.
6 Enter the corresponding number into the field in the BI-DIR section on the right side of
the web page. For example, if CL aligns best at –7, that number should be added to the
current values in the Cyan Left field. For instance if the current value in the field is -2,
To Next Page
