Gilera GP 800 i.e. - Lights List

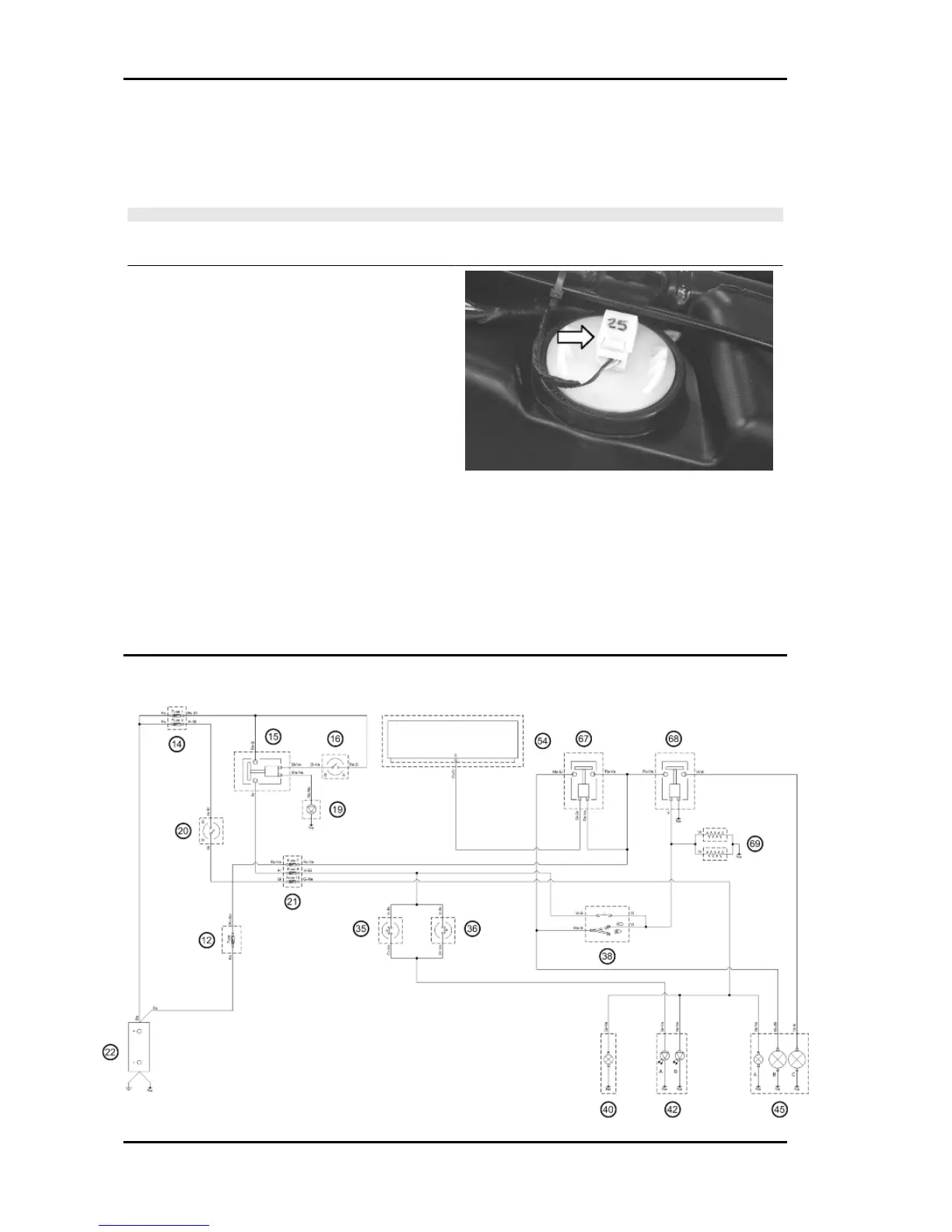

KEY
48. Instrument panel
71. Fuel level transmitter
WARNING
ALL CONTINUITY TESTS MUST BE CARRIED OUT WITH THE CORRESPONDING CONNECTORS
DISCONNECTED.
If faults are detected:
1) With a multimeter, check the resistance values
between the White-Green cable and the Black ca-
ble of the fuel level transmitter by moving the arm
with the float.
2) If the transmitter works, but the indication on the
multimeter is not exact, check the continuity of the
cable harness between transmitter and multime-
ter.
Electric characteristic
Full tank position
<= 5 Ohm
Empty tank position
98 ± 5 Ohm
Lights list
Electrical system GP 800 i.e.
ELE SYS - 42
