Gilera GP 800 i.e. - Muffler Tightening Torques; Nut Fixing Head - Exhaust Manifold

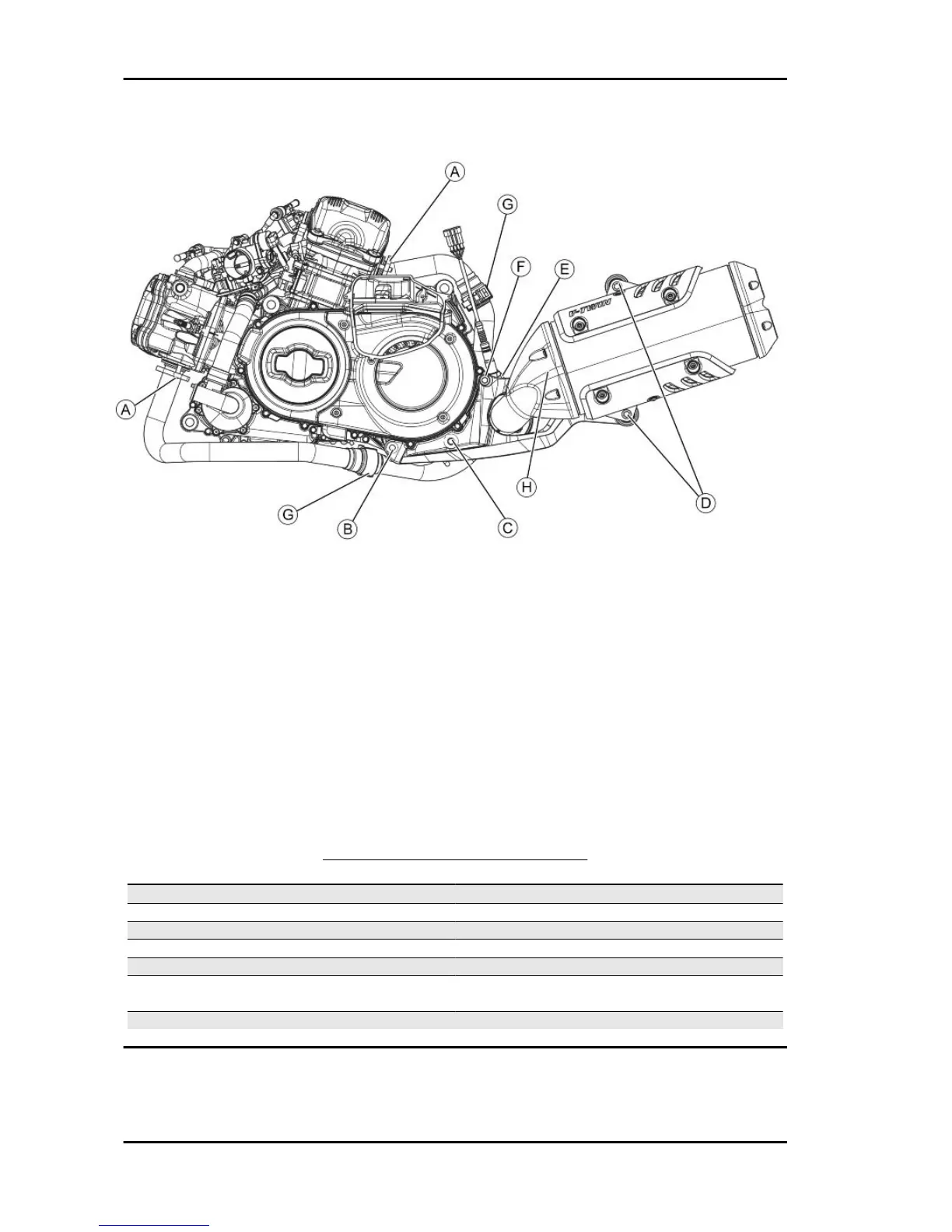

KEY:
A: Nut fixing head - exhaust manifold
B: Centre stand front bolt nut
C. Centre stand rear bolt nut
D: Screw fixing silencer - muffler support arm
E: Screw fixing catalytic converter - catalytic converter support
F: Screw fixing muffler support arm - engine
G: Manifold retainer clamp
H:Silencer fixing screw
- Follow the removal steps but in reverse order; be careful to tighten to the prescribed torques.
MUFFLER TIGHTENING TORQUES
Name Torque in Nm
Nut fixing head - exhaust manifold 16 ÷ 18
Centre stand front bolt nut 34 ÷ 39
Centre stand rear bolt nut 74 ÷ 81
Screw fixing silencer - muffler support arm 11
Silencer fixing screw 22
Screw fixing catalytic converter - catalytic convert-
er support
22 ÷ 24
Screw fixing muffler support arm - engine 24 ÷ 27
Engine from vehicle GP 800 i.e.
ENG VE - 8
