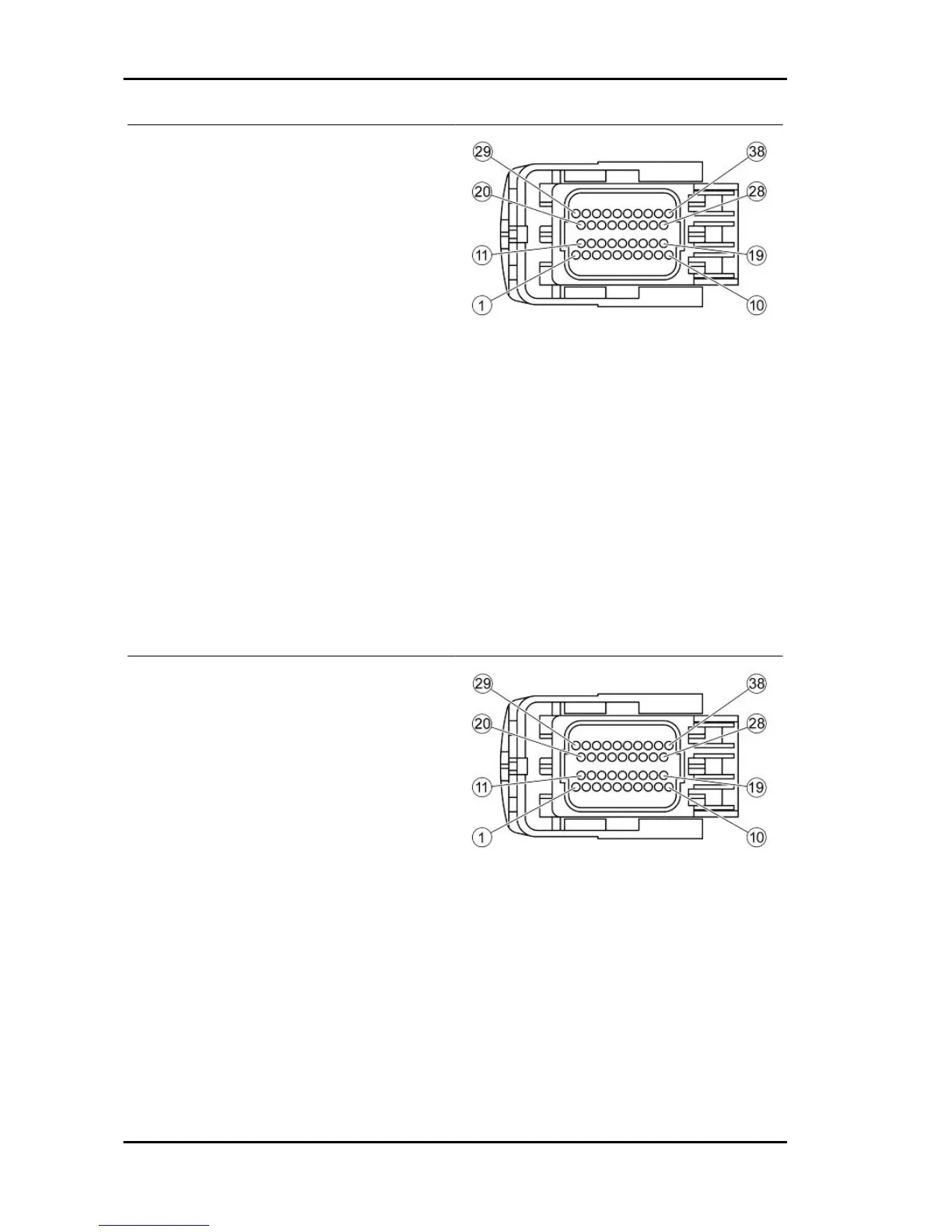

ENGINE CONTROL UNIT CONNECTOR
3. Throttle valve potentiometer (Orange-Sky Blue)
5. Engine temperature (Grey-Green)
9. Idle adjustment motor (Sky Blue-Yellow)
10. Cylinder 2 HV coil (Sky Blue)
13. Barometric pressure signal (Orange)
14. Air temperature sensor (White-Grey)
17. Idle adjustment motor (Sky Blue-Red)
18. Idle adjustment motor (Sky Blue-Black)
19. Idle adjustment motor (Orange-Red)
20. Sensor negative (Sky Blue-Green)
22. Sensor positive (Red-Blue)
25. Engine rpm sensor (White)
28. Cylinder 1 injector (Red-Yellow)
29.Throttle valve potentiometer (Grey-Black)
32.Throttle valve potentiometer (Brown-Yellow)
34. Engine rpm sensor shield (Black)
35. Engine rpm sensor (Red)
37. Cylinder 2 injector (Blue)
38. Cylinder 1 HV coil (Pink-Black)
VEHICLE CONTROL UNIT CONNECTOR
1. Start-up remote control switch relay (Orange-
White)
4.Battery positive (White-Red)
6. Injection load relay (Black-Purple)
7. Immobilizer decoder (Orange)
8. Low-beam light relay (Yellow-Grey)
9. Rpm indicator (Brown)
11. Lambda probe (Purple)
13. Injection telltale light (Brown-Black)
14. Electric fan relay (Blue-Yellow)
16. Diagnostics socket (Purple-White)
17. Live positive (White-Black)
18. Engine disabled warning light (Sky Blue-Yel-
low)
22. Lambda probe (White-Green)
23. Stop lights (Grey-Green)
Electrical system GP 800 i.e.
ELE SYS - 54
