Gilera GP 800 i.e. - Engine Crankcase Coupling Screws (M6)

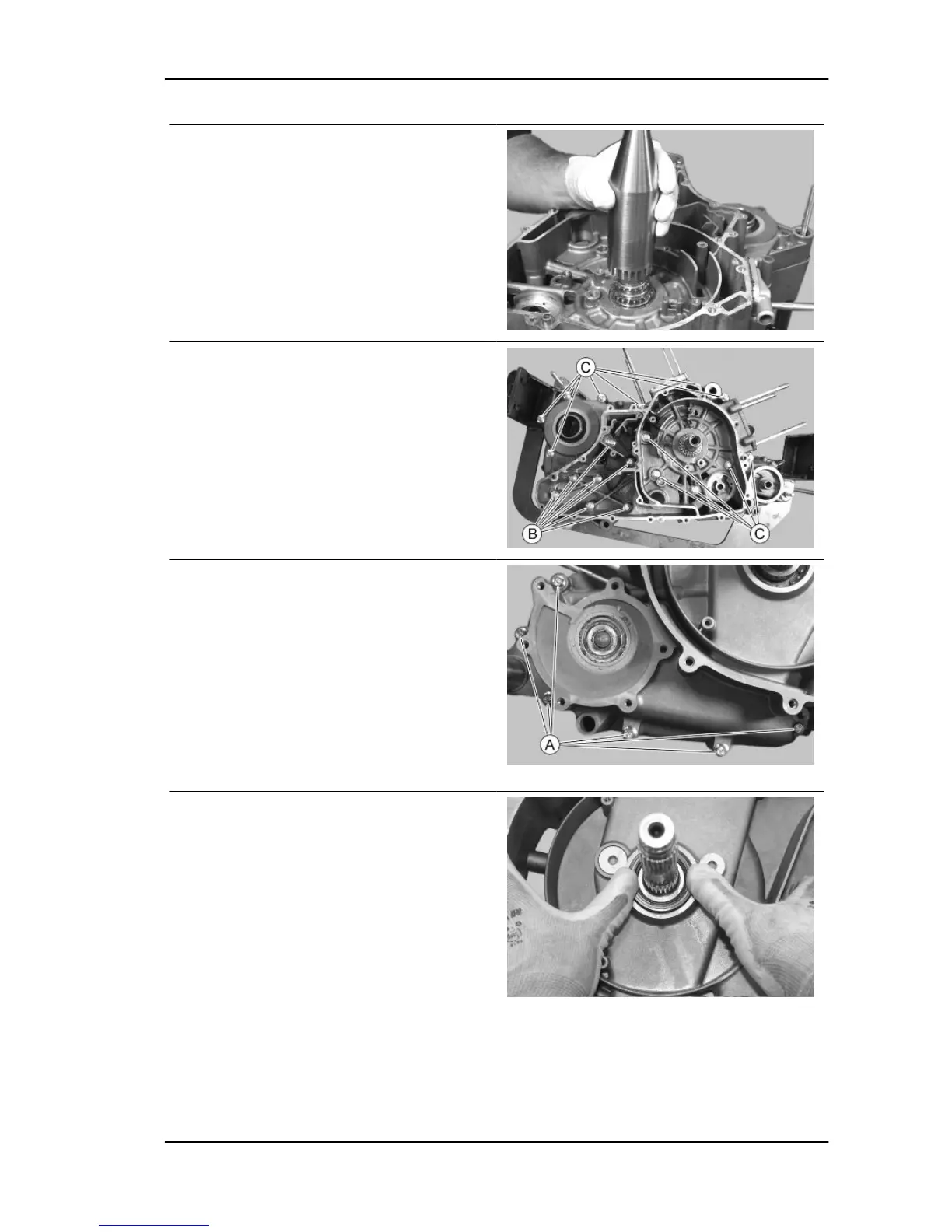

- Remove the tip.
Specific tooling
020664Y Flywheel side crankshaft fitting tip
- Tighten the seven screws «B» with the copper
washers as far as they will go.
- Tighten the twelve screws «C» with the washers
as far as they will go.
- Tighten to the prescribed torques.
Locking torques (N*m)
Engine crankcase coupling screws (M8) 25 ÷
28
- Fit the centring bushings, the washers and screw
the fixing nuts to the support.
- Turn the support so as to operate on the trans-
mission side.
- Screw the six screws «A» with the washers and
tighten to the prescribed torque.
Locking torques (N*m)
Engine crankcase coupling screws (M6) 11 ÷
13
- Fit a new oil seal in the transmission-side crank-
case half on the driving pulley shaft.
- Fit the oil seal manually being careful that the in-
ternal lips are correctly placed on the crankshaft.
GP 800 i.e. Engine
ENG - 81
