End gear shaft

FITTING

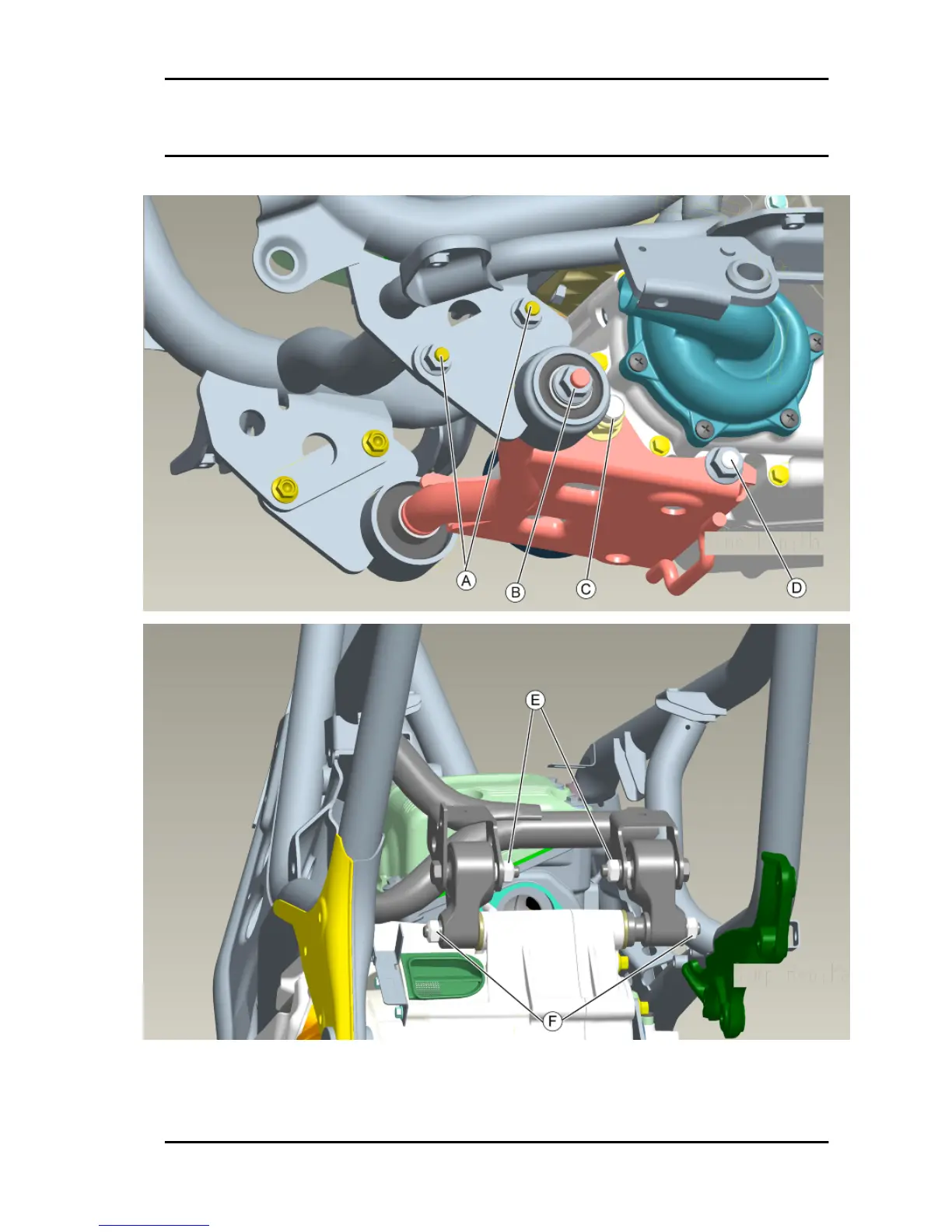

KEY:

A: Nut fixing silent-block plate - chassis

B: Nut fixing silent-block plate

GP 800 i.e. Engine from vehicle

ENG VE - 15
