This section è is devoted to the description of the braking system components.

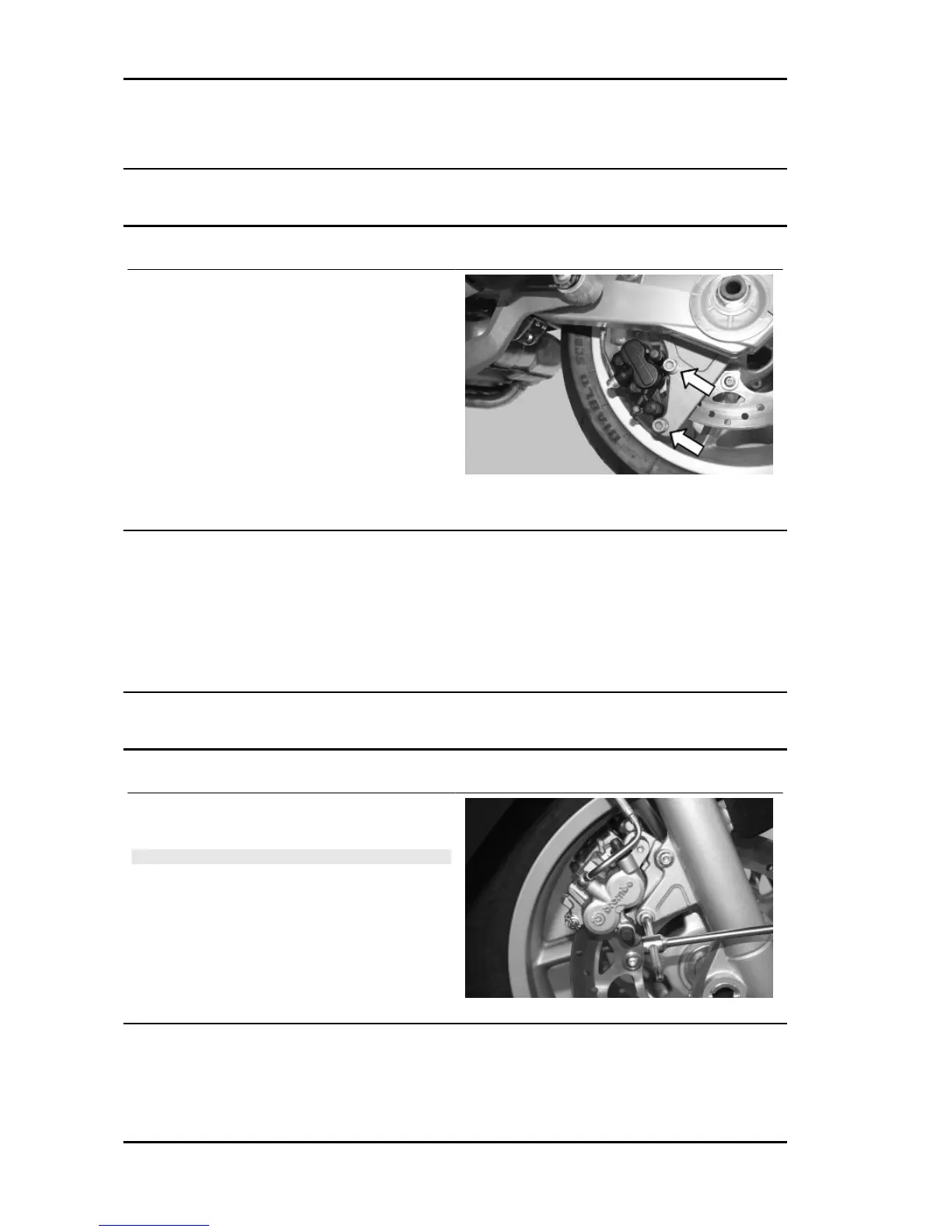

Rear brake calliper
Removal
- Remove the two retainers fixing the brake calliper
to the bracket.
- Remove the pads.
Refitting
To refit, carry out the removal operations but in reverse order. Once these operations are completed,
purge the braking system.
Locking torques (N*m)
Screws fixing the calliper to the supporting plate 20 ÷ 25
Front brake calliper
Removal
- Remove the two retainers fixing the brake calliper
to the fork.
N.B.
SHOULD THE BRAKE CALLIPER BE RE-
PLACED, BEFORE REMOVING THE FITTINGS
FIXING THE CALLIPER TO THE SUPPORTING
BRACKET, FIRST LOOSEN THE OIL HOSE FIT-
TING AFTER HAVING EMPTIED THE SYSTEM
OF THE CIRCUIT BEING INSPECTED.
Braking system GP 800 i.e.
BRAK SYS - 2
