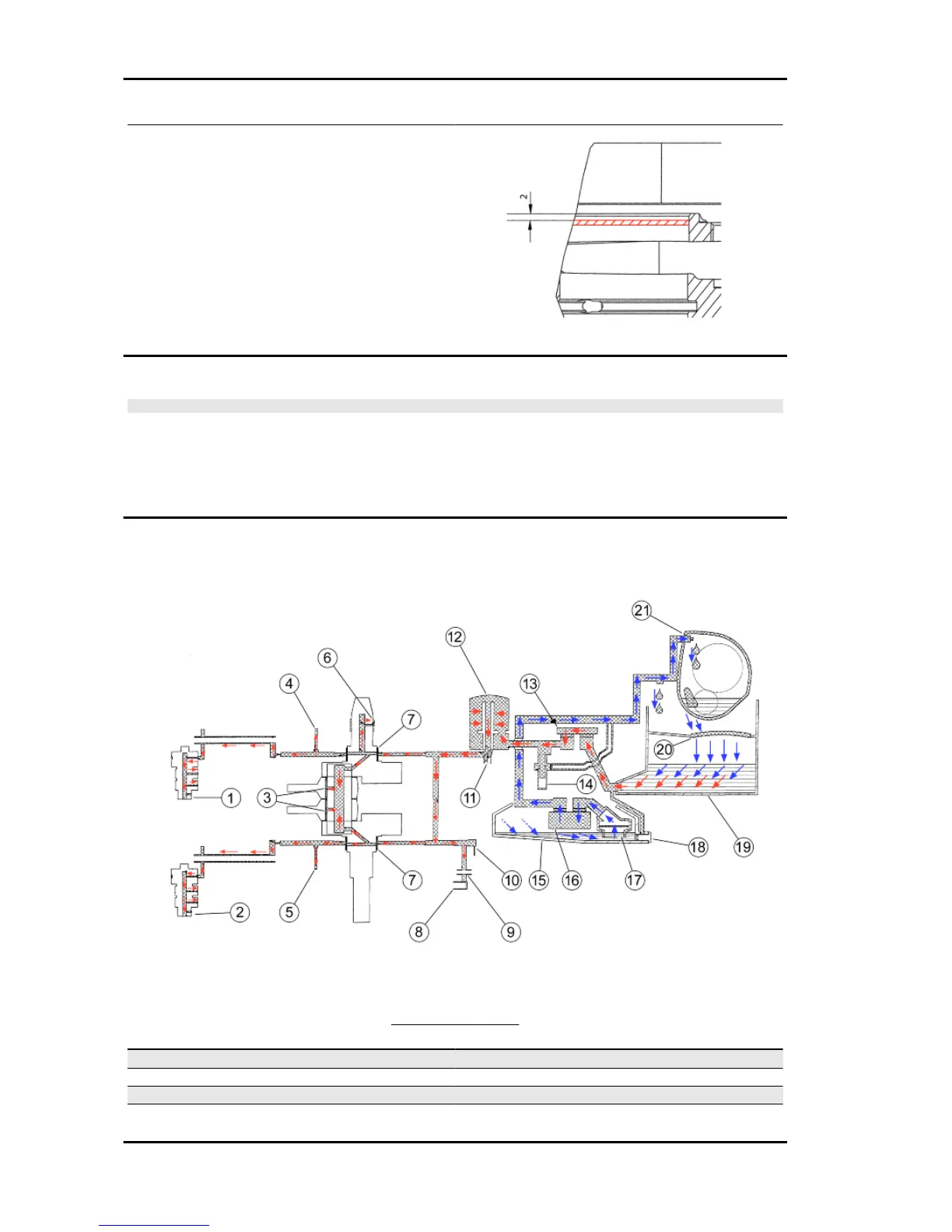

- With a pipe of the indicated size (inside Ø: 36.5
mm - outside Ø: 49.5 mm) set the oil seal at the
indicated distance; with a gauge check the driving
depth following the indications described in the fig-
ure.
Lubrication
N.B.
REFER TO THE SPECIFICATIONS CHAPTER FOR THE LUBRICATION SYSTEM SPECIFICA-
TIONS, .
See also
Engine
Conceptual diagrams
LUBRICATION CIRCUIT
Specification Desc./Quantity
1 FRONT HEAD CAMSHAFTS
2 REAR HEAD CAMSHAFTS
3 CONNECTING ROD BUSHINGS
4 FRONT PISTON LUBRICATION JET
Engine GP 800 i.e.
ENG - 82
