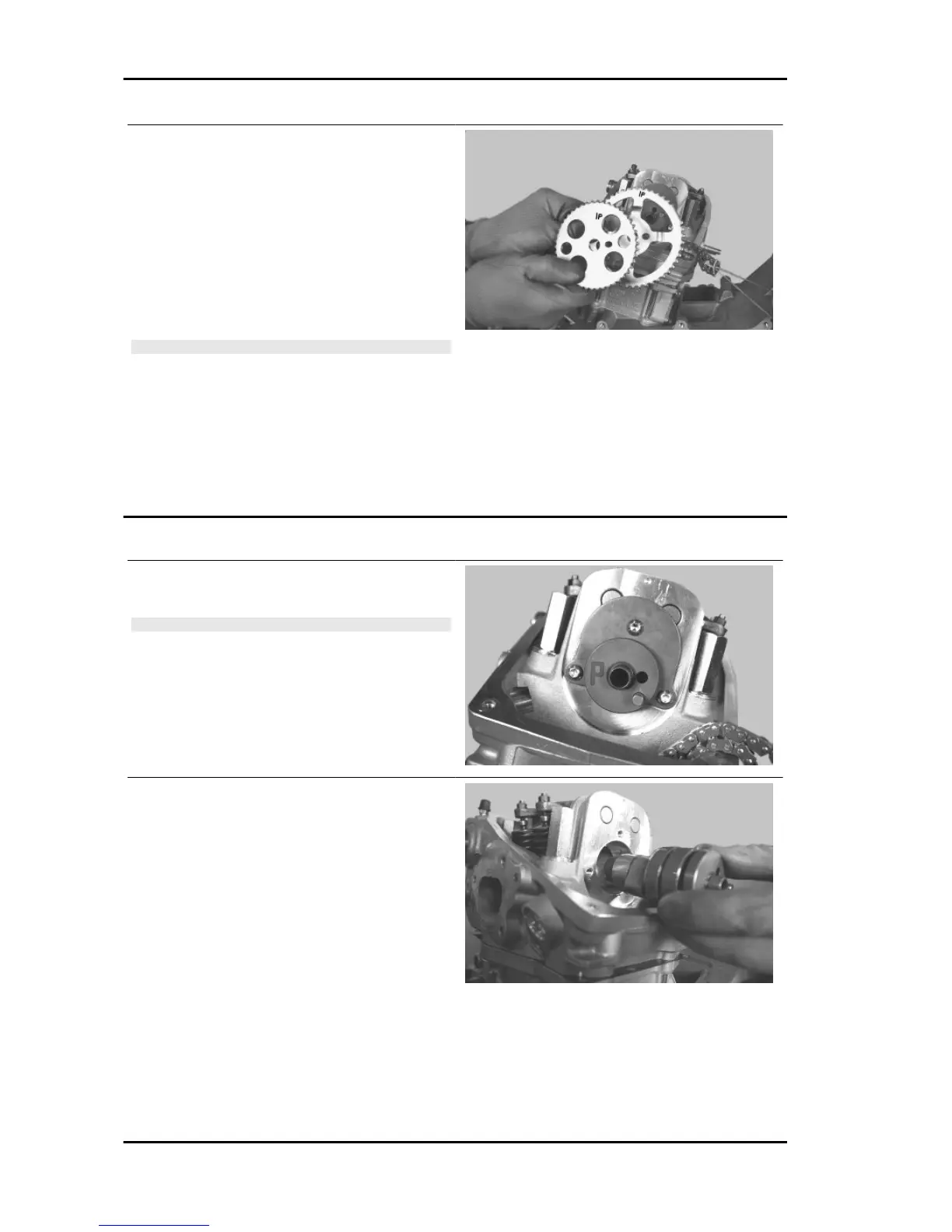

Gilera GP 800 i.e. - Removing the Cam Shaft

- Lock the timing system gear with the specific tool,
undo the central fixing screw and collect the wash-
er.
- Release the chain from the sprocket and be care-
ful that it does not fall inside the transmission
housing.
- Remove the timing system gear and the tone
wheel from the camshaft.
CAUTION
THE TONE WHEEL IS ONLY ON THE REAR
CYLINDER. IN THE FRONT CYLINDER IT IS RE-
PLACED BY A SPACER.
Specific tooling
020565Y Flywheel lock calliper spanner
- Repeat the operations for the front cylinder timing system gear.
Removing the cam shaft
- Unscrew the 3 fastening screws and remove
camshaft retaining bracket.
N.B.
REMOVING THE FASTENING SCREWS MAY
BE DIFFICULT. BE CAREFUL NOT TO DAM-
AGE THE INSIDE HEXAGON. IF NECESSARY,
SEPARATE THE THREADS IN ADVANCE.
- Remove the cam shaft.
