Specification Desc./Quantity
Quantity: 2
Fuses

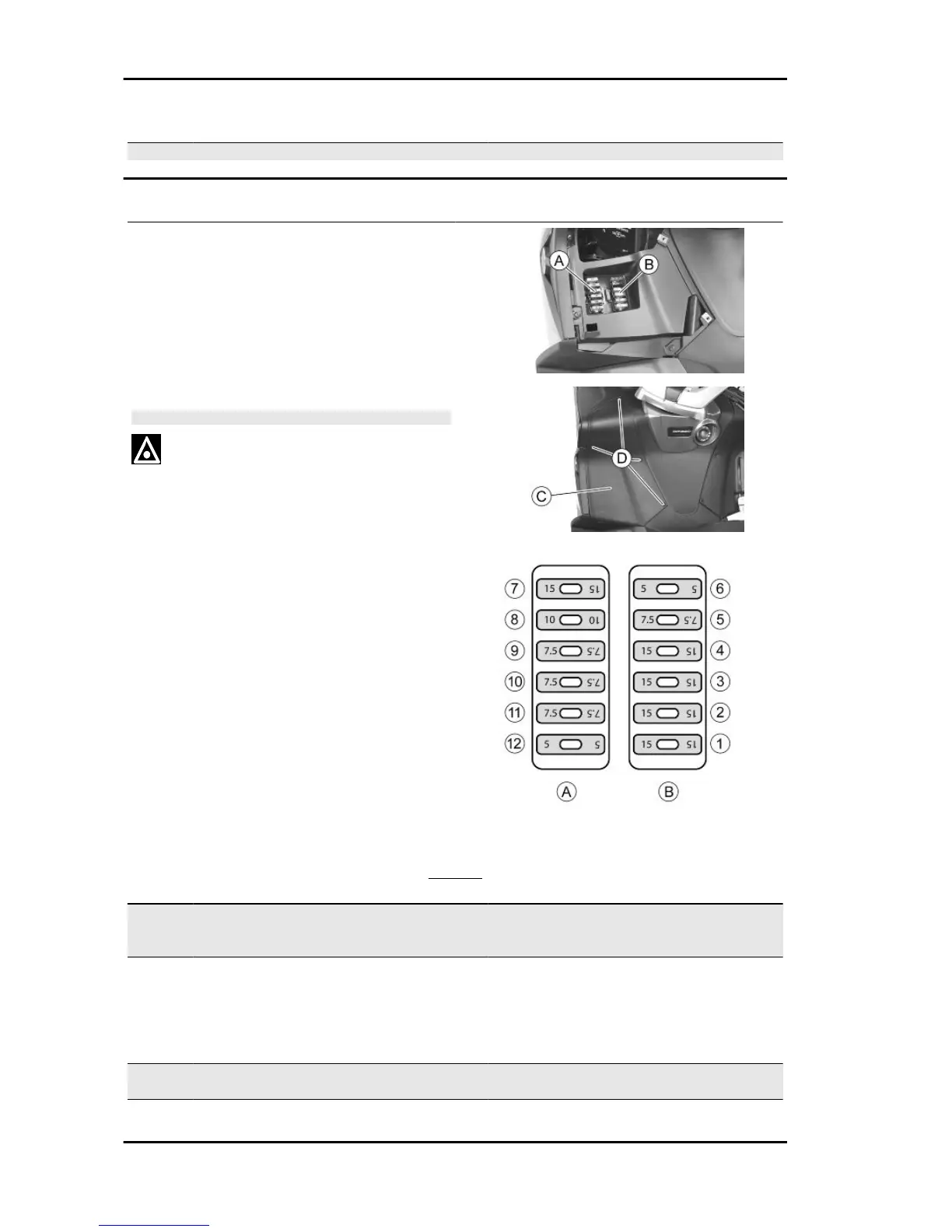

The electrical system has twelve fuses distributed
in two fuse boxes «A» and «B» to protect the dif-
ferent installation circuits. They are placed inside
the battery compartment and can be accessed by
undoing the four screws «D» and removing the
plastic cover «C». The chart shows the position
and characteristics of the fuses in the vehicle.
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND
AND SOLVE THE FAILURE THAT CAUSED IT
TO BLOW. NEVER TRY TO REPLACE THE
FUSE WITH ANY OTHER MATERIAL (E.G., A
PIECE OF ELECTRIC WIRE).
FUSES
Specification Desc./Quantity
1 Fuse No. 1 Capacity: 15A
Protected circuits:
Live: Main relay, fuses No. 8-9 (via relay).
2 Fuse No. 2 Capacity: 15A
Protected circuits: Helmet compartment
lightning, plug socket, Pre-installation for an-
titheft device, saddle opening receiver, start-
up maintenance relay (via relay), start-up
remote control switch (via relay).
3 Fuse No. 3 Capacity: 15A
Protected circuits: Injection load (via relay).
4 Fuse No. 4 Capacity: 15A
Electrical system GP 800 i.e.
ELE SYS - 46
