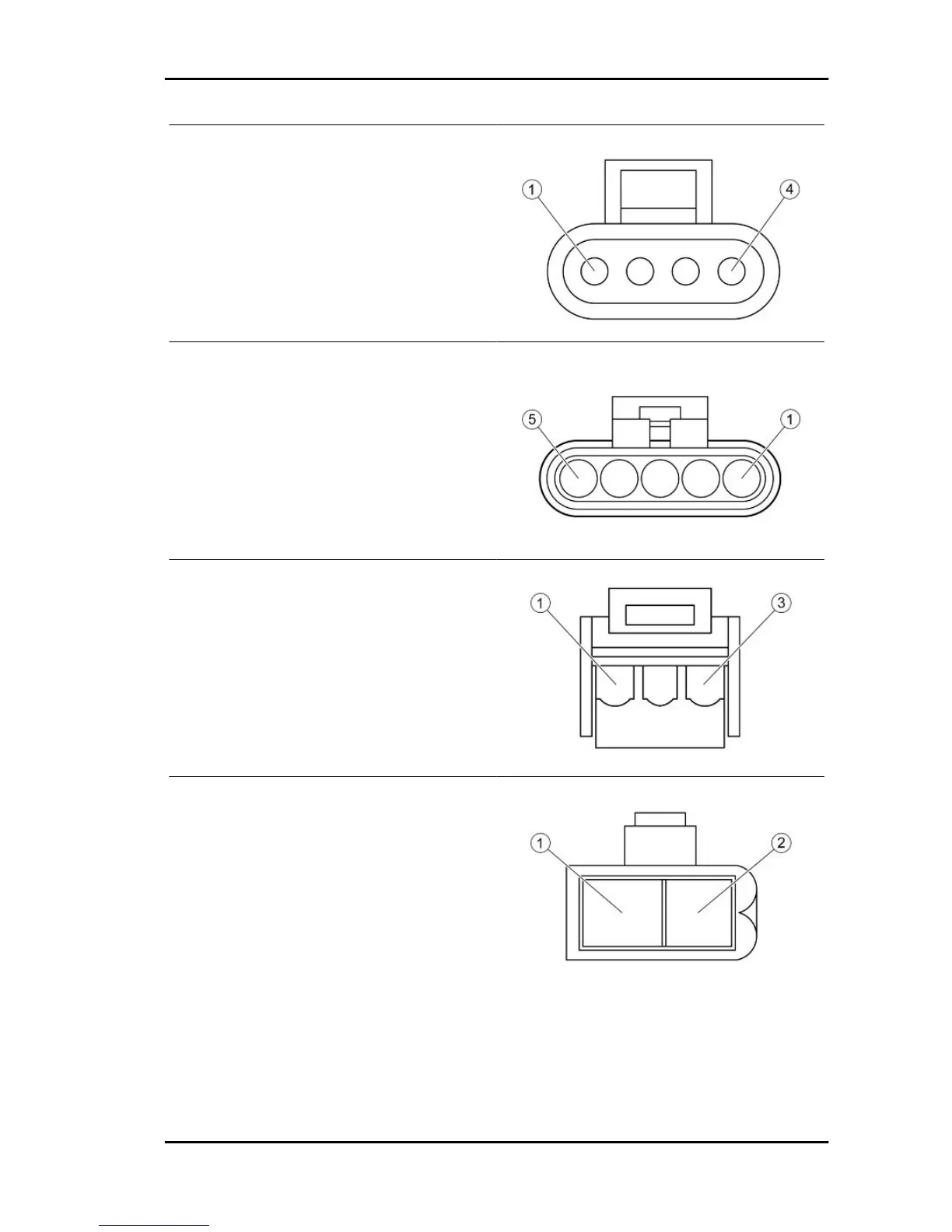

Gilera GP 800 i.e. - Fuel Level Transmitter Connector; Fuel Pump Connector; Idle Adjustment Motor Connector; Stand Switch Connector

IDLE ADJUSTMENT MOTOR CONNECTOR
1. Control unit (Sky Blue-Red)
2. Control unit (Orange-Red)
3. Control unit (Sky Blue-Yellow)
4. Control unit (Sky Blue-Black)
FUEL PUMP CONNECTOR
2. Ground (Black)
5. Injection load relay (Black-Green)
FUEL LEVEL TRANSMITTER CONNECTOR
2. Ground (Black)
3. Instrument panel (White-Green)
STAND SWITCH CONNECTOR
1. Ground (Black)
2. Control unit (White-Green)
GP 800 i.e. Electrical system
ELE SYS - 59
