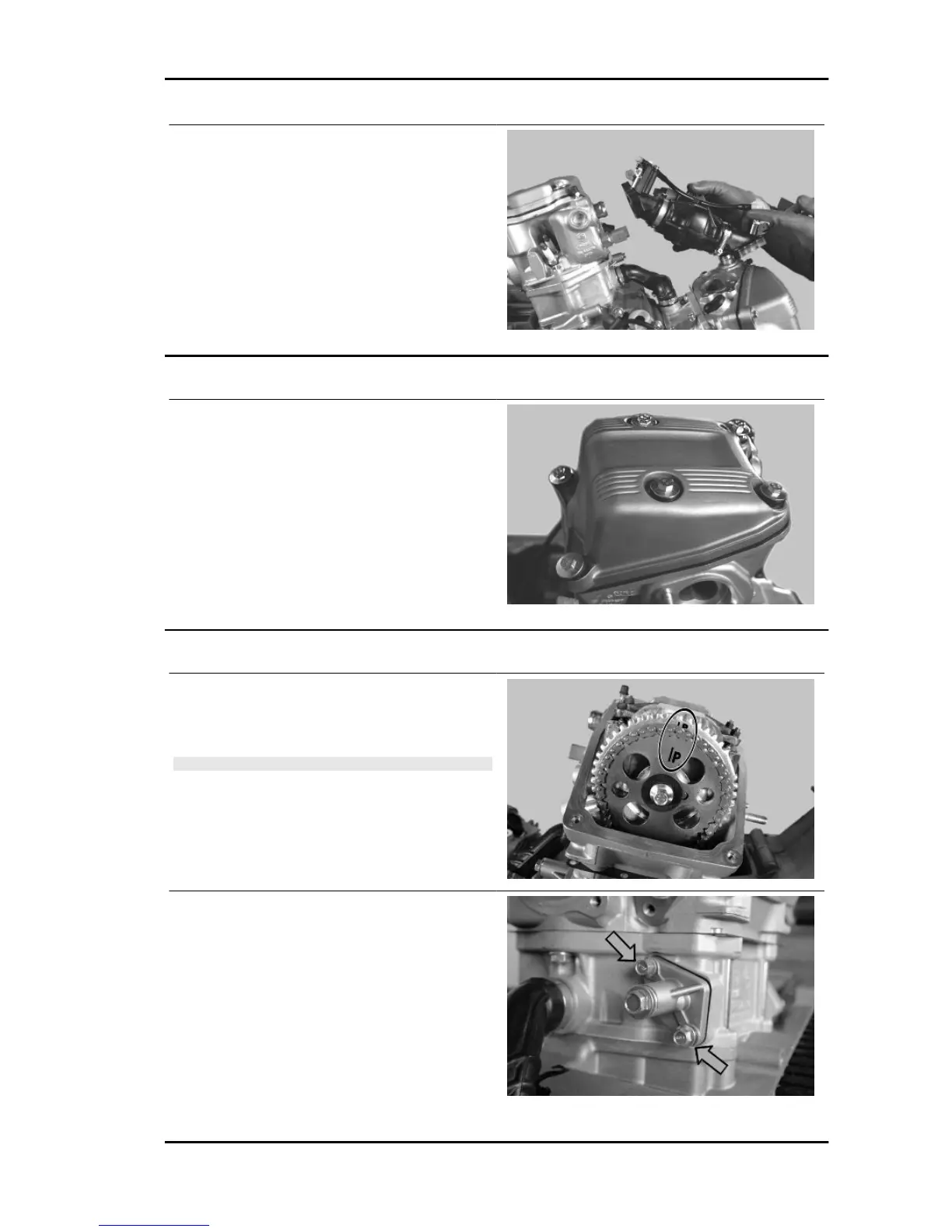

- Remove the inlet manifold.
Removing the rocker-arms cover
- Loosen the 6 special screws with stop and the
relevant rubber gaskets.
- Remove the tappet cover with relevant gasket.
Removing the timing system drive
- As indicated in the photograph, align the refer-
ences on the timing system gear of the rear cylin-
der with the reference on the cam cap valves.
N.B.
PLACING THE ENGINE AS INDICATED, IT IS IN
THE COMBUSTION PHASE AND ALL THE
VALVES ARE CLOSED. THIS HELPS FITTING-
REMOVAL OPERATIONS.
- Loosen the central screw on the tensioner.
- Unscrew the two retainers indicated in the pho-
tograph and remove the tensioner with the rele-
vant gasket.
GP 800 i.e. Engine
ENG - 47
