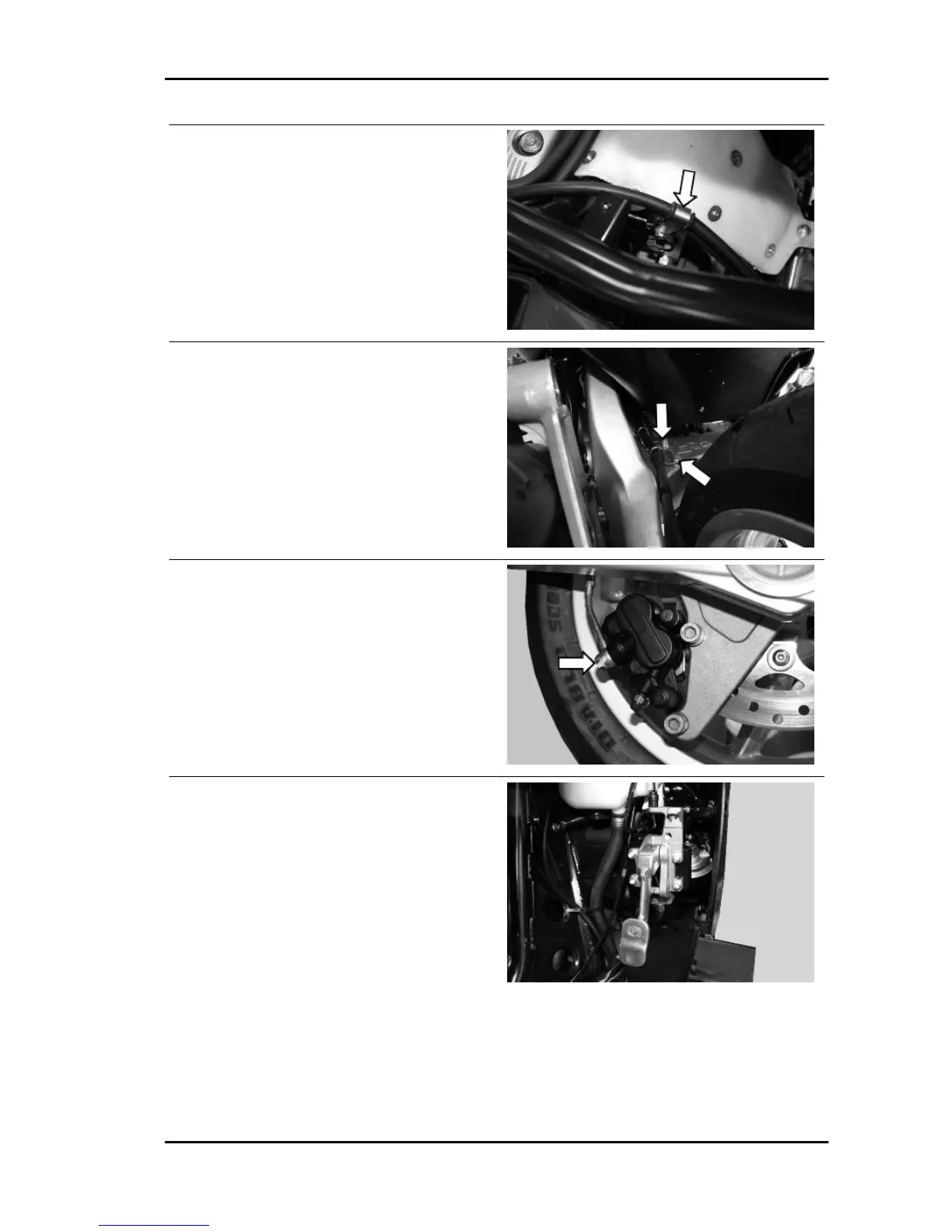

Gilera GP 800 i.e. - Parking Brake Transmission Fitting

- Fasten the pipe to the clip.
- Fasten the pipe to the rear fork with the two clips.
Locking torques (N*m)
Nut fixing rear brake pipe retaining clip 11 ÷ 13
- Fix the brake pipe coupling to the brake calliper.
Locking torques (N*m)
Brake pipe / rear brake calliper coupling 20 ÷
25
PARKING BRAKE TRANSMISSION FITTING
- Fit the transmission cable of the control lever and
thread the transmission sheath to the other side of
the vehicle as shown in the figure.
