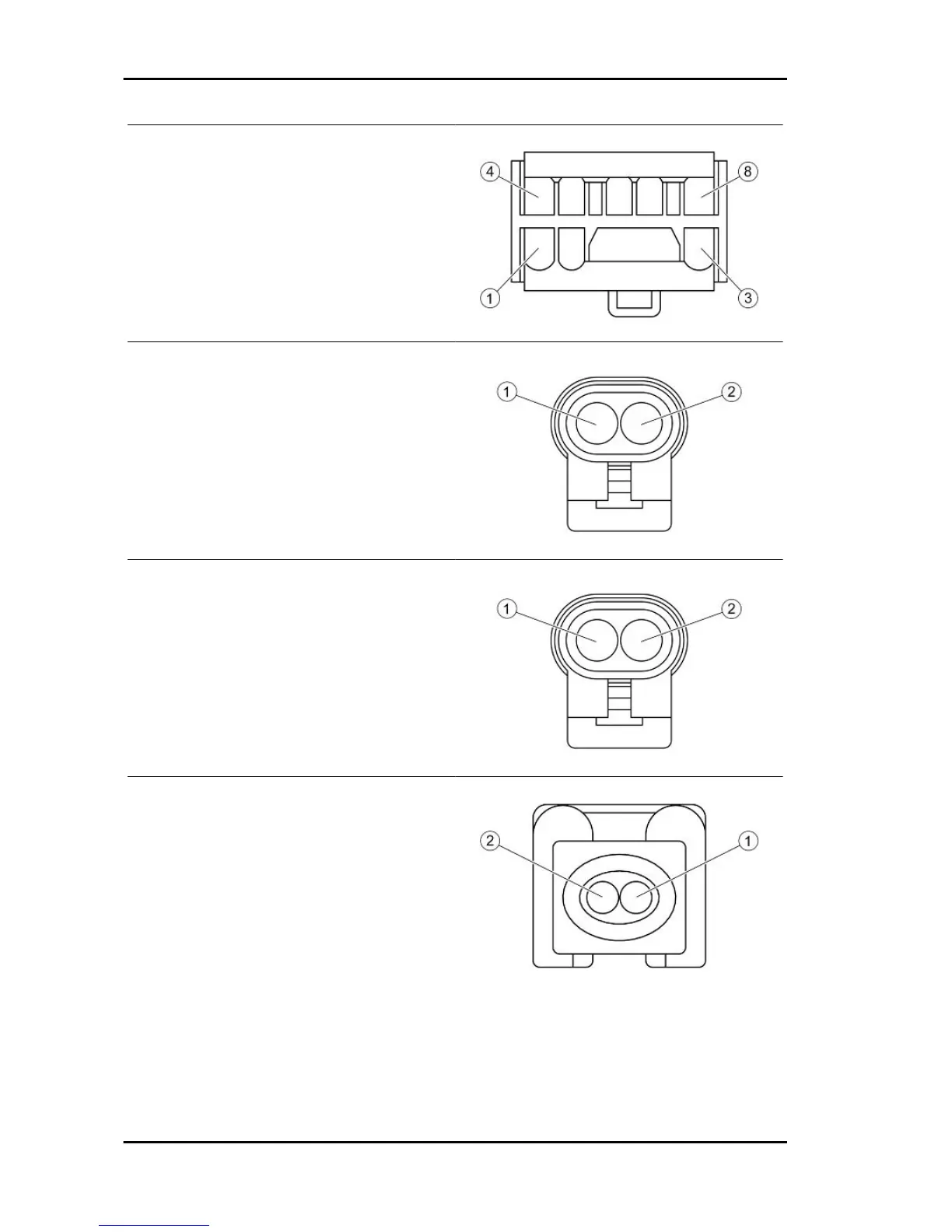

Gilera GP 800 i.e. - Front Cylinder HV Coil Connector; Immobilizer Decoder Connector; Rear Cylinder HV Coil Connector; Rear Cylinder Injector Connector

IMMOBILIZER DECODER CONNECTOR
2. Immobilizer warning light (Red-Green)
3. Battery positive (White-Red)
4. Ground (Black)
6. Control unit (Orange)
8. Live positive (White-Black)
REAR CYLINDER HV COIL CONNECTOR
1. Injection load relay (Black-Green)
2. Control unit (Pink-Black)
FRONT CYLINDER HV COIL CONNECTOR
1. Injection load relay (Black-Green)
2. Control unit (Sky Blue)
REAR CYLINDER INJECTOR CONNECTOR
1. Control unit (Red-Yellow)
2. Injection load relay (Black-Green)
Electrical system GP 800 i.e.
ELE SYS - 56
