Gilera GP 800 i.e. - Inspecting the Clutch Spring; Refitting the Clutch

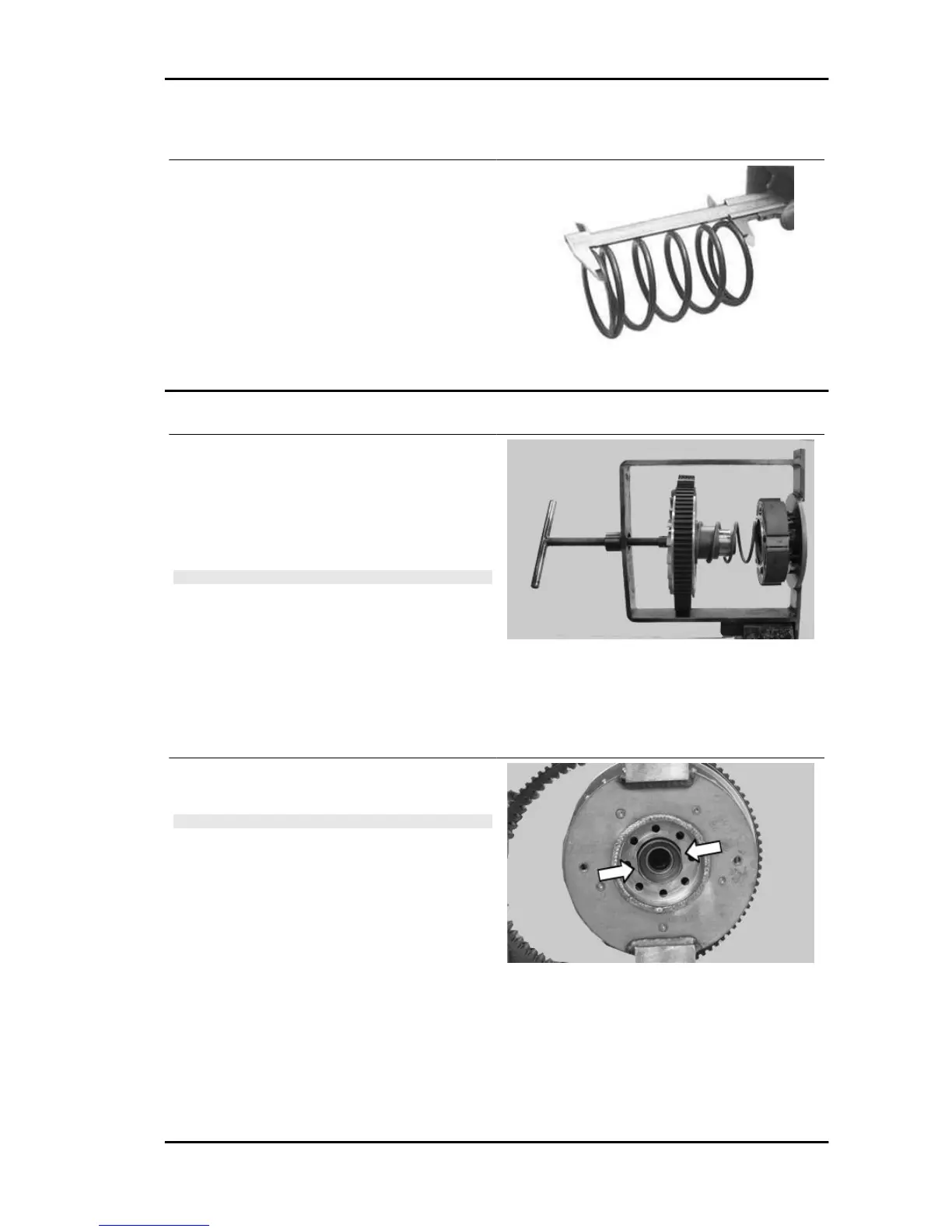

Inspecting the clutch spring
- Measure the length of the movable driven half-
pulley spring while it is not loaded.
Characteristic
Standard length:
190.2 mm
Admissible limit after use:
182 mm
Refitting the clutch
- Prepare the specific tool as per the removal
phase.
- Preassemble the driven pulley unit.
- Insert the driven pulley unit, the spring with
sheath and clutch into the tool.
CAUTION
WHILE PERFORMING THESE OPERATIONS,
AVOID CONTACT WITH OIL OR GREASE
WHICH COULD MAKE THE FAYING SURFA-
CES BETWEEN THE BELT AND THE HALF-
PULLEYS SLIPPERY.
Specific tooling
020659Y Tool to remove clutch and replace
belt
- Compress the spring and insert the clutch on the
driven pulley bushing.
N.B.
BE CAREFUL NOT TO DAMAGE THE SHEATH
OR THE BUSHING THREADED END.
GP 800 i.e. Engine
ENG - 13
