Gilera GP 800 i.e. - Rear Brake Pipe Fitting

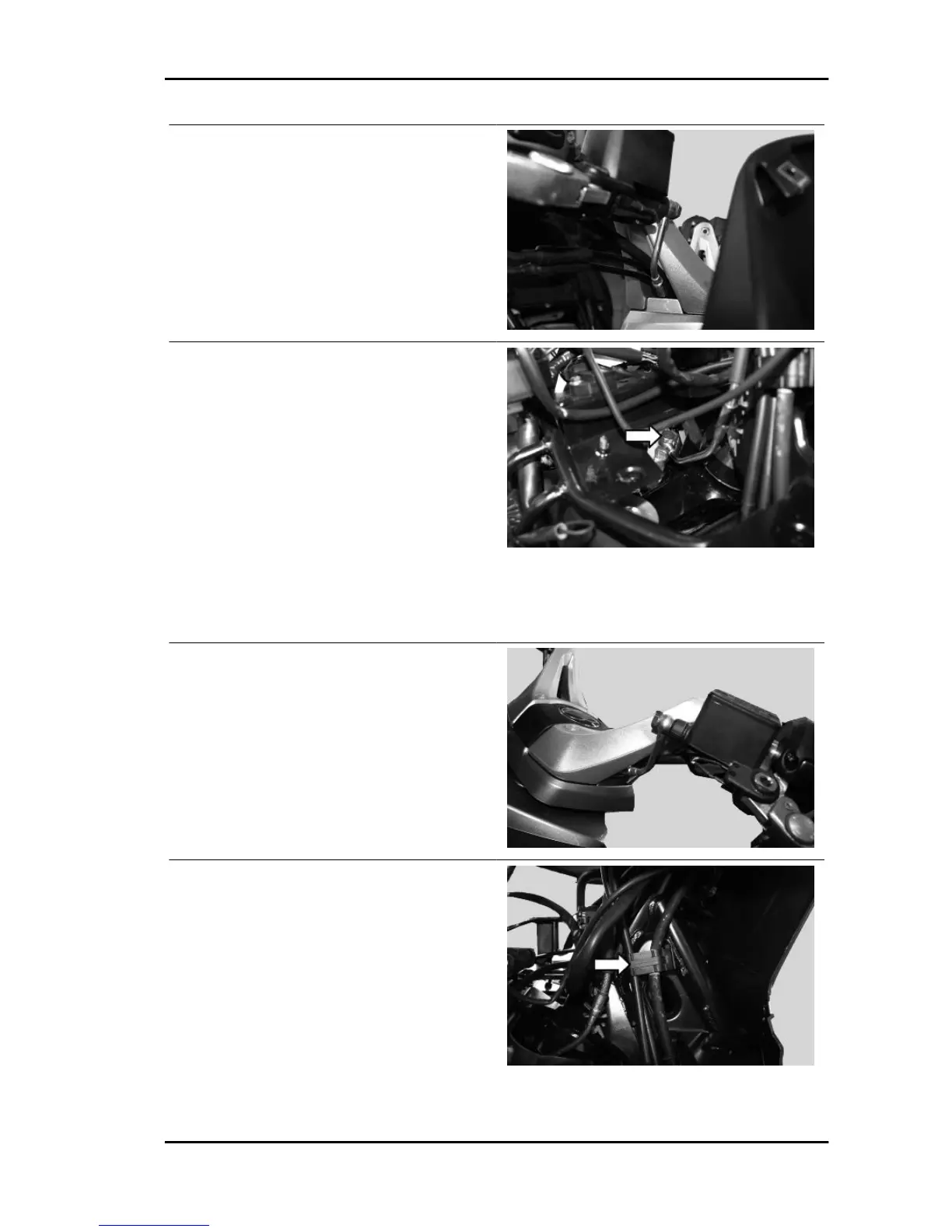

- Remove the front shield.
- Thread the pipes through the right half-handlebar
and lay it to the vehicle left side.
- Fix the coupling to the brake pump.
- Fix the coupling to the three-way union.
Locking torques (N*m)
Brake pipes / three-way union coupling 18 ÷
23 Brake pipes / brake pump coupling 16 ÷ 20
REAR BRAKE PIPE FITTING
To reach the rear brake pipes, thread the pipes through the left half-handlebar and afterwards fix the
coupling to the brake pump.
- Thread the pipes through the left half-handlebar
and afterwards fix the coupling to the brake pump.
- Fasten the pipe to the clip.
