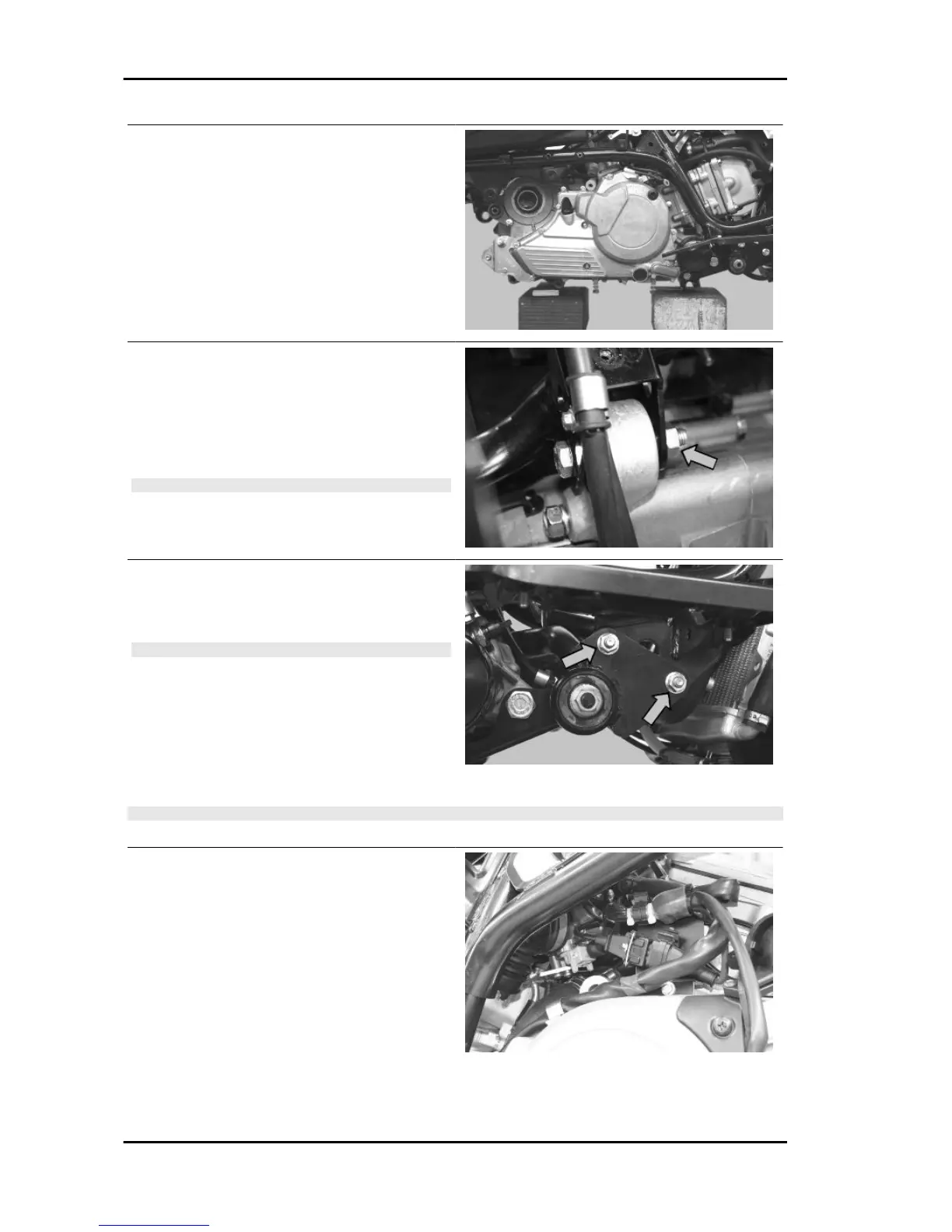

- Lower the vehicle so as to rest the engine in a
horizontal position on the plates previously placed.
- Loosen the six fuel tank retainers to the chassis.
- Unscrew the nut indicated from both sides of the
engine and remove the fixing pin. Be particularly
careful when detaching the right half-tank to let the
pin come out.
CAUTION
THE ENGINE IS NOW FREE FROM ITS REAR
RETAINERS.
- Release the engine from the front retainers, un-
screwing from both sides the nuts indicated; re-
move the two screws from the internal part.
CAUTION
THE ENGINE IS NOW FREE FROM ITS RETAIN-
ERS AND DISCONNECTED FROM THE CHAS-
SIS.
- Partially lift the rear section of the chassis so as to free it from the engine.
N.B.
GUIDE THE CHASSIS SO AS TO RELEASE IT FROM THE RIGHT-SIDE FRONT HEAD COVER.
- Disconnect the following connectors: engine
revs, Stepper motor, TPS, intake air temperature
and coolant temperature sensor.
Engine from vehicle GP 800 i.e.
