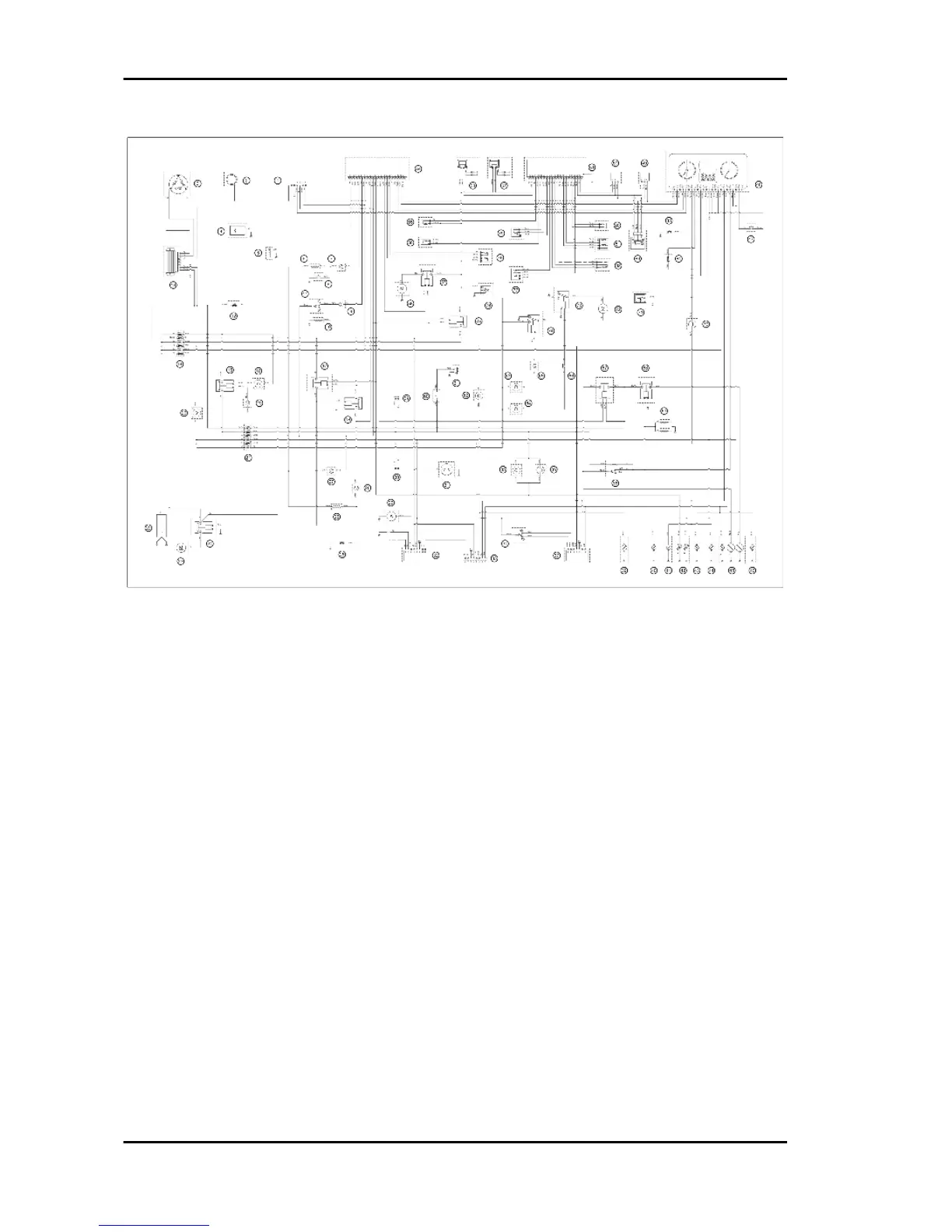

Gilera GP 800 i.e. - System Overview and Components

1. Immobilizer decoder
2. Immobilizer aerial
3. Magneto flywheel
4. Roll-over sensor
5. Diagnostics socket
6. Resistance 120 Ohm - 2W
7. 1A diode
8.Stand button
9. 1A diode
10. Resistance 120 Ohm - 2W
11. Engine stop switch
12. 40A fuse
13. Voltage regulator
14. Main fuses
15. Main relay
16. Key switch contacts
17. Start-up remote control switch relay
18. Start-up maintenance relay
19. 1A diode
20. Key switch contacts
Electrical system GP 800 i.e.
ELE SYS - 2
