P a g e | 157

UCM630X Series User Manual

Version 1.0.2.25

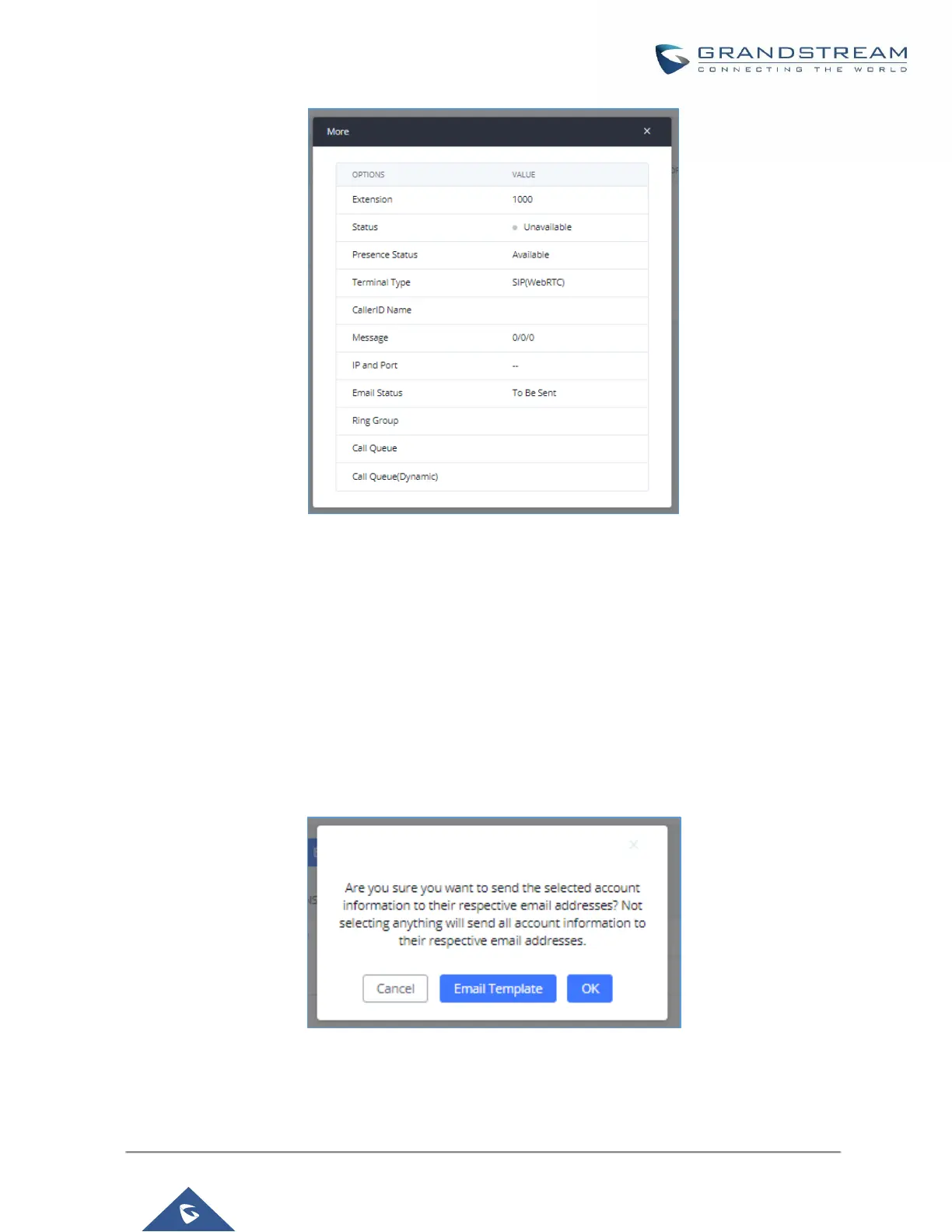

Figure 83: Extension Details

E-mail Notification

Once the extensions are created with Email addresses, the PBX administrator can click on button “E-mail

Notification” to send the account registration and configuration information to the user. Please make sure Email

setting under Web GUISystem SettingsEmail Settings is properly configured and tested on the UCM630X

before using “E-mail Notification”.

When click on ”More” > “E-mail Notification” button, the following message will be prompted in the web page.

Click on OK to confirm sending the account information to all users’ Email addresses.

Figure 84: E-mail Notification - Prompt Information
